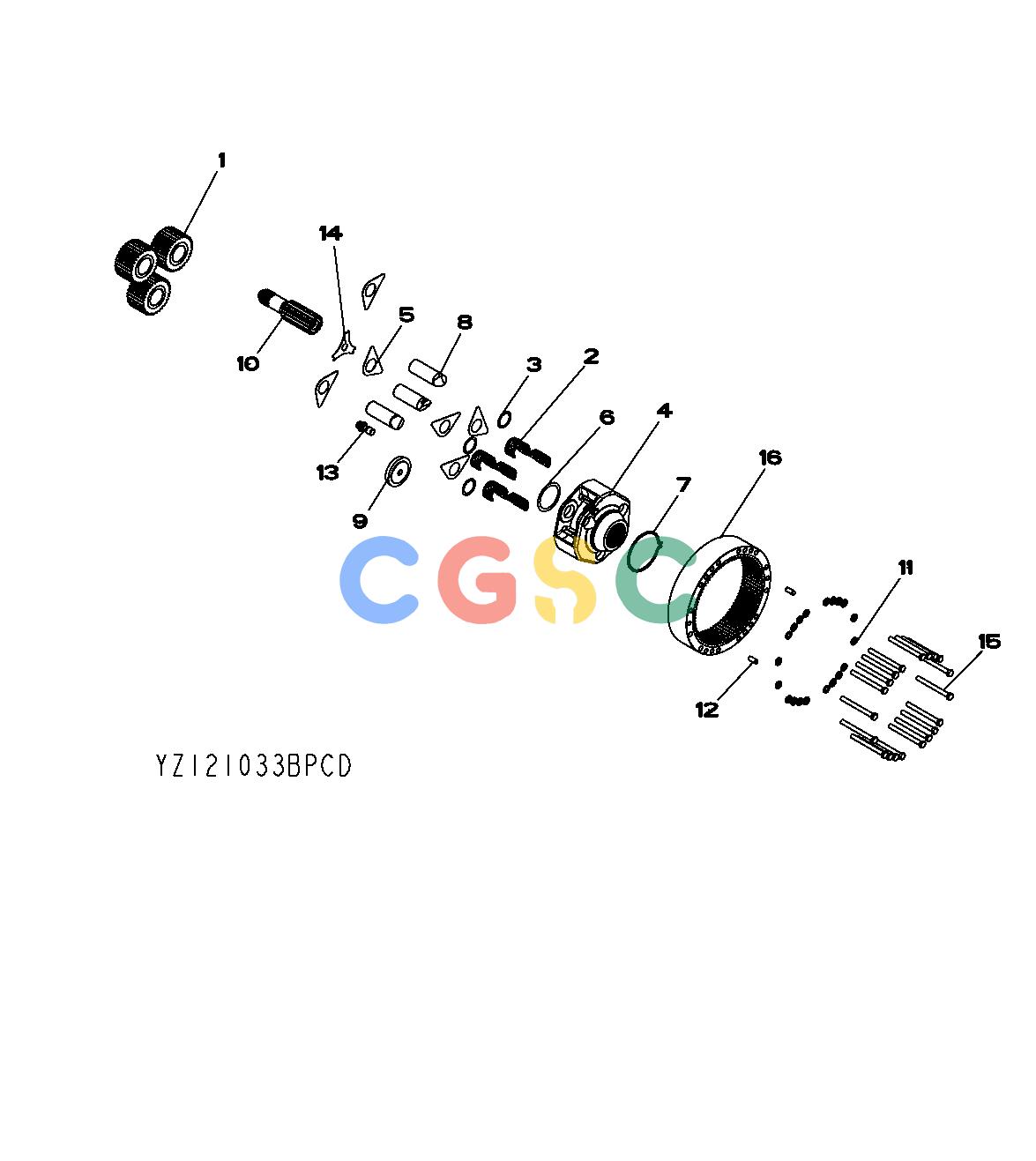

约翰迪尔零件查询643K - FELLER BUNCHER YZ121033 Final Drive; Front, Rear Heavy DutyEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
747 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R108997
|
[1] |
Pinion
|
|
| 2. |
R63575
|
[48] |
Needle Roller
|
|
| 3. |
R71929
|
[1] |
Spacer
|
|
| 4. |
R109090
|
[1] |
Planet Pinion Carrier
|
|
| 5. |
R112079
|
[6] |
Thrust Washer
|
|
| 6. |
R52389
|
[1] |
Shim
|
|
| 7. |
R72430
|
[1] |
Snap Ring
|
|
| 8. |
R77664
|
[3] |
Pinion Shaft
|
|
| 9. |
R94546
|
[1] |
Washer
|
|
| 10. |
YZ121024
|
[2] |
Pinion Shaft
|
|
| 11. |
R135543
|
[40] |
Washer
|
|
| 12. |
R54380
|
[4] |
Dowel Pin
|
|
| 13. |
YZ120470
|
[2] |
Screw
|
|
| 14. |
YZ121120
|
[2] |
Lock Plate
|
|
| 15. |
19M8677
|
[40] |
Cap Screw
|
|
