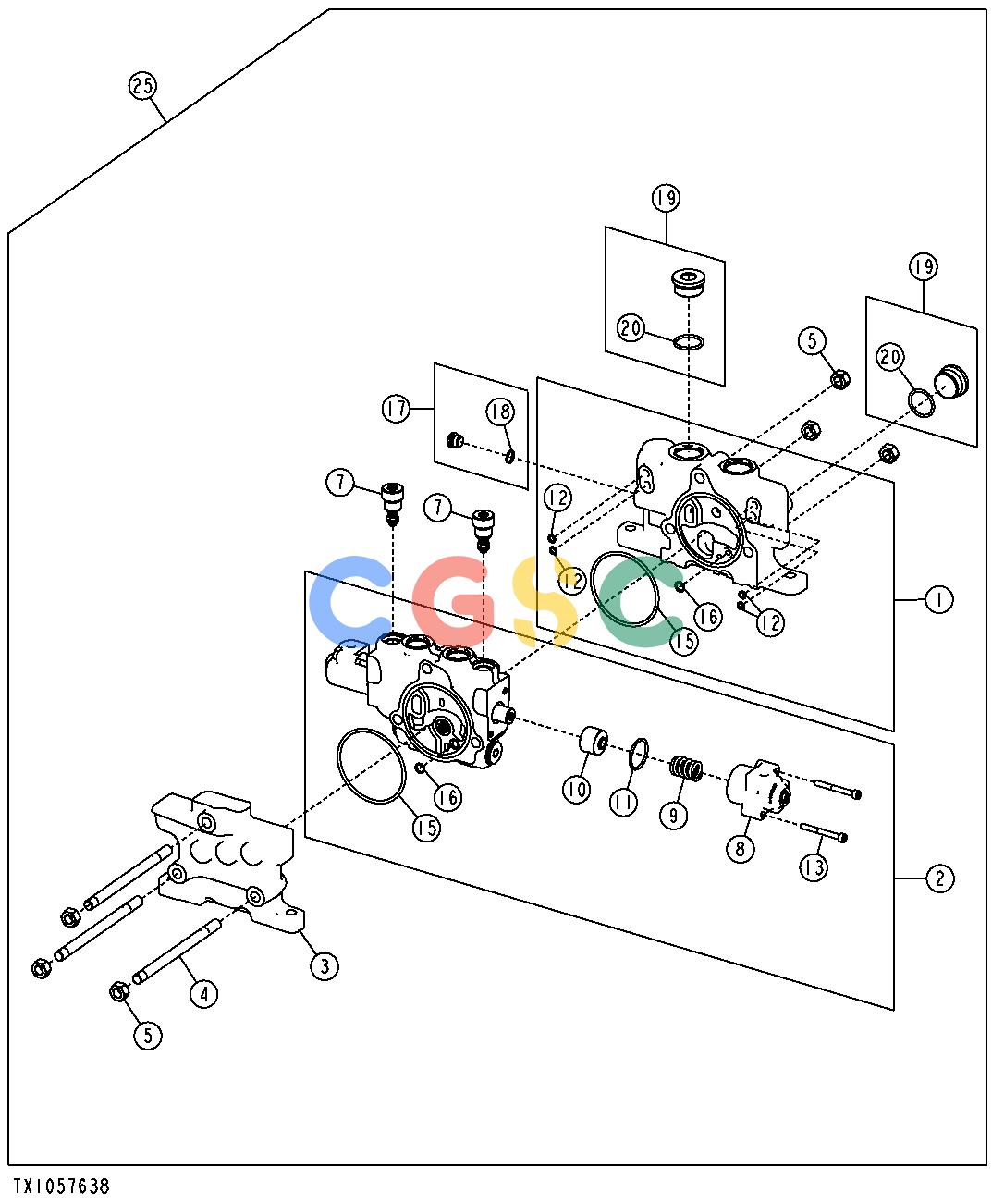

约翰迪尔零件查询643K - FELLER BUNCHER Steering Directional Valve Components (Lever Steering)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT368916
|
[1] |
Control Valve
|
|
| 2. |
AT366031
|
[1] |
Spool Valve
|
|
| 3. |
AT366032
|
[1] |
Control Valve
|
|
| 4. |
T254533
|
[3] |
Tie Rod Assembly
|
|
| 5. |
T170269
|
[6] |
Nut
|
|
| 7. |
AT366565
|
[2] |
Pressure Relief Valve
|
|
| 8. |
T254534
|
[1] |
Cap
|
|
| 9. |
T254535
|
[1] |
Spring
|
|
| 10. |
T254536
|
[1] |
Valve Seat Insert
|
|
| 11. |
T254539
|
[1] |
O-Ring
|
|
| 12. |
AT314538
|
[4] |
O-Ring
|
|
| 13. |
19M8156
|
[2] |
Screw
|
|
| 15. |
T118685
|
[2] |
O-Ring
|
|
| 16. |
T41339
|
[2] |
O-Ring
|
|
| 17. |
AT49216
|
[1] |
Fitting Plug
|
|
| 18. |
T70177
|
[1] |
O-Ring
|
|
| 19. |
T60340
|
[2] |
Drain Plug
|
|
| 20. |
R29936
|
[2] |
O-Ring
|
|
| 25. |
AT359212
|
[1] |
Hydr./Pilot Control Valve
|
|
