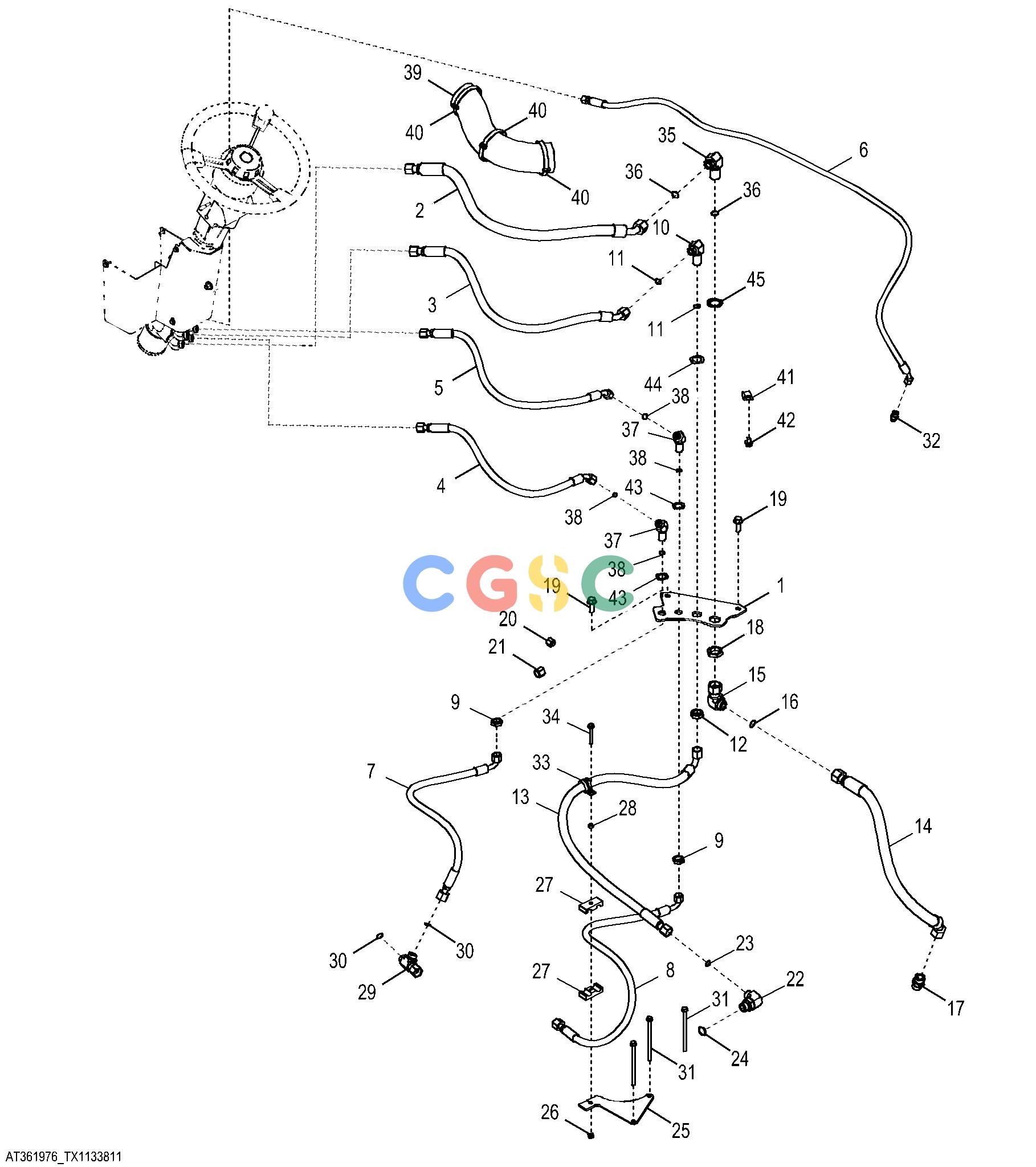

约翰迪尔零件查询643K - FELLER BUNCHER Hoses And Fittings- Wheel Steering ColumnEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
289 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T251869
|
[1] |
Plate
|
|
| 2. |
AT361974
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 3. |
AT361975
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 4. |
AT361977
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 5. |
AT361979
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 6. |
AT362157
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 7. |
AT364409
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 8. |
AT364263
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 9. |
38H5092
|
[2] |
Nut
|
|
| 10. |
38H1362
|
[1] |
Elbow Fitting
|
|
| 11. |
T77932
|
[2] |
O-Ring
|
|
| 12. |
T80306
|
[1] |
Nut
|
|
| 13. |
AT364442
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 14. |
AT364563
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 15. |
38H1097
|
[1] |
Elbow Fitting
|
|
| 16. |
T77858
|
[1] |
O-Ring
|
|
| 17. |
AT352651
|
[1] |
Check Valve
|
|
| 18. |
38H5094
|
[1] |
Nut
|
|
| 19. |
19M7790
|
[2] |
Screw
|
|
| 20. |
38H1415
|
[1] |
Fitting
|
|
| 21. |
38H1416
|
[1] |
Fitting
|
|
| 22. |
38H1404
|
[1] |
Elbow Fitting
|
|
| 23. |
T77932
|
[1] |
O-Ring
|
|
| 24. |
U12547
|
[1] |
O-Ring
|
|
| 25. |
AT364590
|
[1] |
Plate
|
|
| 26. |
14M7524
|
[1] |
Flange Nut
|
|
| 27. |
H135155
|
[2] |
Clamp
|
|
| 28. |
T252505
|
[1] |
Spacer
|
|
| 29. |
38H1032
|
[1] |
Tee Fitting
|
|
| 30. |
T77932
|
[2] |
O-Ring
|
|
| 31. |
19M8916
|
[3] |
Screw
|
|
| 32. |
AT352657
|
[1] |
Check Valve
|
|
| 33. |
T102934
|
[1] |
Clamp
|
|
| 34. |
19M7801
|
[1] |
Screw
|
|
| 35. |
38H1324
|
[1] |
Elbow Fitting
|
|
| 36. |
T77858
|
[2] |
O-Ring
|
|
| 37. |
38H1321
|
[1] |
Elbow Fitting
|
|
| 38. |
T77857
|
[2] |
O-Ring
|
|
| 39. |
........
|
[1] |
Hose Sleeve - Fabricate
|
|
| 40. |
N189220
|
[3] |
Tie Band
|
|
| 41. |
T78787
|
[1] |
Clamp
|
|
| 42. |
19M7783
|
[1] |
Screw
|
|
| 43. |
12H328
|
[2] |
Lock Washer
|
|
| 44. |
12H329
|
[1] |
Lock Washer
|
|
| 45. |
T174275
|
[1] |
Lock Washer
|
|
