约翰迪尔零件查询643K - FELLER BUNCHER Hoses And Fittings- Wheel Steering ValveEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 486 次

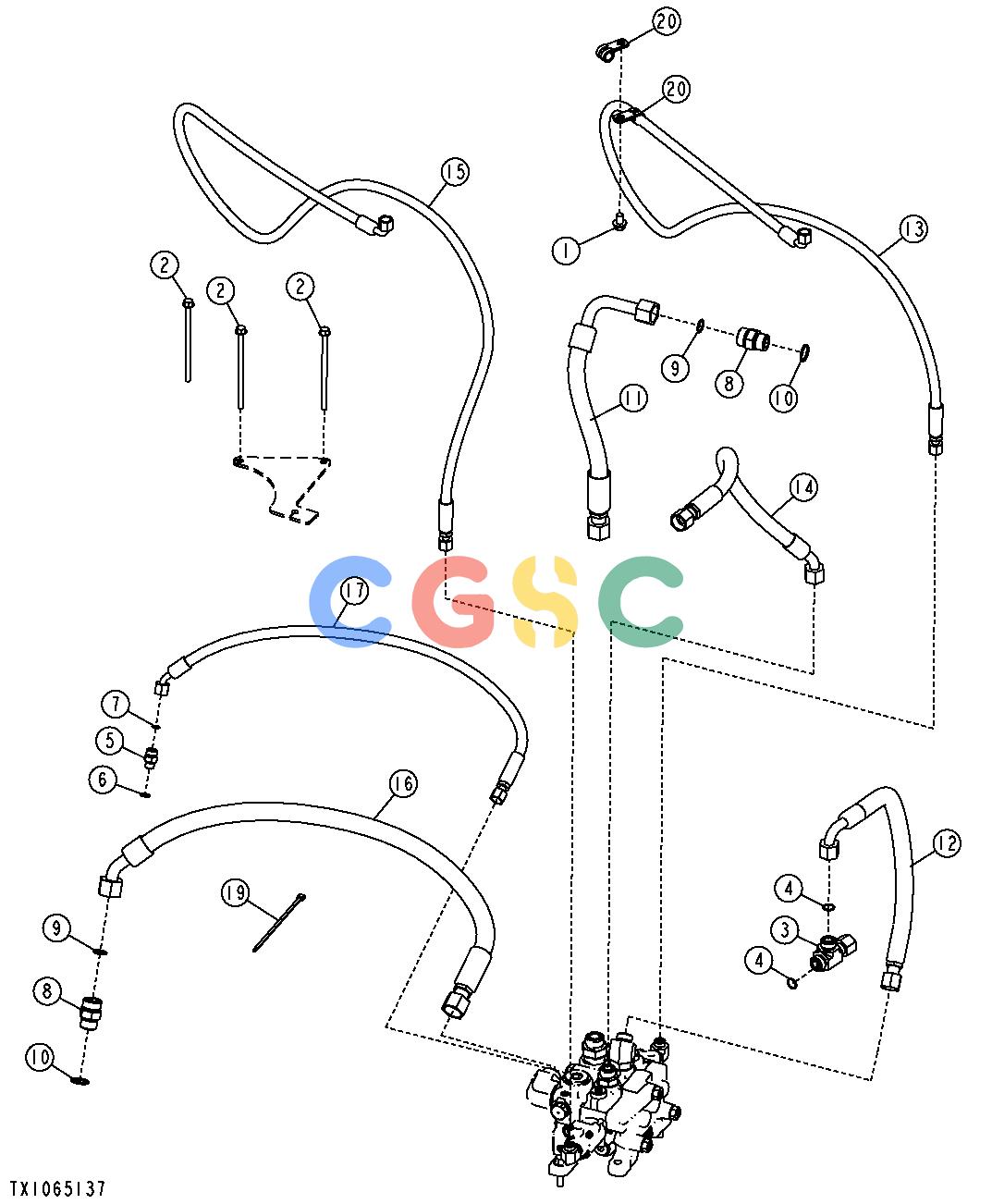

Pos.	Part No	Qty	Parts name	Comments
1.	19M7783	[1]	Screw	M10 X 16
2.	19M8916	[3]	Screw	M8 X 150
3.	38H1032	[1]	Tee Fitting
4.	T77932	[2]	O-Ring	15.596 X 1.778 MM (0.614" X 0.070")
5.	38H1160	[1]	Adapter Fitting
6.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
7.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
8.	38H1163	[2]	Adapter Fitting
9.	T77858	[2]	O-Ring	18.771 X 1.778 MM (0.739" X 0.070")
10.	U12547	[2]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
11.	AT359253	[1]	Hydraulic Hose - Fabricate	30.1752" X 408 MM (16") X 30.1752"
12.	AT359259	[1]	Hydraulic Hose - Fabricate	1" X 640 MM (25-1/4") X 1"
13.	AT359260	[1]	Hydraulic Hose - Fabricate	17.4752" X 1825 MM (71-3/4") X 17.4752"
14.	AT359263	[1]	Hydraulic Hose - Fabricate	1" X 628 MM (24-3/4") X 1"
15.	AT359265	[1]	Hydraulic Hose - Fabricate	17.4752" X 2110 MM (83") X 17.4752"
16.	AT364143	[1]	Hydraulic Hose - Fabricate	30.1752" X 939 MM (37") X 30.1752"
17.	AT364167	[1]	Hydraulic Hose - Fabricate	17.4752" X 836 MM (33") X 17.4752"
19.	R44302	[1]	Tie Band
20.	R54382	[2]	Half Clamp
