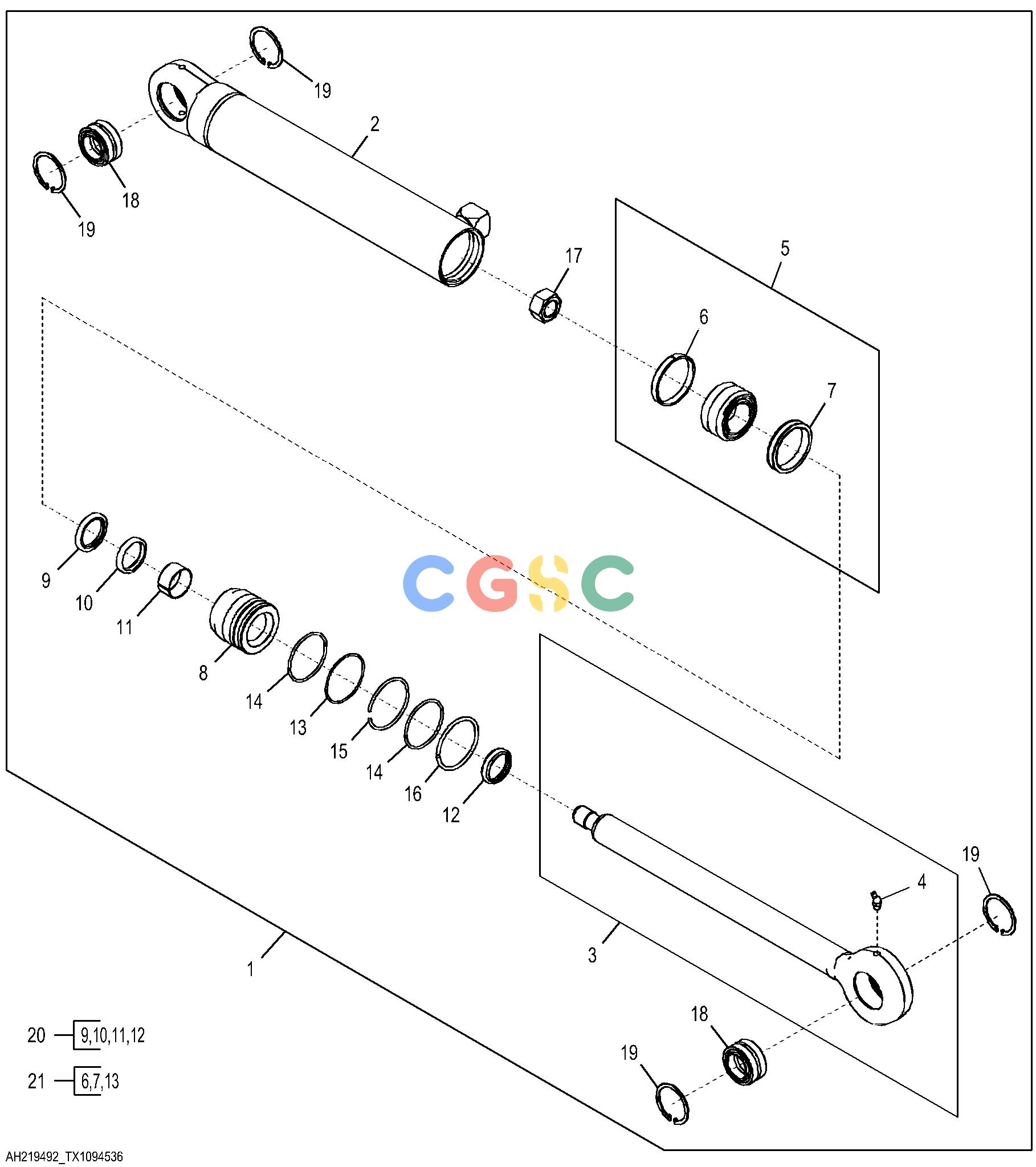

约翰迪尔零件查询643K - FELLER BUNCHER Steering CylinderEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
218 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AH219492
|
[1] |
Hydraulic Cylinder
|
|
| 2. |
AH219529
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 3. |
AH216372
|
[1] |
Rod
|
|
| 4. |
JD7847
|
[1] |
Lubrication Fitting
|
|
| 5. |
R86084
|
[1] |
Piston
|
|
| 6. |
R81777
|
[1] |
Wear Ring
|
|
| 7. |
RE20345
|
[1] |
Seal
|
|
| 8. |
H210731
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 9. |
AH146560
|
[1] |
Seal
|
|
| 10. |
H152202
|
[1] |
Seal
|
|
| 11. |
H157898
|
[1] |
Wear Ring
|
|
| 12. |
AH146556
|
[1] |
Seal
|
|
| 13. |
R81864
|
[1] |
Back-Up Ring
|
|
| 14. |
T12582
|
[2] |
O-Ring
|
|
| 15. |
H170216
|
[1] |
Snap Ring
|
|
| 16. |
H180787
|
[1] |
Snap Ring
|
|
| 17. |
H170538
|
[1] |
Nut
|
|
| 18. |
RE37376
|
[2] |
Self-Aligning Bushing
|
|
| 19. |
T61217
|
[4] |
Snap Ring
|
|
| 20. |
AH149813
|
[1] |
Hydraulic Cylinder Kit
|
|
| 21. |
AH212091
|
[1] |
Hydraulic Cylinder Kit
|
|
