约翰迪尔零件查询643K - FELLER BUNCHER Hoses and Fittings, Lever SteeringEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 506 次

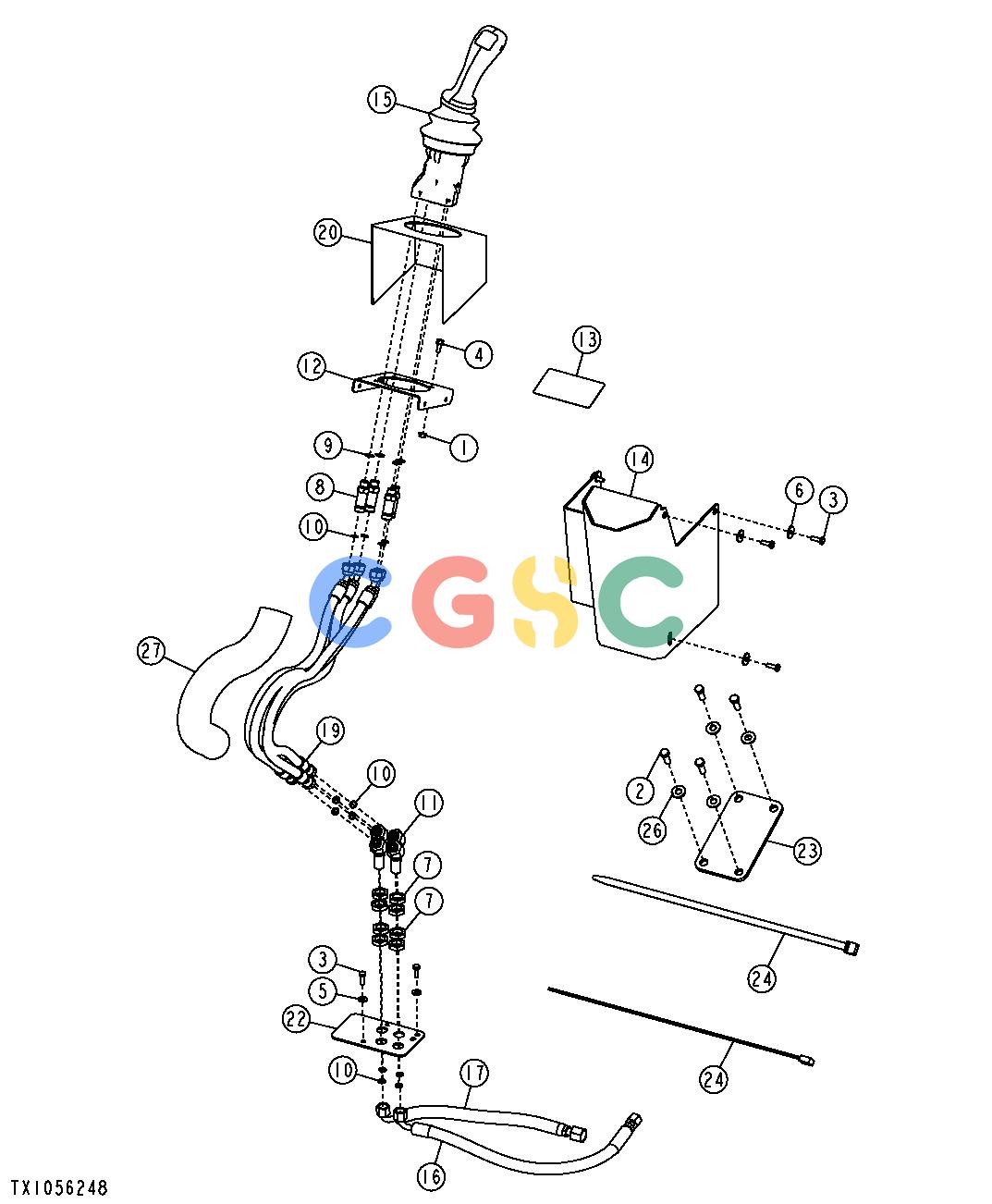

Pos.	Part No	Qty	Parts name	Comments
1.	14M7303	[4]	Flange Nut	M6
2.	19H2676	[4]	Cap Screw	3/8" X 1"
3.	19H3869	[8]	Cap Screw	1/4" X 3/4"
4.	19M7775	[4]	Screw	M6 X 16
5.	24H1287	[2]	Washer	9/32" X 5/8" X 0.065"
6.	24H1287	[6]	Washer	9/32" X 5/8" X 0.065"
7.	38H5091	[8]	Nut	11/16"
8.	38H1212	[4]	Adapter Fitting
9.	R26448	[4]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
10.	T77613	[12]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
11.	38H1312	[4]	Elbow Fitting
12.	AT262241	[1]	Bracket
13.	AT262902	[1]	Label
14.	AT340473	[1]	Cover
15.	AT360815	[1]	Hyd Actuated Control Valve	COMPONENTS NOT SOLD SEPARATELY
15.	AT115146	[1]	Seal Kit	CENTERING SPRING SEAL KIT
15.	AT435548	[1]	Linkage Kit	UNIVERSAL JOINT KIT
16.	AT361657	[1]	Hydraulic Hose - Fabricate
17.	AT361658	[1]	Hydraulic Hose - Fabricate
19.	F123950	[4]	Hydraulic Hose - Fabricate
19.	AT426751	[4]	Hydraulic Hose - Fabricate	17.4752" X 889 MM (35") X 17.4752"
20.	F125819	[1]	Cover
22.	........	[1]	Plate	NLA F380735
23.	F380748	[1]	Cover
24.	N189220	[2]	Tie Band
26.	T105740	[4]	Washer	11.400 X 25.400 X 2.286 MM (0.449" X 1" X 0.090")
27.	F303404	[1]	Guard
