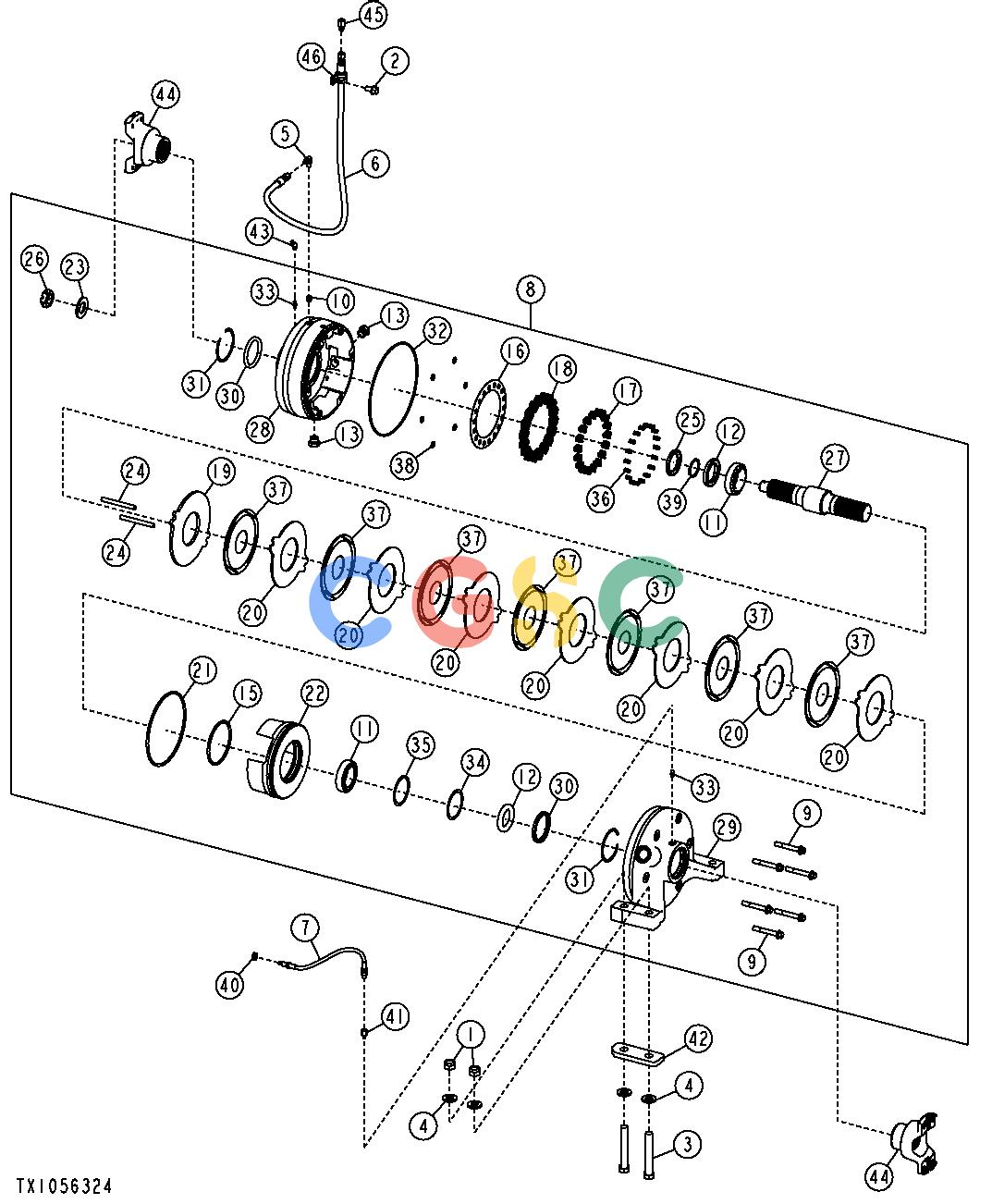

约翰迪尔零件查询643K - FELLER BUNCHER Driveline Bearing and Parking BrakeEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
256 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7328
|
[4] |
Lock Nut
|
|
| 2. |
19M7784
|
[1] |
Screw
|
|
| 3. |
19M7884
|
[4] |
Cap Screw
|
|
| 4. |
24M7241
|
[8] |
Washer
|
|
| 5. |
F002652
|
[1] |
Elbow Fitting
|
|
| 6. |
811019400
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 7. |
AT363492
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 8. |
AT371966
|
[1] |
Brake
|
|
| 9. |
19M7809
|
[6] |
Screw
|
|
| 10. |
AT208411
|
[1] |
Pressure Relief Valve
|
|
| 11. |
AT209496
|
[2] |
Bearing
|
|
| 12. |
AT225727
|
[2] |
Seal
|
|
| 13. |
R39112
|
[2] |
Fitting
|
|
| 13. |
R26375
|
[2] |
O-Ring
|
|
| 15. |
R74657
|
[1] |
O-Ring
|
|
| 16. |
T169103
|
[1] |
Retainer
|
|
| 17. |
T169104
|
[18] |
Compression Spring
|
|
| 18. |
T169105
|
[11] |
Compression Spring
|
|
| 19. |
T169107
|
[1] |
Brake Disk
|
|
| 20. |
T169109
|
[7] |
Brake Disk
|
|
| 21. |
T169116
|
[1] |
O-Ring
|
|
| 22. |
T169290
|
[1] |
Piston
|
|
| 23. |
T172856
|
[1] |
Washer
|
|
| 24. |
T173230
|
[2] |
Pin
|
|
| 25. |
T173593
|
[1] |
Washer
|
|
| 26. |
T226801
|
[1] |
Nut
|
|
| 27. |
T226804
|
[1] |
Shaft
|
|
| 28. |
........
|
[1] |
Housing
|
|
| 29. |
........
|
[1] |
Plate
|
|
| 30. |
T242935
|
[2] |
Seal
|
|
| 31. |
T242936
|
[2] |
Snap Ring
|
|
| 32. |
T242937
|
[1] |
O-Ring
|
|
| 33. |
T242938
|
[2] |
Fitting
|
|
| 34. |
T242939
|
[1] |
Shim
|
|
| 35. |
T242940
|
[1] |
Shim
|
|
| 36. |
T260495
|
[18] |
Compression Spring
|
|
| 37. |
AT360658
|
[7] |
Disk With Inner Spline
|
|
| 38. |
T81686
|
[6] |
O-Ring
|
|
| 39. |
U12167
|
[1] |
Snap Ring
|
|
| 40. |
E12379
|
[1] |
Nut
|
|
| 41. |
E12859
|
[1] |
Adapter Fitting
|
|
| 42. |
F380798
|
[2] |
Spacer
|
|
| 43. |
JD7806
|
[1] |
Lubrication Fitting
|
|
| 44. |
T247787
|
[2] |
Universal Joint Yoke
|
|
| 45. |
T49206
|
[1] |
Adapter Fitting
|
|
| 46. |
T76252
|
[1] |
Clamp
|
|
