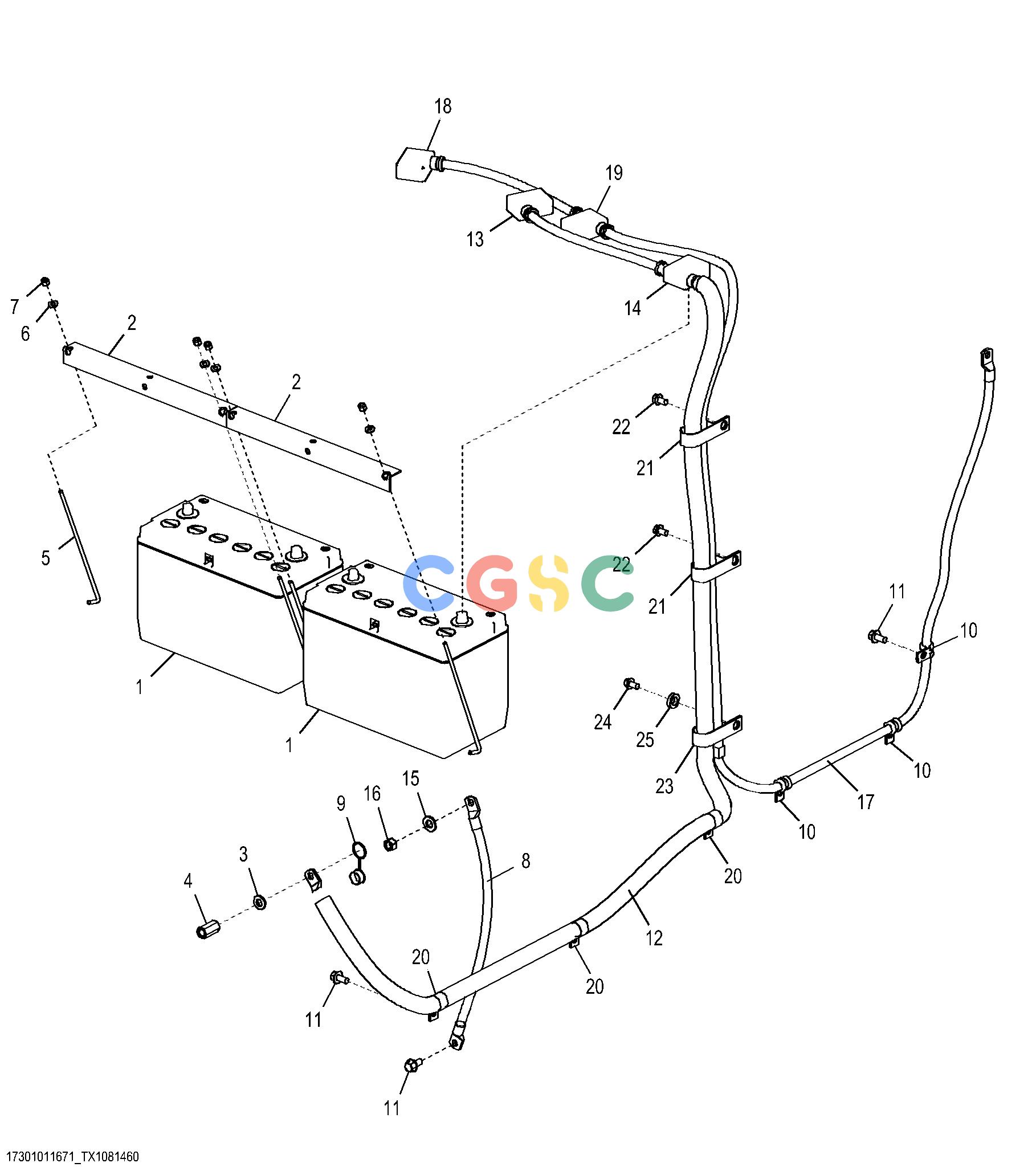

约翰迪尔零件查询643K - FELLER BUNCHER Batteries and WiringEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
638 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[2] |
Wet Charged Battery
|
|
| 2. |
T64105
|
[2] |
Angle
|
|
| 3. |
24M7240
|
[1] |
Washer
|
|
| 4. |
T174530
|
[1] |
Nut
|
|
| 5. |
T22571
|
[4] |
Bolt
|
|
| 6. |
24H1287
|
[4] |
Washer
|
|
| 7. |
M40333
|
[4] |
Lock Nut
|
|
| 8. |
AT38449
|
[1] |
Ground Cable
|
|
| 9. |
T134104
|
[1] |
Cover
|
|
| 10. |
T76719
|
[3] |
Clamp
|
|
| 11. |
19M7784
|
[3] |
Screw
|
|
| 12. |
F390089
|
[1] |
Battery Cable
|
|
| 13. |
T107114
|
[1] |
Cover
|
|
| 14. |
T107116
|
[1] |
Cover
|
|
| 15. |
........
|
[1] |
Washer
|
|
| 16. |
14M7275
|
[1] |
Nut
|
|
| 17. |
F393103
|
[1] |
Battery Cable
|
|
| 18. |
T107115
|
[1] |
Cover
|
|
| 19. |
T107116
|
[1] |
Cover
|
|
| 20. |
T102934
|
[3] |
Clamp
|
|
| 21. |
T149597
|
[2] |
Clamp
|
|
| 22. |
19H2676
|
[2] |
Cap Screw
|
|
| 23. |
AT136909
|
[1] |
Clamp
|
|
| 24. |
19M7785
|
[1] |
Screw
|
|
| 25. |
F123561
|
[1] |
Washer
|
|
