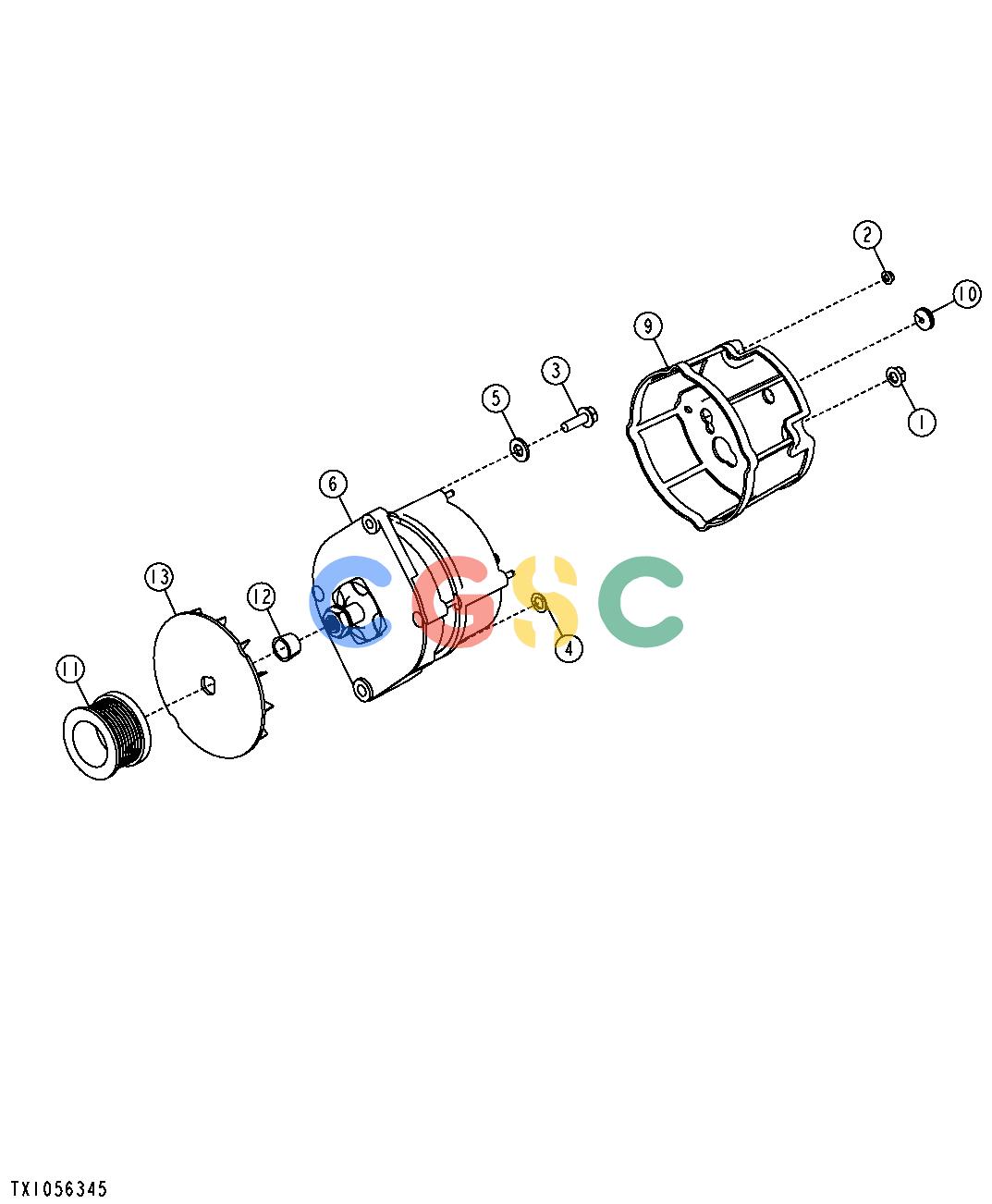

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 14M7298 | [1] | Flange Nut | M8 |
| 2. | 14M7375 | [5] | Flange Nut | M5 |
| 3. | 19M7867 | [1] | Screw | M8 X 25 |
| 4. | 24H1302 | [1] | Washer | 13/32" X 11/16" X 0.035" |
| 5. | 24M7239 | [1] | Washer | 10.700 X 21 X 2.500 MM |
| 6. | TY24485 | [1] | Alternator | MARKED AH137883 |
| 6. | SE501342 | [1] | Alternator Reman | 12V-95A REMAN FOR TY24485 OR AH137883 |
| 6. | H144094 | [1] | Voltage Regulator | |
| 6. | H144095 | [1] | Capacitor | |
| 9. | AH138291 | [1] | Screen | |
| 10. | R27180 | [1] | Grommet | |
| 11. | R94350 | [1] | Pulley | |
| 12. | R94351 | [1] | Bushing | |
| 13. | T158584 | [1] | Fan |
