约翰迪尔零件查询643K - FELLER BUNCHER Wiring Harness - Cab - HardwareEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 751 次

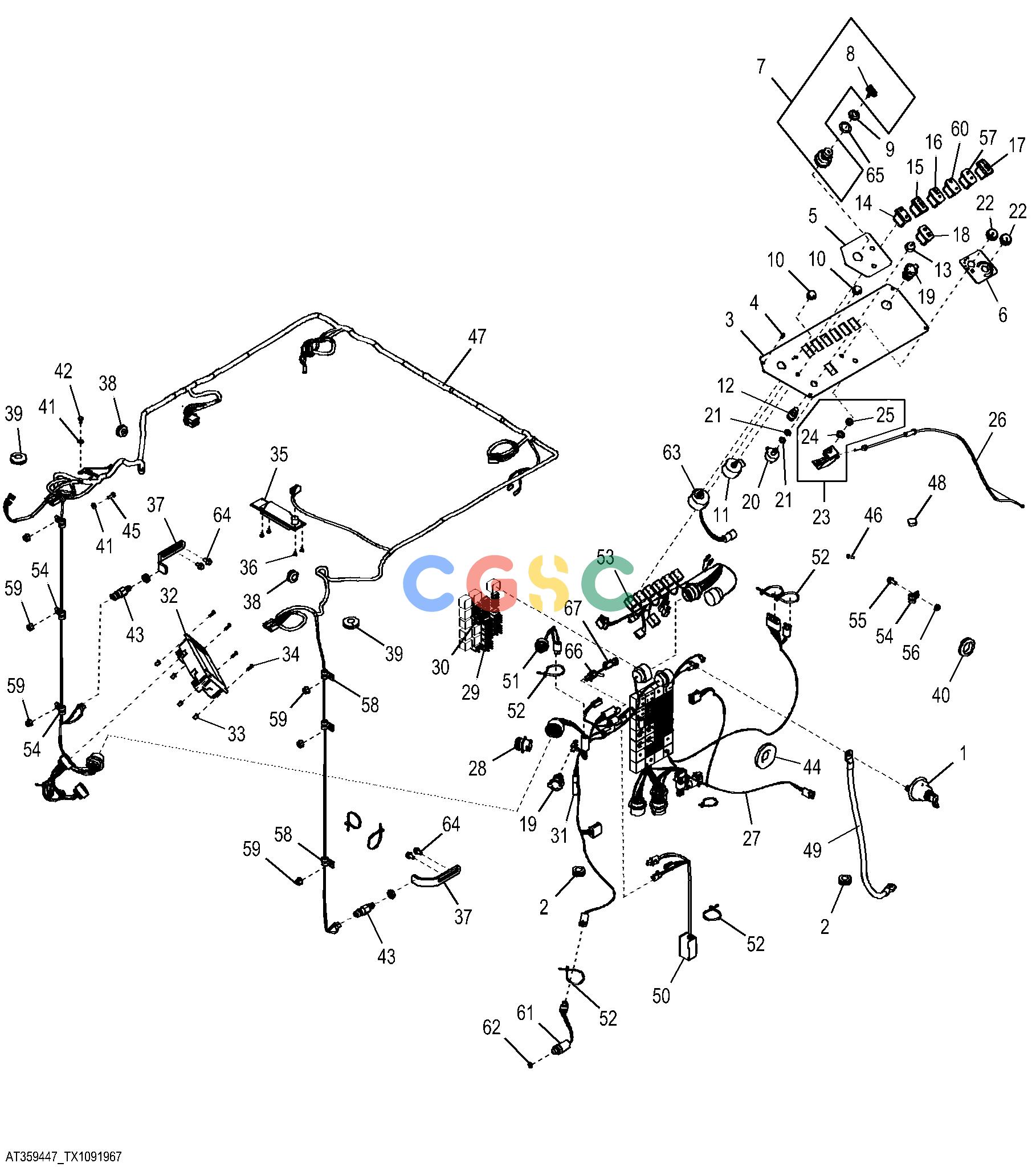

Pos.	Part No	Qty	Parts name	Comments
1.	AT41188	[1]	Switch	BATTERY DISCONNECT
2.	H65107	[3]	Grommet
3.	AT358839	[1]	Panel
4.	R76500	[4]	Screw
5.	T246497	[1]	Label	CAB CONSOLE
6.	T233661	[1]	Label	HEATER AND AIR CONDITIONER
7.	AT195301	[1]	Switch	IGNITION
8.	AT195302	[1]	Key
9.	R44342	[1]	Nut
10.	F123809	[2]	Knob
11.	F393389	[1]	Potentiometer
12.	R39554	[1]	Switch
13.	T55501	[1]	Cap	SWITCH BOOT, HORN
14.	AT326982	[1]	Toggle/Rocker Switch	PARK BRAKE
15.	AT347137	[1]	Toggle/Rocker Switch	PILOT ENABLE
16.	AT327024	[1]	Toggle/Rocker Switch	FAN REVERSER
17.	AT350611	[1]	Toggle/Rocker Switch	SAW ENABLE
18.	AT303865	[1]	Toggle/Rocker Switch	A/C SWITCH
19.	GY20126	[2]	Socket Outlet
20.	RE43497	[1]	Switch	ROTARY
21.	E46066	[2]	Nut
22.	AL76568	[2]	Knob
23.	RE46742	[1]	Control	TEMPERATURE
24.	12H292	[1]	Lock Washer	1/2"
25.	14H934	[1]	Nut	7/16"
26.	AT360809	[1]	Push Pull Cable
27.	AT390990	[1]	Cab Wiring Harness	(SUB FOR AT358836 AND AT376282), LOAD CENTER COMPONENTS ON SEPARATE PAGE
28.	57M7919	[1]	Elec. Connector Housing
29.	AT434626	[11]	Relay	SUB FOR AT308380
30.	T103834	[2]	Circuit Breaker
31.	T253387	[1]	Elec. Connector Accessory
32.	AT359480	[1]	Monitor
33.	T82792	[4]	Nut
34.	T82791	[4]	Screw
35.	AT320544	[1]	Lamp	(SUB FOR AT101691 THIS APPLICATION)
36.	37H195	[4]	Screw	0.190" X 3/8"
37.	F391586	[2]	Plate
38.	R36235	[2]	Grommet
39.	R45210	[2]	Grommet
40.	U15091	[1]	Grommet
41.	24H1287	[2]	Washer	9/32" X 5/8" X 0.065"
42.	19H3887	[1]	Cap Screw	1/4" X 1/2"
43.	F065818	[2]	Switch
44.	R180306	[1]	Grommet
45.	19H3869	[1]	Cap Screw	1/4" X 3/4"
46.	T124407	[1]	Screw
47.	AT414551	[1]	Cab Wiring Harness	(SUB FOR AT361022 AND AT375611) CAB COMPONENTS ON SEPARATE PAGE
48.	811124400	[1]	Plug
49.	AT201503	[1]	Cable
50.	F125507	[1]	Amplifier
51.	AT160480	[1]	Alarm System
52.	R44302	[18]	Tie Band
53.	AT376280	[1]	Cab Wiring Harness	(SUB FOR AT360061) CAB CONSOLE COMPONENTS ON SEPARATE PAGE
54.	T74412	[4]	Clamp
55.	19M7866	[1]	Screw	M8 X 20
56.	14M7298	[1]	Flange Nut	M8
57.	AT303862	[1]	Toggle/Rocker Switch	WORK LIGHT
58.	T78974	[3]	Clamp
59.	R189154	[6]	Nut	(SUB FOR E59406 THIS APPLICATION)
60.	AT363792	[1]	Toggle/Rocker Switch	THROTTLE
61.	F124042	[1]	Pressure Switch	SERVICE BRAKE
62.	R26448	[1]	O-Ring
63.	AT365422	[1]	Potentiometer	GROUND SPEED LIMITER
64.	19M7865	[4]	Screw	M8 X 16
65.	24H1447	[1]	Washer	1-1/32" X 1-1/2" X 0.036" SUB FOR 24H1844
66.	AT394002	[1]	Wiring Harness
67.	R78053	[1]	Electrical Connector Assy
