约翰迪尔零件查询643K - FELLER BUNCHER Wiring Harness - Cab - ConsoleEPC John Deere online_约翰迪尔John Deere_工程机械

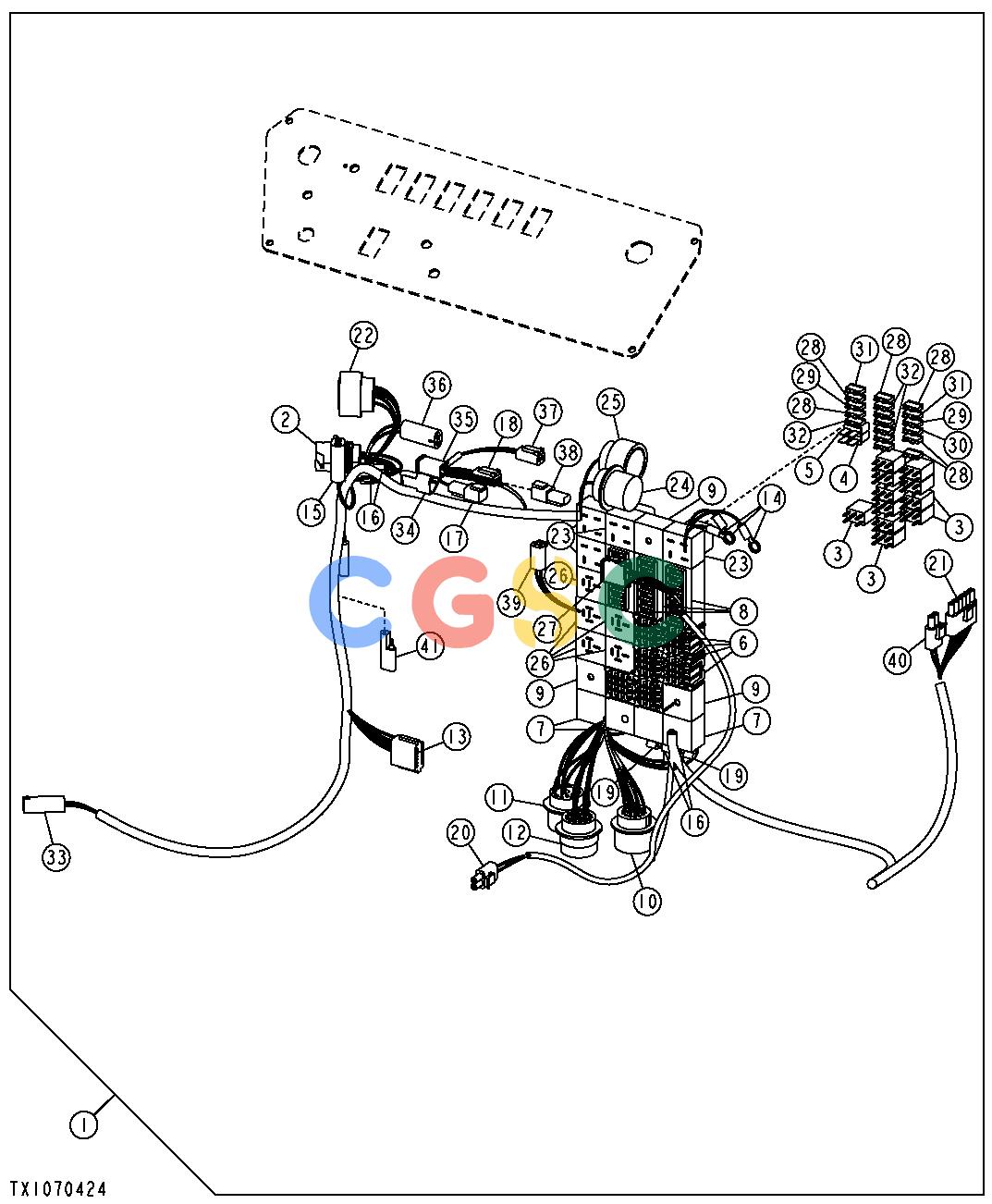

Pos.	Part No	Qty	Parts name	Comments
1.	AT390990	[1]	Cab Wiring Harness	(SUB FOR (1) AT358836 AND AT376282) CAB CONSOLE
2.	57M9183	[1]	Elec. Connector Housing	DIAGNOSTIC CONNECTOR
2.	........	[1]	Nut	(ORDER ALHN-19)
2.	57M9358	[1]	Elec. Connector Accessory
2.	57M8264	[2]	Elec. Connector Terminal
2.	R78066	[2]	Elec. Connector Terminal
2.	R78069	[5]	Elec. Connector Cavity Plug
3.	AT434626	[11]	Relay	SUB FOR AT308380
4.	T103834	[2]	Circuit Breaker	20 A
5.	T102780	[1]	Circuit Breaker	25 A
6.	........	[7]	Module	(ORDER 59225)
7.	........	[4]	Module	(ORDER 59215)
8.	........	[3]	Module	(ORDER 59216)
9.	........	[3]	Module	(ORDER 59021)
10.	57M7748	[1]	Elec. Connector Housing
10.	R78069	[4]	Elec. Connector Cavity Plug
10.	R78068	[2]	Elec. Connector Terminal
10.	R78066	[15]	Elec. Connector Terminal
10.	........	[1]	Washer	(ORDER 124125)
10.	........	[1]	Nut	(ORDER 104299)
10.	........	[1]	Cap	(ORDER 103962)
11.	57M8111	[1]	Elec. Connector Housing
11.	R78069	[3]	Elec. Connector Cavity Plug
11.	R78066	[10]	Elec. Connector Terminal
11.	R78068	[1]	Elec. Connector Terminal
12.	57M7544	[1]	Elec. Connector Housing
12.	R78069	[3]	Elec. Connector Cavity Plug
12.	R78066	[18]	Elec. Connector Terminal
12.	57M8264	[2]	Elec. Connector Terminal
13.	57M8008	[1]	Electrical Connector Assy	JDLINK™
13.	57M8009	[1]	Elec.Connect Locking Device
13.	R78069	[5]	Elec. Connector Cavity Plug
13.	R78066	[5]	Elec. Connector Terminal
13.	57M8264	[2]	Elec. Connector Terminal
14.	........	[3]	Elec. Connector Terminal	16 AWG
15.	R78053	[1]	Electrical Connector Assy	MONITOR ALARM
15.	R78061	[2]	Elec. Connector Terminal
15.	R78059	[2]	Electrical Connector Assy
16.	........	[4]	Elec. Connector Terminal	1/4 IN. 16 AWG FEMALE SPADE (ORDER (1) 480054-4)
17.	57M8023	[1]	Elec. Connector Housing	PROPORTIONAL SOLENOID
17.	57M7621	[1]	Elec.Connect Locking Device
17.	R78066	[2]	Elec. Connector Terminal
18.	57M8021	[3]	Electrical Connector Assy	FIRE SUPPRESSION SYSTEM
18.	57M8022	[1]	Elec.Connect Locking Device
18.	R78066	[2]	Elec. Connector Terminal
19.	........	[2]	Elec. Connector Terminal	1/4 IN. RING 10 AWG (ORDER (1) 480054-4)
20.	RE12363	[1]	Elec. Connector Terminal	AIR SUSPENSION SEAT
20.	R78060	[2]	Elec. Connector Terminal
20.	R78063	[2]	Elec. Connector Seal
21.	RE12366	[1]	Electrical Connector Assy	AIR CONDITIONING UNIT WIRING HARNESS
21.	57M7883	[2]	Elec. Connector Terminal
21.	R78062	[2]	Elec. Connector Seal
21.	R78060	[4]	Elec. Connector Terminal
21.	R78063	[2]	Elec. Connector Seal
21.	R78059	[2]	Electrical Connector Assy
22.	57M7751	[1]	Elec. Connector Housing	MONITOR
22.	R78069	[1]	Elec. Connector Cavity Plug
22.	R78066	[24]	Elec. Connector Terminal
22.	57M7542	[3]	Elec. Connector Terminal
22.	57M8263	[3]	Elec. Connector Terminal
23.	........	[4]	Module	(ORDER 59196)
24.	57M8616	[1]	Elec. Connector Housing	TO CONSOLE HARNESS
24.	57M7771	[6]	Elec. Connector Terminal
24.	........	[1]	Washer	(ORDER 124125)
24.	........	[1]	Nut	(ORDER 104299)
24.	........	[1]	Cap	(ORDER 103962)
24.	R78068	[4]	Elec. Connector Terminal
24.	R78066	[19]	Elec. Connector Terminal
25.	57M8006	[1]	Electrical Connector Assy	TO CONSOLE HARNESS
25.	R78069	[1]	Elec. Connector Cavity Plug
25.	R78066	[13]	Elec. Connector Terminal
25.	R78067	[3]	Elec. Connector Terminal
25.	57M7614	[1]	Elec. Connector Terminal
26.	........	[5]	Module	(ORDER 59022)
27.	57M8010	[1]	Electrical Connector Assy	RIGHT JOYSTICK
27.	57M8011	[1]	Elec.Connect Locking Device
27.	R78069	[2]	Elec. Connector Cavity Plug
27.	R78066	[6]	Elec. Connector Terminal
28.	........	[10]	Fuse	10 A
29.	........	[2]	Fuse	20 A
30.	........	[1]	Fuse	25 A
31.	........	[2]	Fuse	7.5 A
32.	........	[3]	Fuse	5 A
33.	R78053	[1]	Electrical Connector Assy
33.	R78061	[2]	Elec. Connector Terminal
33.	R78059	[2]	Electrical Connector Assy
33.	AT394002	[1]	Wiring Harness
34.	57M7626	[1]	Elec. Connector Terminal	GSL SIDE
34.	57M7676	[1]	Elec. Connector Terminal
34.	57M8023	[1]	Elec. Connector Housing
34.	R78066	[3]	Elec. Connector Terminal
35.	57M7535	[1]	Elec. Connector Terminal	POT SIDE
35.	57M8016	[1]	Elec.Connect Locking Device
36.	R78053	[1]	Electrical Connector Assy	PROPORTIONAL VALVE CONTROL
36.	R78061	[2]	Elec. Connector Terminal
36.	R78059	[2]	Electrical Connector Assy
37.	57M8021	[1]	Electrical Connector Assy	SHEAR
37.	57M8023	[1]	Elec. Connector Housing
37.	R78066	[2]	Elec. Connector Terminal
37.	57M8022	[1]	Elec.Connect Locking Device
38.	57M8023	[1]	Elec. Connector Housing
39.	57M8021	[1]	Electrical Connector Assy
39.	57M8022	[1]	Elec.Connect Locking Device
39.	R78066	[2]	Elec. Connector Terminal
40.	RE12363	[1]	Elec. Connector Terminal	2 - WAY RADIO
40.	R78060	[2]	Elec. Connector Terminal
40.	R78059	[2]	Electrical Connector Assy
41.	T253387	[1]	Elec. Connector Accessory
