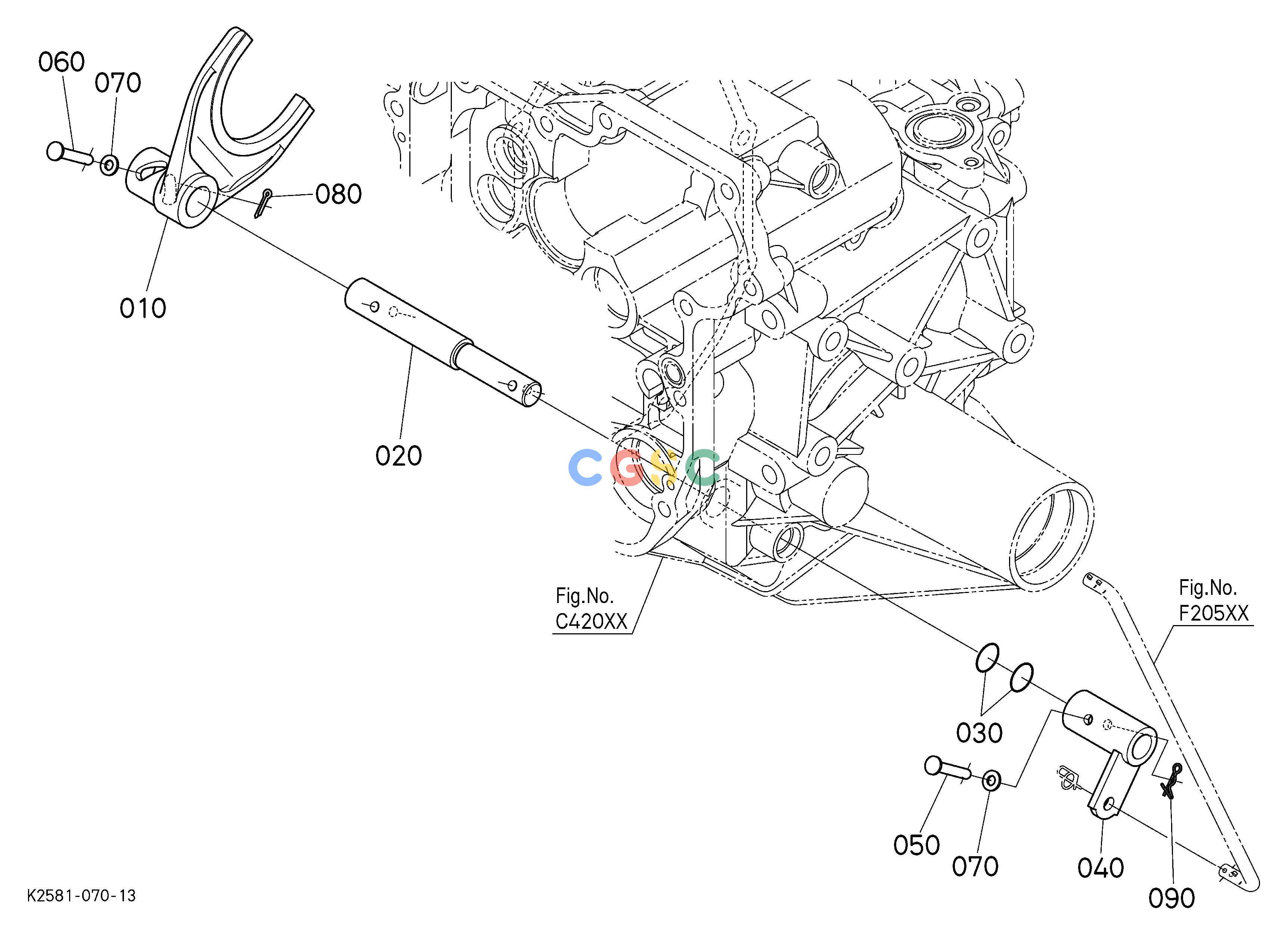

久保田零件查询D22500 REAR DIFFERENTIAL LOCK SHIFT FORK SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258113310
|
[1] |
FORK,DIFF.LOCK SHIFT
|
0.8800(lbs); 0.400
|
| 020. |
K258113320
|
[1] |
SHAFT,DIFF.LOCK
|
0.6600(lbs); 0.300
|
| 030. |
0481700160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
K258113330
|
[1] |
ARM,DIFF.LOCK
|
0.3520(lbs); 0.160
|
| 050. |
3135126620
|
[1] |
PIN,JOINT
|
0.0176(lbs); 0.008
|
| 060. |
K258113340
|
[1] |
PIN,JOINT
|
0.0176(lbs); 0.008
|
| 070. |
0401350060
|
[2] |
WASHER, PLAIN
|
0.0022(lbs); 0.001
|
| 080. |
0551150212
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 090. |
5008034110
|
[1] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
