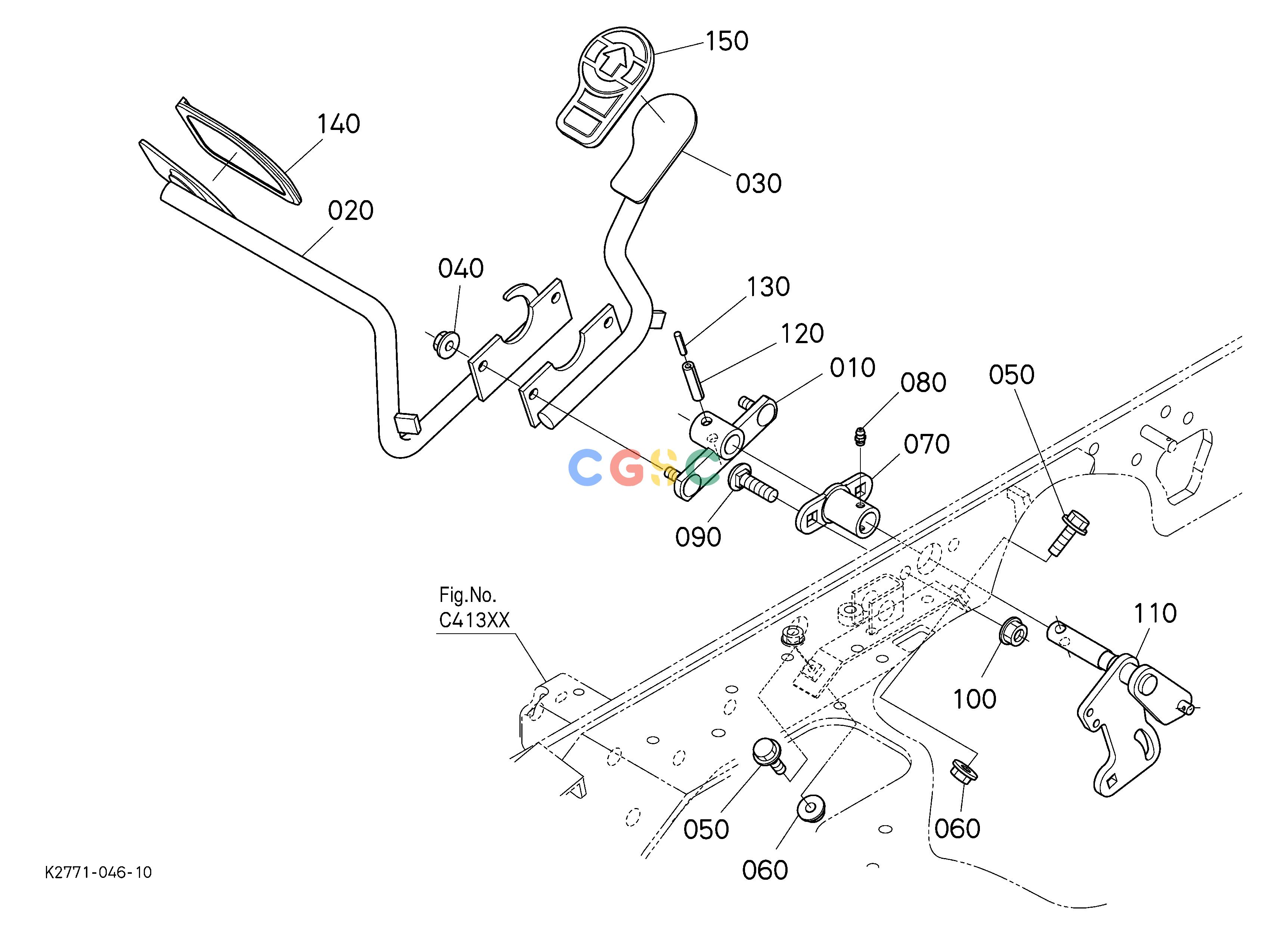

久保田零件查询F02001 SPEED CONTROL PEDAL SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
937 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258142194
|
[1] |
BOSS(HST PEDAL MID)
|
0.0000(lbs); 0.000
|
| 020. |
K250142114
|
[1] |
PEDAL,HST FRONT
|
0.0000(lbs); 0.000
|
| 030. |
K258142123
|
[1] |
PEDAL(HST R)
|
0.0000(lbs); 0.000
|
| 040. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
0175450830
|
[2] |
BOLT,FLANGE
|
0.1100(lbs); 0.050
|
| 060. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 070. |
K258142030
|
[1] |
BOSS (HST PEDAL)
|
0.0000(lbs); 0.000
|
| 080. |
6721142940
|
[1] |
NIPPLE,GREASE
|
0.0022(lbs); 0.001
|
| 090. |
K258154862
|
[2] |
BOLT(SQ.NECK,M10X1.5-35)
|
0.0616(lbs); 0.028
|
| 100. |
K112291962
|
[2] |
NUT(FLANGE,M10 1.5)
|
0.0264(lbs); 0.012
|
| 110. |
K265142045
|
[1] |
LINK(HST PEDAL)
|
0.0000(lbs); 0.000
|
| 120. |
0541100835
|
[1] |
PIN,SPRING
|
0.0000(lbs); 0.000
|
| 130. |
0Y54050322
|
[1] |
PIN,SPRING
|
0.0000(lbs); 0.000
|
| 140. |
K258142310
|
[1] |
COVER,HST PEDAL F
|
0.0000(lbs); 0.000
|
| 150. |
K258142320
|
[1] |
COVER,HST PEDAL R
|
0.0000(lbs); 0.000
|
