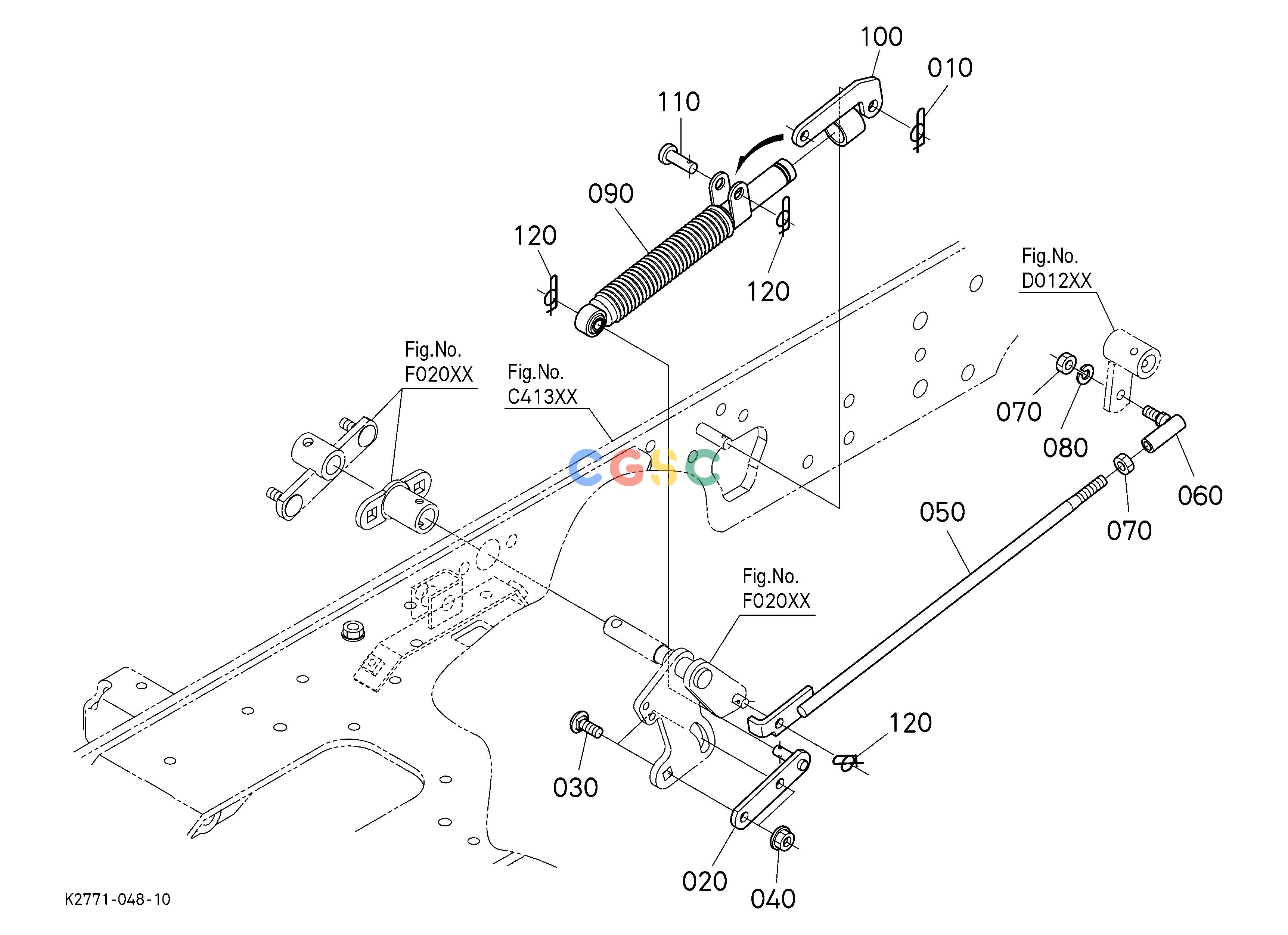

久保田零件查询F02300 SPEED CONTROL ROD SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K121191132
|
[1] |
RUE-RING(COTTER)
|
0.0220(lbs); 0.010
|
| 020. |
K265142142
|
[1] |
ARM(DAMPER)
|
0.0000(lbs); 0.000
|
| 030. |
K112291332
|
[2] |
BOLT(SHORT SQ. NECK,M8 1.25)
|
0.0330(lbs); 0.015
|
| 040. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
K265142173
|
[1] |
ROD(SPEED CHANGE)
|
0.0000(lbs); 0.000
|
| 060. |
K112242080
|
[1] |
ROD END,5/16-24UNF
|
0.0660(lbs); 0.030
|
| 070. |
7559931022
|
[2] |
HEX.NUT(5/16-24UNF)
|
0.0330(lbs); 0.015
|
| 080. |
0451250080
|
[1] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 090. |
K265142150
|
[1] |
DAMPER(HST)
|
0.0000(lbs); 0.000
|
| 100. |
K265142133
|
[1] |
STAY(DAMPER)
|
0.0000(lbs); 0.000
|
| 110. |
0512250825
|
[1] |
PIN,JOINT
|
0.0242(lbs); 0.011
|
| 120. |
K121191122
|
[3] |
RUE RING COTTER
|
0.0022(lbs); 0.001
|
