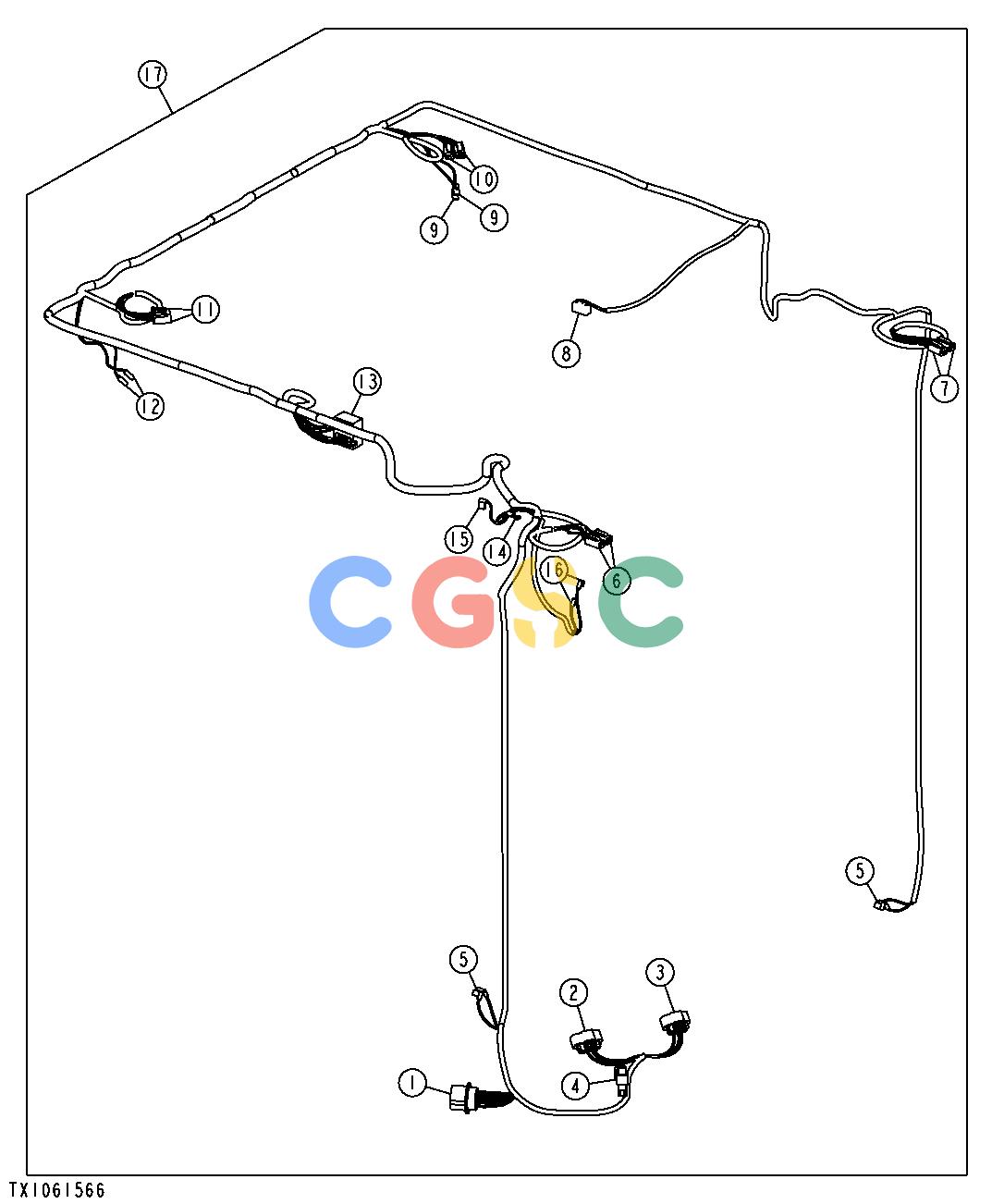

约翰迪尔零件查询643K - FELLER BUNCHER Wiring Harness - Cab - Terminals and ConnectorsEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
604 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
57M7752
|
[1] |
Elec. Connector Housing
|
|
| 1. |
57M9061
|
[1] |
Elec.Connect Locking Device
|
|
| 1. |
57M8035
|
[1] |
Nut
|
|
| 1. |
........
|
[1] |
Cap
|
|
| 1. |
R78066
|
[29] |
Elec. Connector Terminal
|
|
| 1. |
R78069
|
[2] |
Elec. Connector Cavity Plug
|
|
| 2. |
57M9835
|
[1] |
Elec. Connector Housing
|
|
| 2. |
57M8231
|
[1] |
Electrical Connector Assy
|
|
| 2. |
57M9919
|
[1] |
Elec. Connector Accessory
|
|
| 2. |
57M8300
|
[9] |
Elec. Connector Terminal
|
|
| 2. |
57M8330
|
[5] |
Electrical Connector Assy
|
|
| 3. |
57M8484
|
[1] |
Elec. Connector Housing
|
|
| 3. |
57M8231
|
[1] |
Electrical Connector Assy
|
|
| 3. |
57M10201
|
[1] |
Elec. Connector Accessory
|
|
| 3. |
57M8330
|
[6] |
Electrical Connector Assy
|
|
| 3. |
57M8300
|
[9] |
Elec. Connector Terminal
|
|
| 3. |
........
|
[1] |
Elec. Connector Terminal
|
|
| 4. |
57M8018
|
[1] |
Electrical Connector Assy
|
|
| 4. |
57M8131
|
[1] |
Electronic Terminator
|
|
| 4. |
57M8221
|
[1] |
Elec.Connect Locking Device
|
|
| 4. |
........
|
[3] |
Elec. Connector Terminal
|
|
| 5. |
........
|
[2] |
Elec. Connector Housing
|
|
| 5. |
57M8571
|
[2] |
Elec. Connector Terminal
|
|
| 5. |
57M9911
|
[2] |
Elec. Connector Cable Seal
|
|
| 6. |
57M8021
|
[2] |
Electrical Connector Assy
|
|
| 6. |
57M8022
|
[2] |
Elec.Connect Locking Device
|
|
| 6. |
R78066
|
[4] |
Elec. Connector Terminal
|
|
| 7. |
57M8021
|
[2] |
Electrical Connector Assy
|
|
| 7. |
57M8022
|
[2] |
Elec.Connect Locking Device
|
|
| 7. |
R78066
|
[4] |
Elec. Connector Terminal
|
|
| 8. |
R48887
|
[1] |
Electrical Connector Assy
|
|
| 8. |
T34067
|
[2] |
Elec. Connector Terminal
|
|
| 9. |
........
|
[1] |
Elec. Connector Terminal
|
|
| 10. |
57M8021
|
[2] |
Electrical Connector Assy
|
|
| 10. |
57M8022
|
[2] |
Elec.Connect Locking Device
|
|
| 10. |
R78066
|
[4] |
Elec. Connector Terminal
|
|
| 11. |
57M8021
|
[2] |
Electrical Connector Assy
|
|
| 11. |
57M8022
|
[2] |
Elec.Connect Locking Device
|
|
| 11. |
R78066
|
[4] |
Elec. Connector Terminal
|
|
| 12. |
........
|
[1] |
Elec. Connector Terminal
|
|
| 13. |
57M8781
|
[1] |
Elec. Connector Housing
|
|
| 13. |
........
|
[7] |
Elec. Connector Terminal
|
|
| 14. |
........
|
[1] |
Elec. Connector Terminal
|
|
| 15. |
........
|
[1] |
Elec. Connector Terminal
|
|
| 16. |
........
|
[1] |
Elec. Connector Terminal
|
|
| 17. |
AT414551
|
[1] |
Cab Wiring Harness
|
|
