约翰迪尔零件查询643K - FELLER BUNCHER Wiring Harness - Carrier Frame HardwareEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 819 次

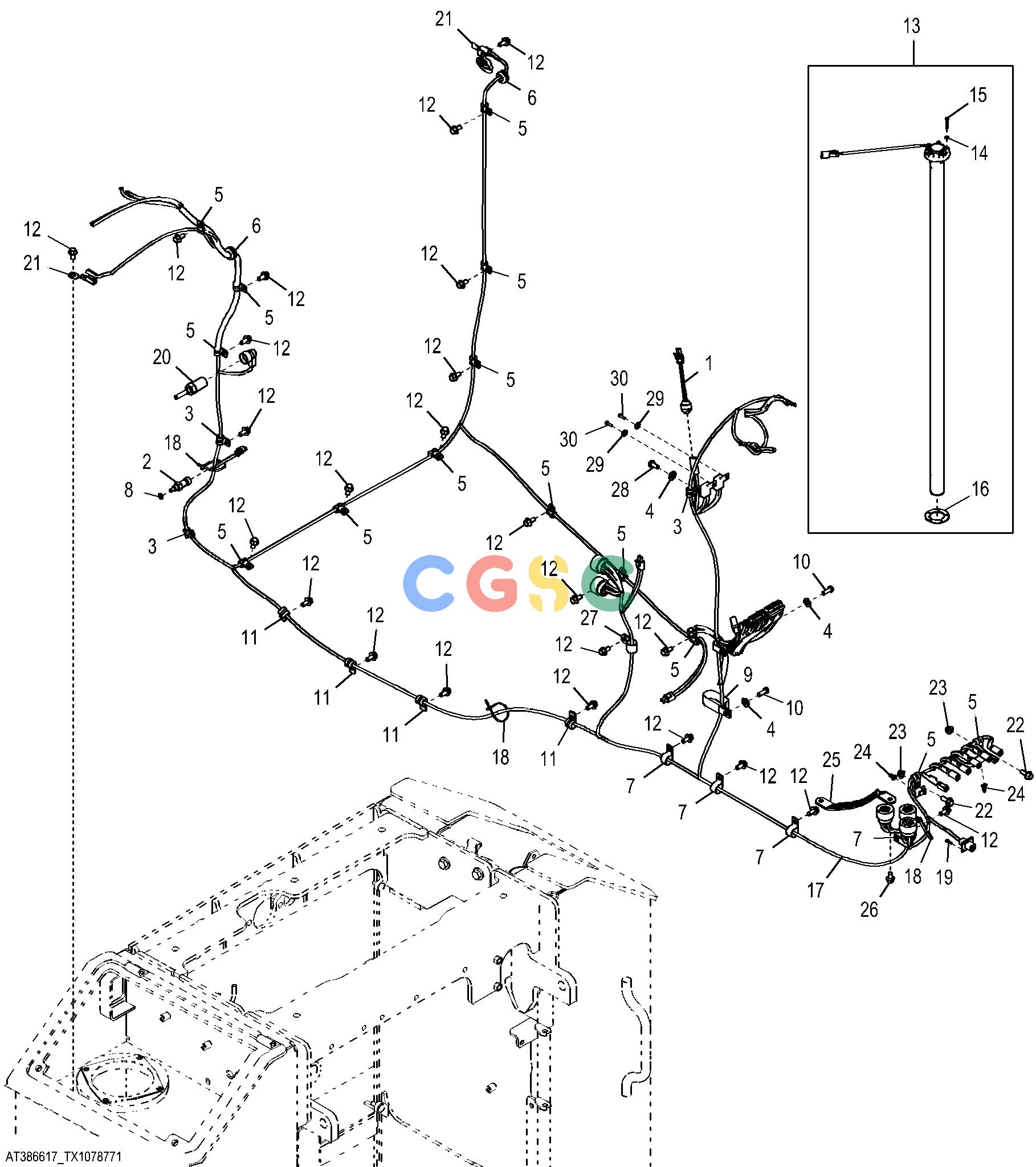

Pos.	Part No	Qty	Parts name	Comments
1.	AT178542	[1]	Air Restriction Sensor
2.	RE52722	[1]	Temperature Sensor
3.	T74412	[3]	Clamp
4.	810309900	[3]	Washer
5.	T78974	[14]	Clamp
6.	R36235	[2]	Grommet
7.	T102934	[5]	Clamp
8.	51M7041	[1]	O-Ring	11.300 X 2.200 MM
9.	AT136909	[1]	Clamp
10.	19H2676	[2]	Cap Screw	3/8" X 1"
11.	T76719	[4]	Clamp
12.	19M7784	[24]	Screw	M10 X 20
13.	AT341323	[1]	Fuel Sender
14.	24M7027	[5]	Washer	5.300 X 10 X 1 MM
15.	19M7317	[5]	Screw	M5 X 30
16.	T196733	[1]	Gasket
17.	AT376600	[1]	Wiring Harness	ENGINE FRAME HARNESS
	AT416046	[1]	Wiring Harness	ENGINE FRAME HARNESS
	AT435717	[1]	Wiring Harness	ENGINE FRAME HARNESS
18.	R44302	[3]	Tie Band
19.	19M8078	[1]	Cap Screw	M4 X 16
20.	F075563	[1]	Sensor	SUB FOR F038342 HYDRAULIC OIL LEVEL SENSOR
	51M4237	[1]	Sealing Ring
	AT421721	[1]	Electrical Connector Assy	FOUR WAY PLUG SOCKET
21.	F125299	[2]	Bracket
22.	19M7785	[2]	Screw	M10 X 25
23.	14M7296	[2]	Flange Nut	M10
24.	F125538	[2]	Clip
25.	AT393693	[1]	Ground Cable	SUB FOR AP22660 THIS APPLICATION
26.	19M7783	[1]	Screw	M10 X 16
27.	T140924	[1]	Clamp
28.	19M7938	[1]	Cap Screw	M10 X 20
29.	810878100	[2]	Washer
30.	19M7372	[2]	Cap Screw	M5 X 16
