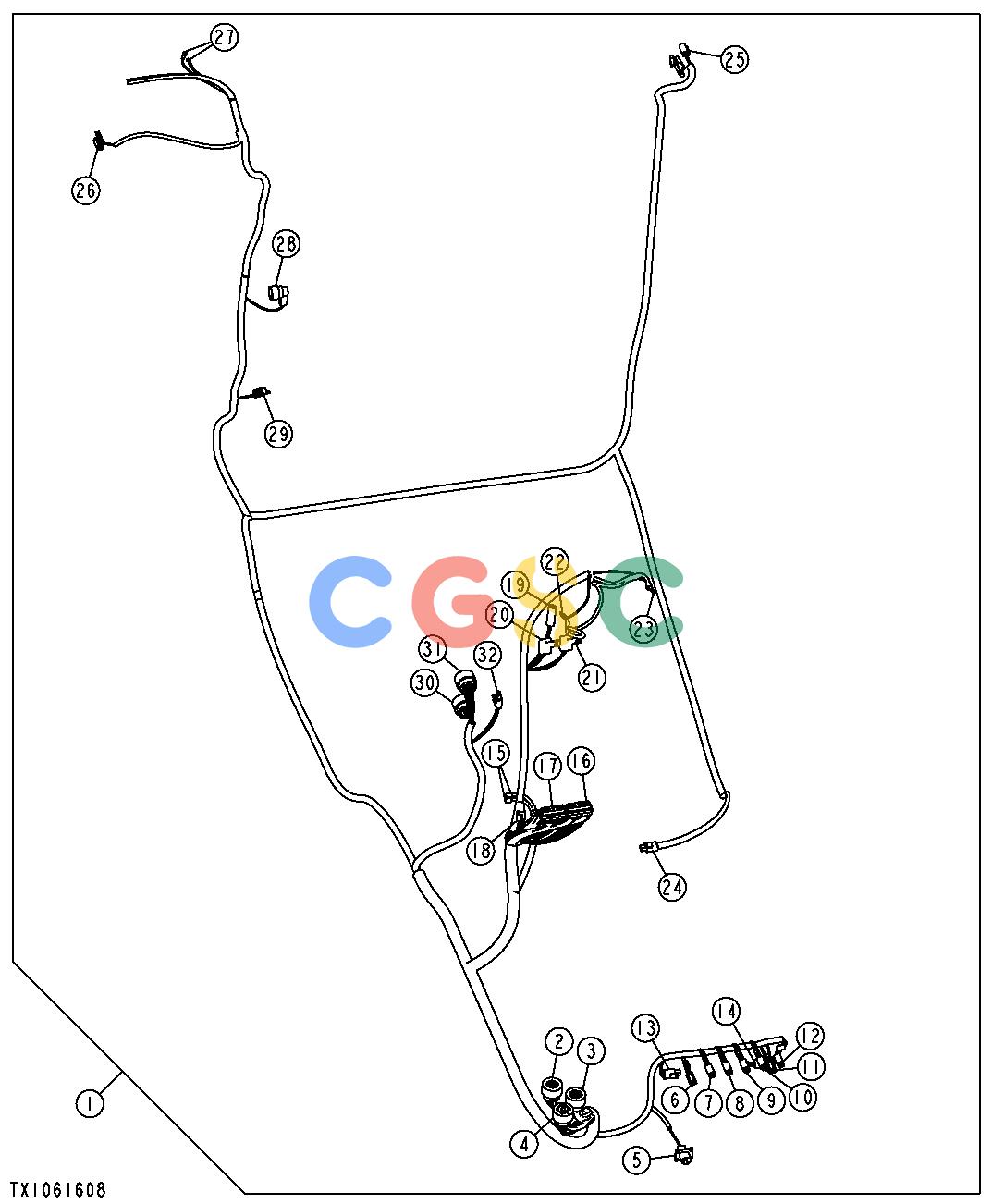

Pos.	Part No	Qty	Parts name	Comments
1.	AT376600	[1]	Wiring Harness	(SUB FOR AT361887)
2.	57M7747	[1]	Electrical Connector Assy	A CAB CONNECTION
2.	R78066	[15]	Elec. Connector Terminal
2.	R78067	[2]	Elec. Connector Terminal
2.	R78069	[4]	Elec. Connector Cavity Plug
3.	57M9381	[1]	Elec. Connector Housing	B CAB CONNECTION
3.	R78066	[23]	Elec. Connector Terminal
4.	57M8110	[2]	Electrical Connector Assy	C CAB CONNECTION
4.	57M7536	[1]	Elec. Connector Terminal
4.	R78066	[9]	Elec. Connector Terminal
4.	R78067	[1]	Elec. Connector Terminal
4.	R78069	[1]	Elec. Connector Cavity Plug
5.	........	[1]	Elec. Connector Housing	(ORDER (1) DT04-4P-CE02) FUNCTION
5.	57M7619	[1]	Elec.Connect Locking Device
5.	R78066	[4]	Elec. Connector Terminal
6.	57M8021	[1]	Electrical Connector Assy	(SV2) PARK BRAKE
6.	57M8022	[1]	Elec.Connect Locking Device
6.	R78066	[2]	Elec. Connector Terminal
7.	57M8021	[1]	Electrical Connector Assy	(SV1) PILOT ENABLE
7.	57M8022	[1]	Elec.Connect Locking Device
7.	R78066	[2]	Elec. Connector Terminal
8.	57M8021	[1]	Electrical Connector Assy	(SV3) ACCUMULATOR ARM CLOSE
8.	57M8022	[1]	Elec.Connect Locking Device
8.	R78066	[2]	Elec. Connector Terminal
9.	57M8021	[1]	Electrical Connector Assy	(SV4) ACCUMULATOR ARM OPEN
9.	57M8022	[1]	Elec.Connect Locking Device
9.	R78066	[2]	Elec. Connector Terminal
10.	57M8021	[1]	Electrical Connector Assy	(SV7) DIFFERENTIAL LOCK
10.	57M8022	[1]	Elec.Connect Locking Device
10.	R78066	[2]	Elec. Connector Terminal
11.	57M8021	[1]	Electrical Connector Assy	(SV6) TRANSMISSION SHIFT LOW
11.	57M8022	[1]	Elec.Connect Locking Device
11.	R78066	[2]	Elec. Connector Terminal
12.	57M8021	[1]	Electrical Connector Assy	(SV5) TRANSMISSION SHIFT HIGH
12.	57M8022	[1]	Elec.Connect Locking Device
12.	R78066	[2]	Elec. Connector Terminal
13.	RE12363	[1]	Elec. Connector Terminal	PARK BRAKE PRESSURE SWITCH
13.	R78060	[2]	Elec. Connector Terminal
14.	R78053	[1]	Electrical Connector Assy	HYDROSTATIC PRESSURE SWITCH
14.	R78061	[2]	Elec. Connector Terminal
15.	........	[1]	Elec. Connector Housing	1/4, 16 AWG FEMALE SPADE A/ C PRESSURE SWITCH
16.	57M9170	[1]	Electrical Connector Assy	ECU CONNECTION
16.	57M7741	[11]	Elec. Connector Terminal
17.	57M9171	[1]	Electrical Connector Assy	ECU CONNECTION
17.	57M7741	[7]	Elec. Connector Terminal
18.	57M8018	[1]	Electrical Connector Assy
18.	57M8131	[1]	Electronic Terminator
18.	57M8221	[1]	Elec.Connect Locking Device
18.	R78066	[3]	Elec. Connector Terminal
19.	R78053	[1]	Electrical Connector Assy	AIR FILTER RESTRICTION SWITCH
19.	R78061	[2]	Elec. Connector Terminal
20.	R104570	[1]	Electrical Connector Assy	ECU FUSE
20.	57M7121	[1]	Fuse
20.	57M8487	[1]	Electrical Connector Cap
20.	R104571	[1]	Elec. Connector Terminal
20.	R104933	[1]	Elec. Connector Terminal
21.	R104570	[1]	Electrical Connector Assy	ECU FIRE SUPPRESSION FUSE
21.	57M7121	[1]	Fuse
21.	57M8487	[1]	Electrical Connector Cap
21.	R104933	[2]	Elec. Connector Terminal
22.	........	[1]	Elec. Connector Terminal	1/4, 16 AWG RING BATTERY NEGATIVE
23.	........	[1]	Elec. Connector Terminal	1/4, 16 AWG RING BATTERY POSITIVE
24.	57M8021	[1]	Electrical Connector Assy	FUEL LEVEL SENSOR
24.	57M8022	[1]	Elec.Connect Locking Device
25.	........	[1]	Elec. Connector Housing	(ORDER (1) 932-109-100) REVERSE FAN SOLENOID
25.	........	[1]	Elec. Connector Housing	(ORDER 731-739-004)
26.	57M8021	[1]	Electrical Connector Assy	HYDRAULIC FILTER RESERVOIR SWITCH
26.	57M8022	[1]	Elec.Connect Locking Device
26.	R78066	[2]	Elec. Connector Terminal
27.	........	[1]	Elec. Connector Terminal	10 RING 16 AWG REVERSE ALARM
28.	........	[1]	Elec. Connector Housing	(ORDER (1) 7800614) HYDRAULIC OIL LEVEL
28.	........	[1]	Elec. Connector Housing	(ORDER 9800603)
28.	Z44344	[1]	Nut
28.	........	[1]	Elec. Connector Housing	(ORDER 8115508)
28.	........	[3]	Elec. Connector Terminal	(ORDER 7702973)
29.	57M7850	[1]	Elec. Connector Housing	HYDRAULIC OIL TEMPERATURE SENSOR
29.	57M7829	[2]	Elec. Connector Terminal
30.	57M8110	[1]	Electrical Connector Assy	ENGINE HARNESS CONNECTOR
30.	57M7536	[1]	Elec. Connector Terminal
30.	R78067	[1]	Elec. Connector Terminal
30.	R78066	[12]	Elec. Connector Terminal
31.	57M7543	[1]	Elec. Connector Housing	ENGINE HARNESS CONNECTOR
31.	R78066	[23]	Elec. Connector Terminal
32.	RE12363	[1]	Elec. Connector Terminal	GROUND SPEED SOLENOID
32.	R78057	[2]	Elec. Connector Terminal
32.	R78059	[2]	Electrical Connector Assy
