约翰迪尔零件查询643K - FELLER BUNCHER Engine Frame ( - 634167)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 494 次

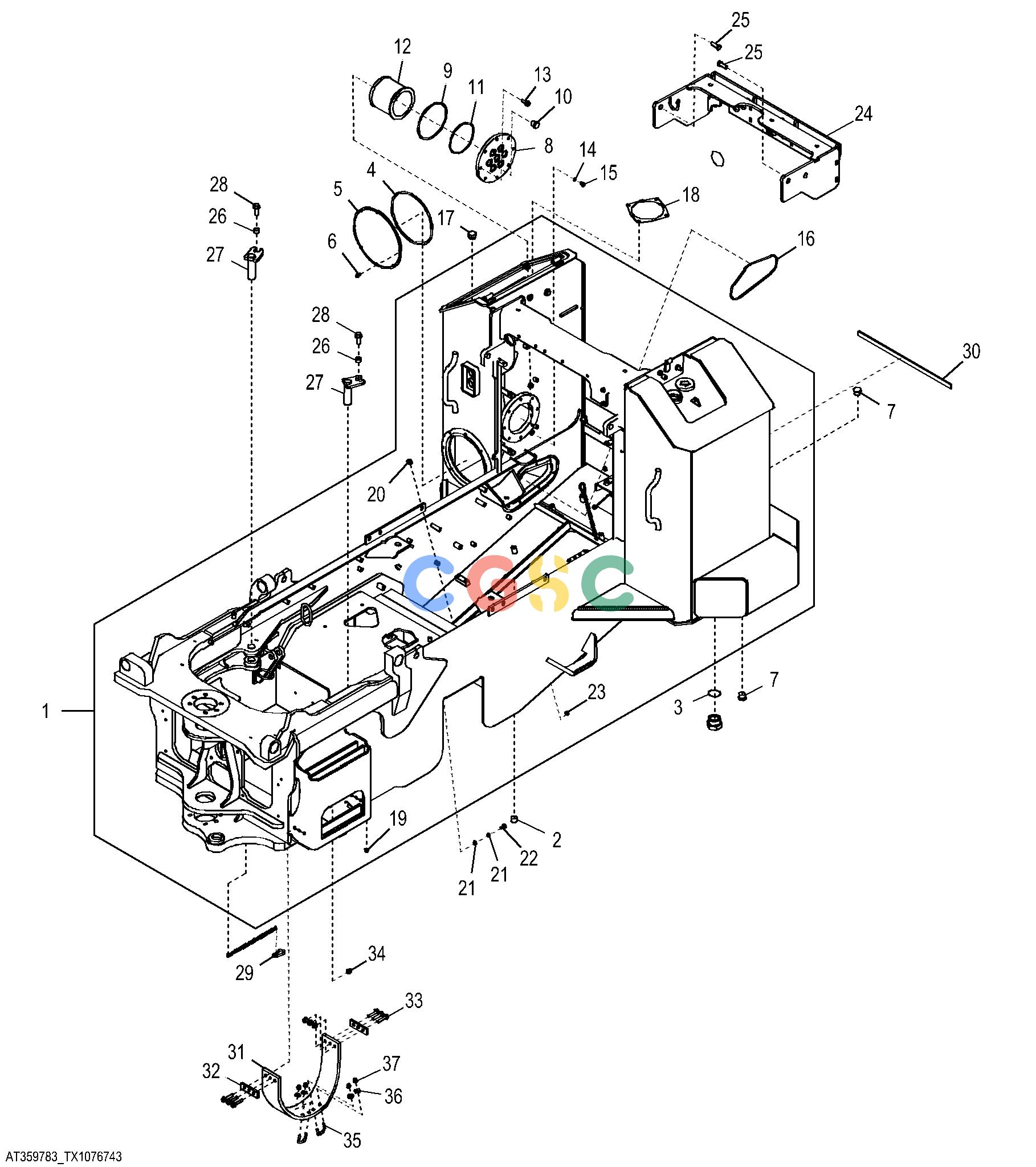

Pos.	Part No	Qty	Parts name	Comments
1.	AT359788	[1]	Frame	(NLA) (CA)
2.	15H562	[1]	Pipe Plug	1"
3.	R43750	[1]	O-Ring
4.	AT124535	[1]	O-Ring
5.	T235937	[1]	Door
6.	T34037	[8]	Screw
7.	810370500	[2]	Plug	(ORDER X05CP-16)
8.	F296763	[1]	Spacer	(SUB FOR F296763)
9.	811386500	[1]	O-Ring
10.	810381800	[7]	Plug
11.	R89632	[1]	Ring	(SUB FOR 811386300)
12.	F122988	[1]	Strainer
13.	19M7790	[8]	Screw	M12 X 35 (ORDER X05CP-12)
14.	51M7041	[2]	O-Ring	11.300 X 2.200 MM
15.	15M7071	[2]	Fitting
16.	F125072	[1]	O-Ring
17.	R36636	[1]	Fitting Plug
18.	T246915	[1]	Gasket
19.	14M7334	[9]	Flange Nut	M10
20.	14M7259	[18]	Nut	M16
21.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
22.	19M7784	[1]	Screw	M10 X 20
23.	14H1090	[5]	Nut	3/8"
24.	F390748	[1]	Support
25.	19H2710	[4]	Cap Screw	5/8" X 1-3/4"
26.	28H2499	[2]	Bushing	0.742" X 1.050" X 5/8"
27.	F383878	[2]	Pin
28.	19M7794	[2]	Screw	M16 X 50
29.	700627200	[2]	Hook
30.	DT5114	[1]	Isolator
31.	T164510	[1]	Strap
32.	T164713	[2]	Strap
33.	19M7815	[6]	Screw	M12 X 60
34.	14M7401	[6]	Lock Nut	M12
35.	W29909	[2]	U-Bolt
36.	24M7296	[4]	Washer	10.500 X 30 X 2.500 MM
37.	14M7400	[4]	Lock Nut	M10
