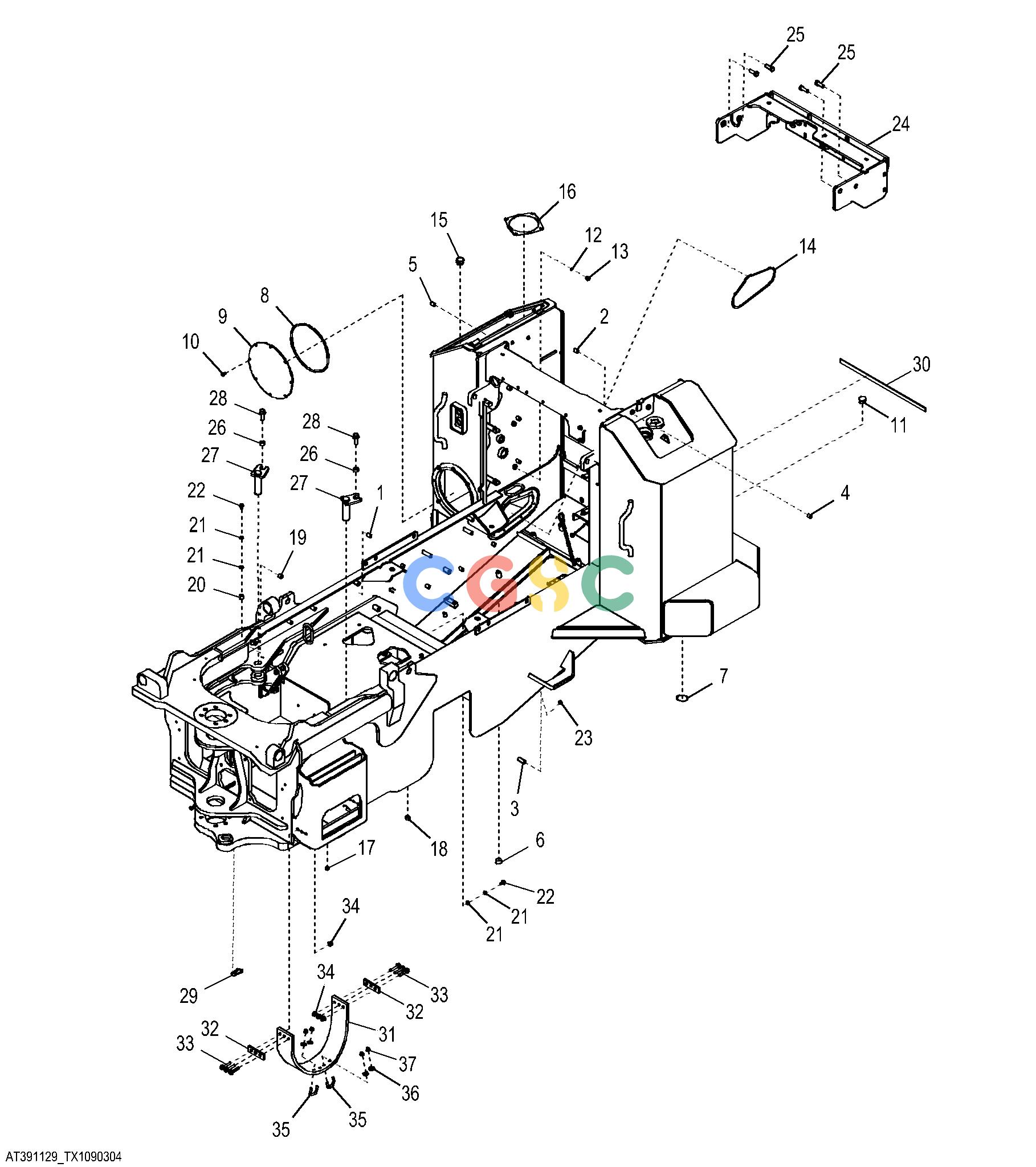

约翰迪尔零件查询643K - FELLER BUNCHER Engine Frame (634168 - )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T72414
|
[5] |
Bushing
|
|
| 2. |
T72414
|
[5] |
Bushing
|
|
| 3. |
T122329
|
[3] |
Bushing
|
|
| 4. |
T72414
|
[1] |
Bushing
|
|
| 5. |
T72414
|
[10] |
Bushing
|
|
| 6. |
15H562
|
[1] |
Pipe Plug
|
|
| 7. |
R43750
|
[1] |
O-Ring
|
|
| 8. |
AT124535
|
[1] |
O-Ring
|
|
| 9. |
T235937
|
[1] |
Door
|
|
| 10. |
T34037
|
[8] |
Screw
|
|
| 11. |
810370500
|
[2] |
Plug
|
|
| 12. |
51M7041
|
[2] |
O-Ring
|
|
| 13. |
15M7071
|
[2] |
Fitting
|
|
| 14. |
F125072
|
[1] |
O-Ring
|
|
| 15. |
R36636
|
[1] |
Fitting Plug
|
|
| 16. |
T246915
|
[1] |
Gasket
|
|
| 17. |
14M7296
|
[9] |
Flange Nut
|
|
| 18. |
14M7259
|
[18] |
Nut
|
|
| 19. |
T72414
|
[7] |
Bushing
|
|
| 20. |
T72414
|
[1] |
Bushing
|
|
| 21. |
24M7239
|
[2] |
Washer
|
|
| 22. |
19M7784
|
[1] |
Screw
|
|
| 23. |
14H1090
|
[5] |
Nut
|
|
| 24. |
F390748
|
[1] |
Support
|
|
| 25. |
19H2710
|
[4] |
Cap Screw
|
|
| 26. |
28H2499
|
[2] |
Bushing
|
|
| 27. |
F383878
|
[2] |
Pin
|
|
| 28. |
19M7794
|
[2] |
Screw
|
|
| 29. |
700627200
|
[2] |
Hook
|
|
| 30. |
........
|
[1] |
Isolator
|
|
| 31. |
T164510
|
[1] |
Strap
|
|
| 32. |
T164713
|
[2] |
Strap
|
|
| 33. |
19M7815
|
[6] |
Screw
|
|
| 34. |
14M7401
|
[6] |
Lock Nut
|
|
| 35. |
W29909
|
[2] |
U-Bolt
|
|
| 36. |
24M7296
|
[4] |
Washer
|
|
| 37. |
14M7400
|
[4] |
Lock Nut
|
|
