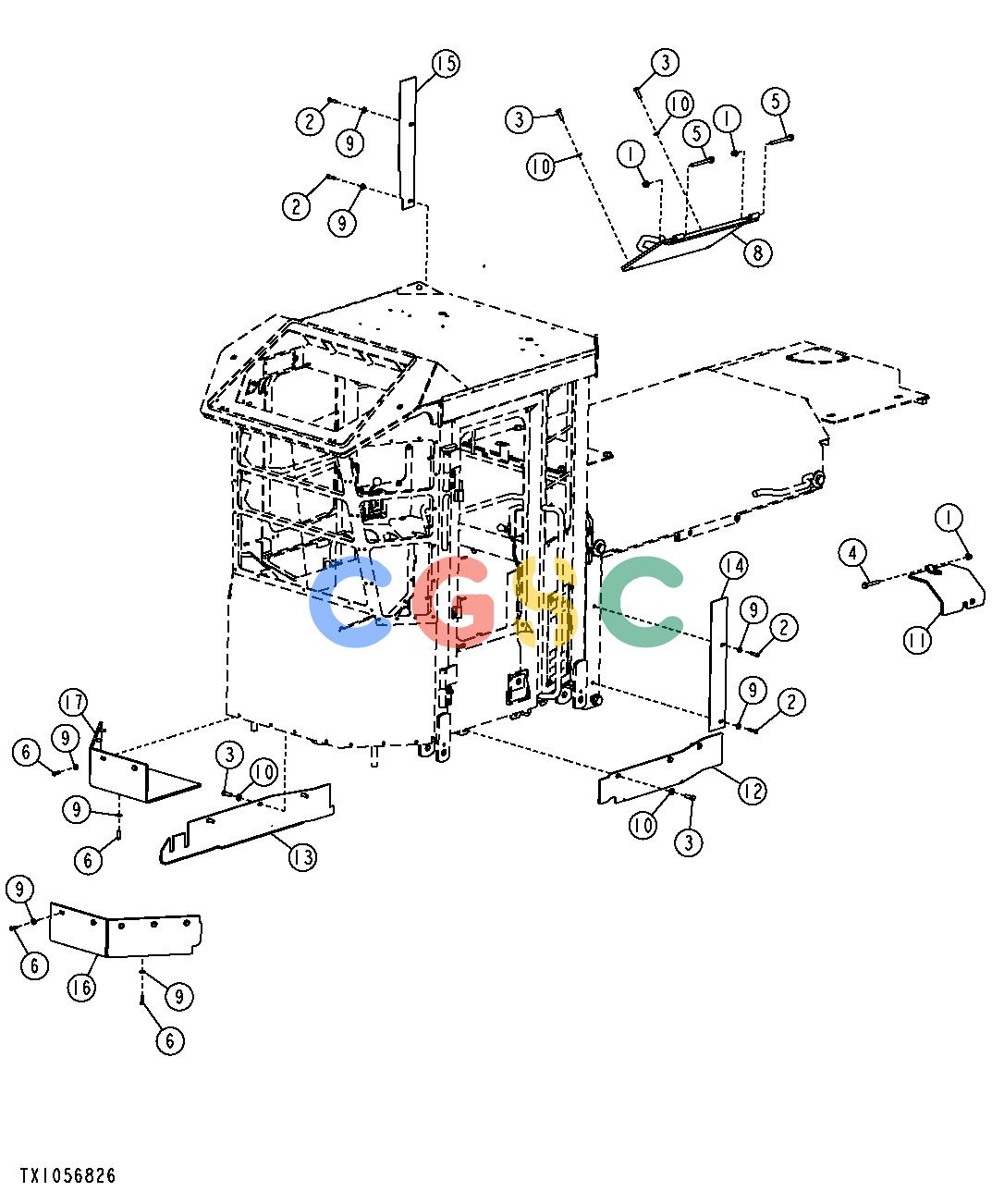

约翰迪尔零件查询643K - FELLER BUNCHER Cab ShieldsEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7401
|
[3] |
Lock Nut
|
|
| 2. |
19M7835
|
[4] |
Screw
|
|
| 3. |
19H2993
|
[8] |
Cap Screw
|
|
| 4. |
19M7819
|
[1] |
Screw
|
|
| 5. |
19M7838
|
[2] |
Screw
|
|
| 6. |
19H3239
|
[12] |
Cap Screw
|
|
| 8. |
AT359582
|
[1] |
Cover
|
|
| 9. |
810309900
|
[12] |
Washer
|
|
| 10. |
R70663
|
[8] |
Washer
|
|
| 11. |
F391177
|
[1] |
Cover
|
|
| 12. |
F392751
|
[1] |
Plate
|
|
| 13. |
F392753
|
[1] |
Shield
|
|
| 14. |
F392755
|
[1] |
Shield
|
|
| 15. |
T230297
|
[1] |
Shield
|
|
| 16. |
T254482
|
[1] |
Shield
|
|
| 17. |
T254483
|
[1] |
Shield
|
|
| 18. |
F435618
|
[AR] |
Seal
|
|
