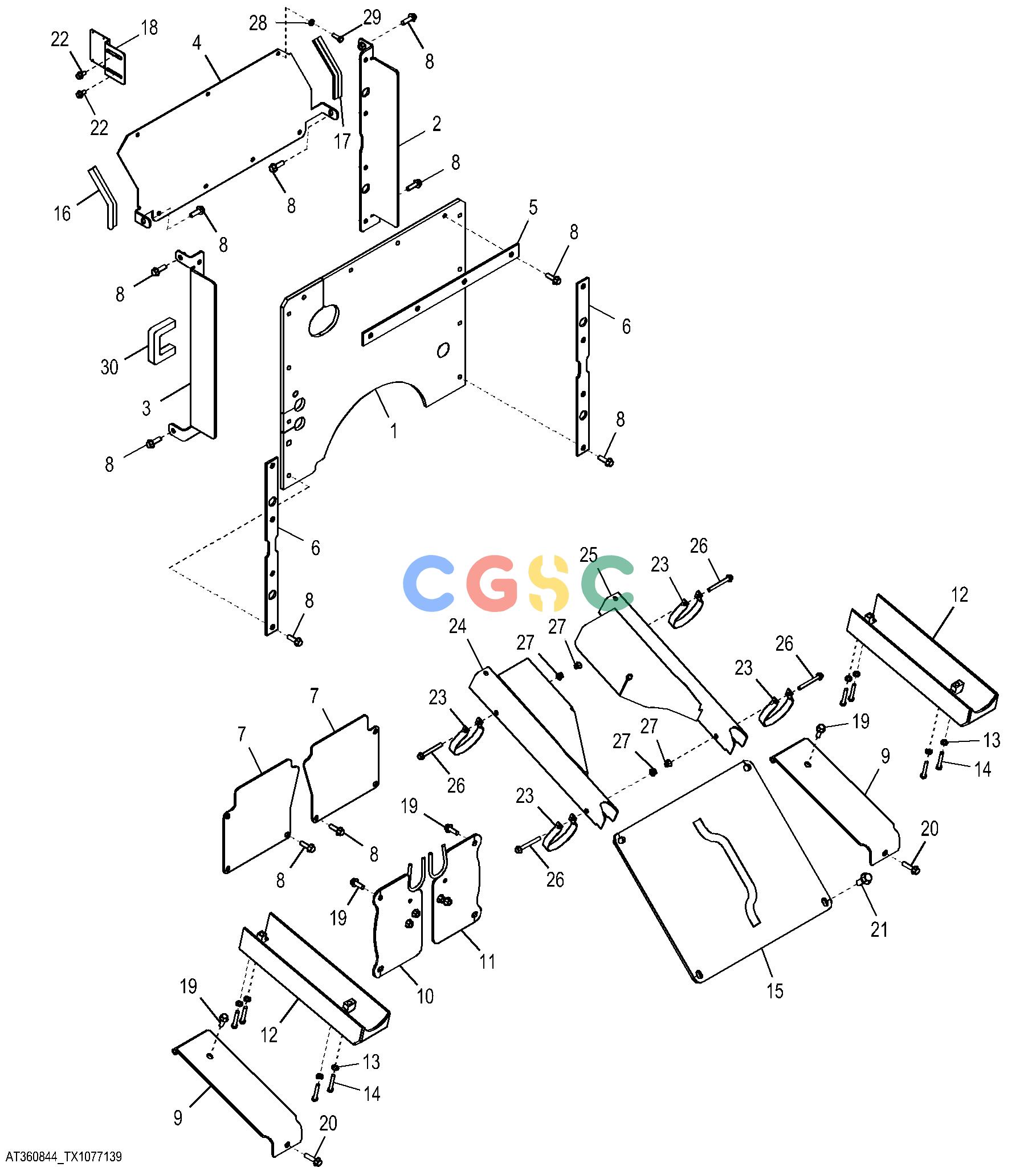

Pos.	Part No	Qty	Parts name	Comments
1.	F390345	[1]	Deflector
1.	T257105	[1]	Deflector
2.	AT369371	[1]	Clamp	(LH)
3.	AT369370	[1]	Clamp	(RH)
4.	AT369322	[1]	Cover	(CA)
5.	F390350	[1]	Plate
6.	F390351	[2]	Plate
7.	T263640	[2]	Cover
8.	19M7791	[4]	Bolt	M12 X 40
9.	AT376091	[2]	Guard	(SUB FOR F391208, APPL)
10.	AT378107	[1]	Guard	(RH) (SUB FOR AT374129)
11.	AT378108	[1]	Guard	(LH) (SUB FOR AT374129)
12.	AT372797	[2]	Guard
13.	24M7239	[8]	Washer	10.700 X 21 X 2.500 MM
14.	19M8499	[1]	Cap Screw	M10 X 60
15.	F390404	[1]	Cover	FRONT
16.	811694300	[1]	Seal
17.	811694300	[1]	Cover
18.	T241803	[1]	Plate
19.	19M7790	[1]	Screw	M12 X 35
20.	19M7814	[2]	Screw	M12 X 50
21.	19M7844	[1]	Screw	M16 X 45
22.	19M7784	[1]	Screw	M10 X 20
23.	T137909	[4]	Clamp
24.	AT362506	[1]	Guard	(RH)
25.	AT362505	[1]	Guard	(LH)
26.	19M7811	[1]	Screw	M10 X 90
27.	14M7400	[4]	Lock Nut	M10
28.	24M7407	[3]	Washer	18 X 28 X 4 MM
29.	19M7662	[1]	Cap Screw	M10 X 30
30.	F393779	[1]	Isolator
