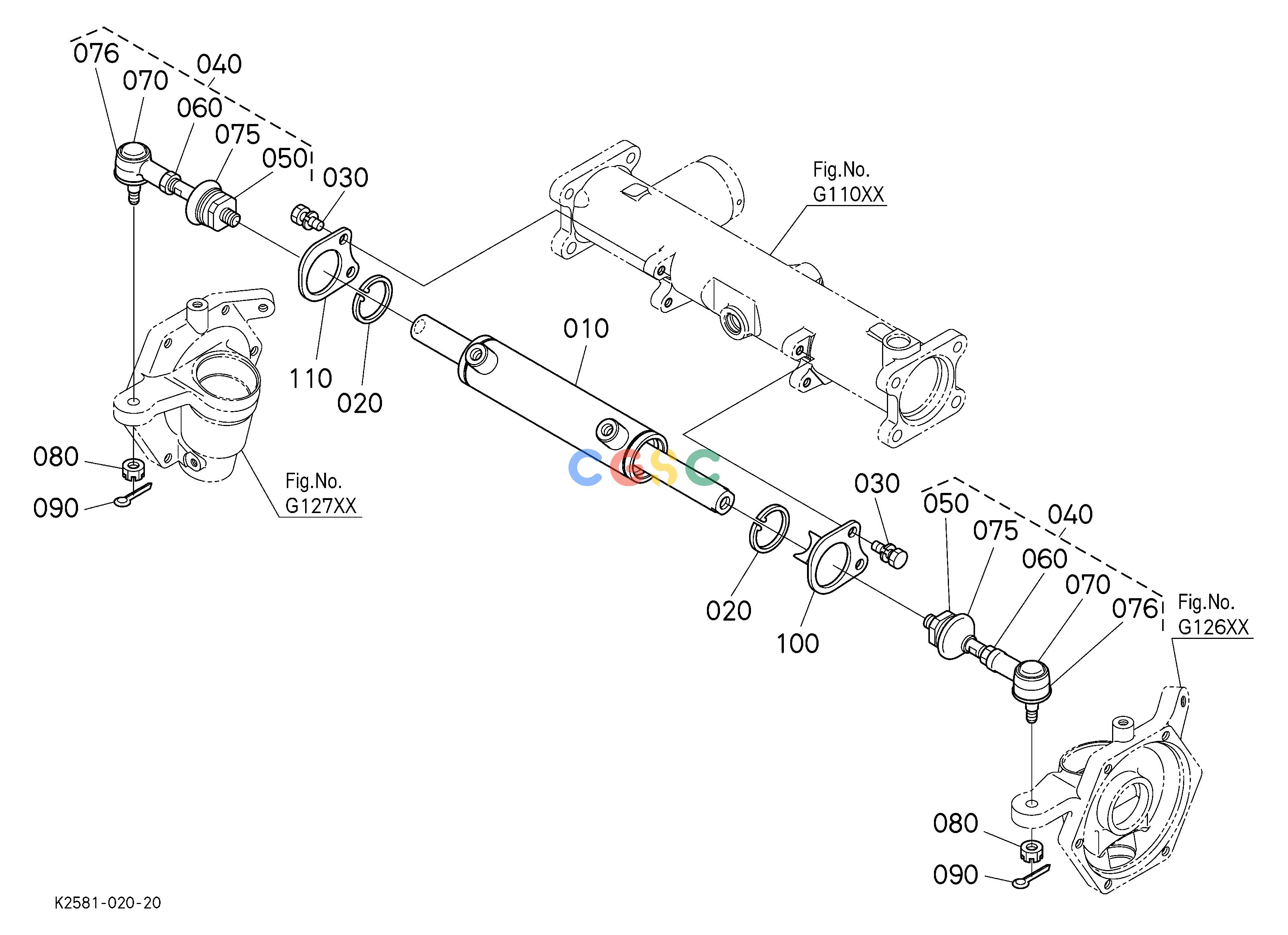

久保田零件查询H12101 STEERING CYLINDER STEERINGEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
972 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K206316500
|
[1] |
ASSY,CYLINDER STEERING
|
7.0620(lbs); 3.210
|
| 020. |
0461200500
|
[2] |
CIR-CLIP,EXTERNAL
|
0.0176(lbs); 0.008
|
| 030. |
0113351030
|
[4] |
BOLT,SEMS
|
0.0550(lbs); 0.025
|
| 040. |
K125316602
|
[2] |
TIE ROD(STEERING)
|
1.1220(lbs); 0.510
|
| 050. |
K125301630
|
[2] |
JOINT(INNER BALL)
|
0.0000(lbs); 0.000
|
| 060. |
K125301640
|
[2] |
NUT(TIE ROD)
|
0.0000(lbs); 0.000
|
| 070. |
K125301650
|
[2] |
TIE ROD(OUTER)
|
0.0000(lbs); 0.000
|
| 075. |
K125301660
|
[2] |
DUST COVER(JOINT)
|
0.0264(lbs); 0.012
|
| 076. |
K125301670
|
[2] |
COVER(DUST,OUTER)
|
0.0220(lbs); 0.010
|
| 080. |
6659156780
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
0551152525
|
[2] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 100. |
K250116620
|
[1] |
HOLDER,LH
|
0.0000(lbs); 0.000
|
| 110. |
K251116630
|
[1] |
HOLDER,RH
|
0.2200(lbs); 0.100
|
