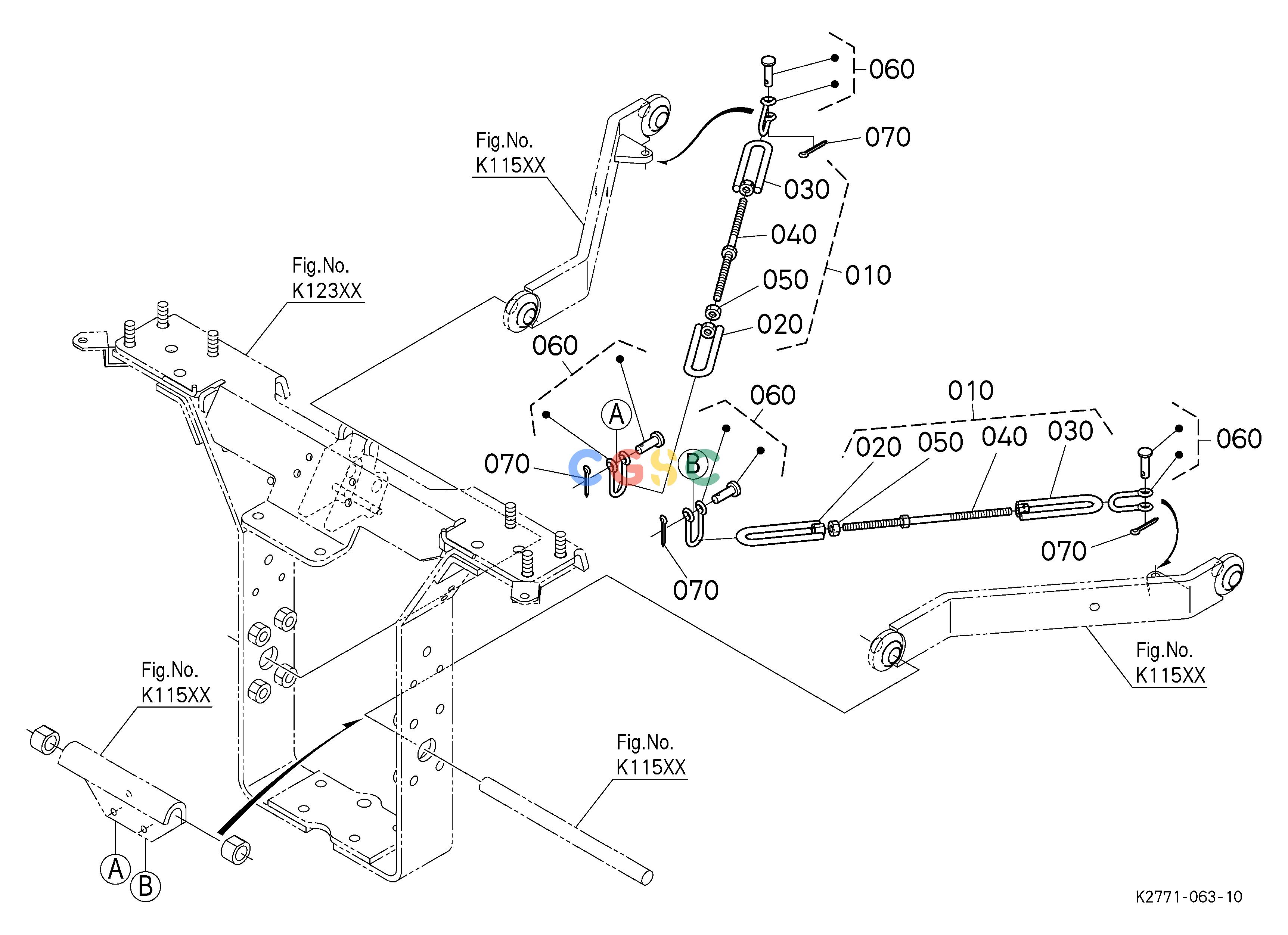

久保田零件查询K11700 CHECK CHAIN TOP LINK/TOP LINK BRACKET/PTO PROTECTOREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
542 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256138300
|
[2] |
CHECK CHAIN,ASSY
|
1.2100(lbs); 0.550
|
| 020. |
K256138310
|
[2] |
NUT,CHECK CHAIN RH
|
0.3652(lbs); 0.166
|
| 030. |
K256138320
|
[2] |
NUT,CHECK CHAIN LH
|
0.3960(lbs); 0.180
|
| 040. |
K256138332
|
[2] |
BOLT,CHECK CHAIN
|
0.4620(lbs); 0.210
|
| 050. |
7559931015
|
[2] |
HEX.NUT(1/2-13UNC)
|
0.0220(lbs); 0.010
|
| 060. |
K256138340
|
[4] |
CLEVIS,ASSY
|
0.1980(lbs); 0.090
|
| 070. |
0551150425
|
[4] |
PIN,SPLIT
|
0.0066(lbs); 0.003
|
