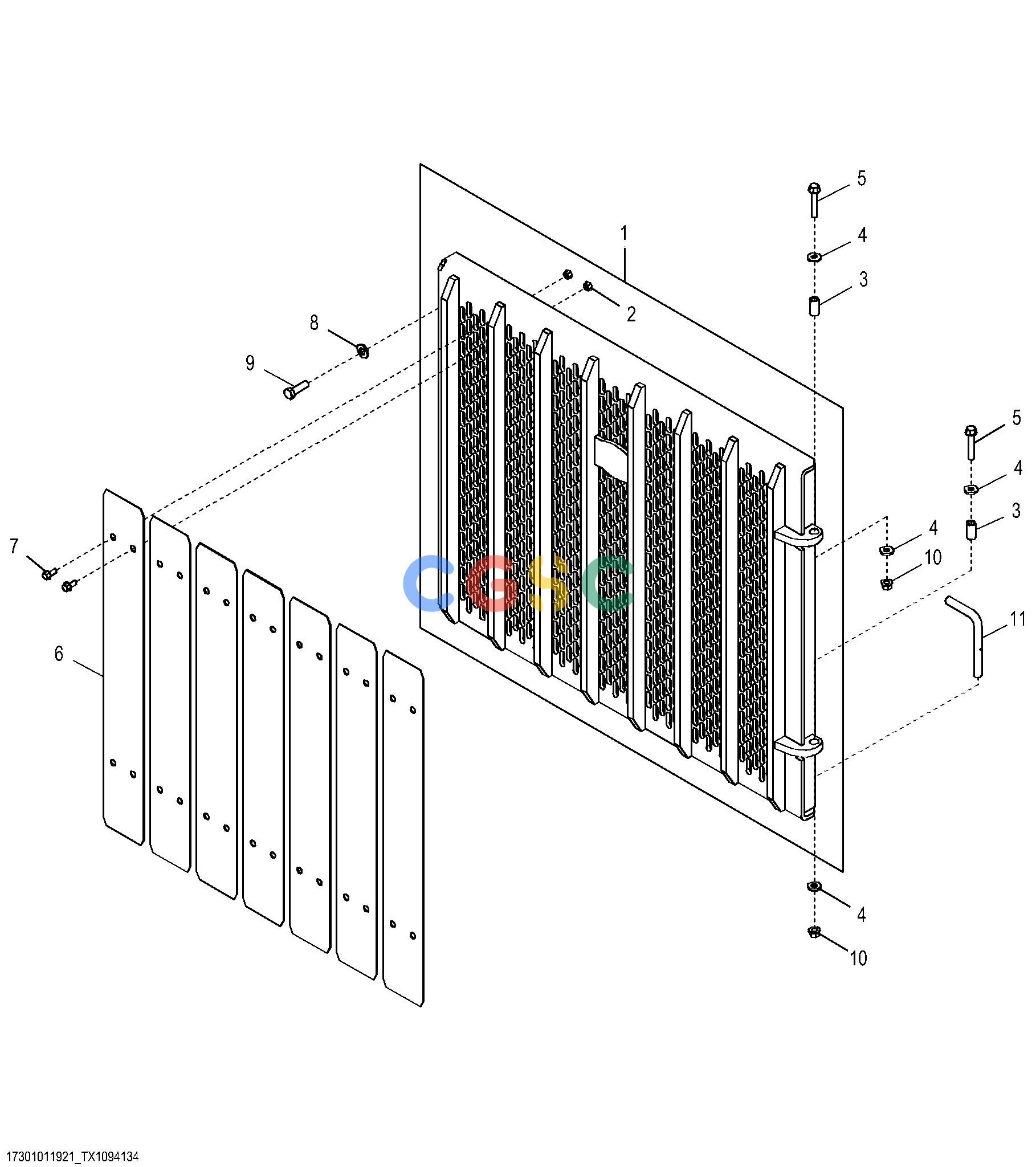

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT347784 | [1] | Grille | |
| 2. | 14M7296 | [28] | Flange Nut | M10 |
| 3. | 28H1676 | [2] | Bushing | 0.546" X 0.840" X 1-5/8" |
| 4. | T29342 | [4] | Washer | |
| 5. | 19H3890 | [2] | Screw | 1/2" X 3" |
| 6. | T239697 | [7] | Screen | |
| 7. | 19M7785 | [28] | Screw | M10 X 25 |
| 8. | 24M7338 | [3] | Washer | 17 X 30 X 3 MM SUB FOR T123563 |
| 9. | 19H2706 | [3] | Cap Screw | 5/8" X 2" |
| 10. | E62934 | [2] | Flange Nut | |
| 11. | F390440 | [1] | Rod | NLA |
