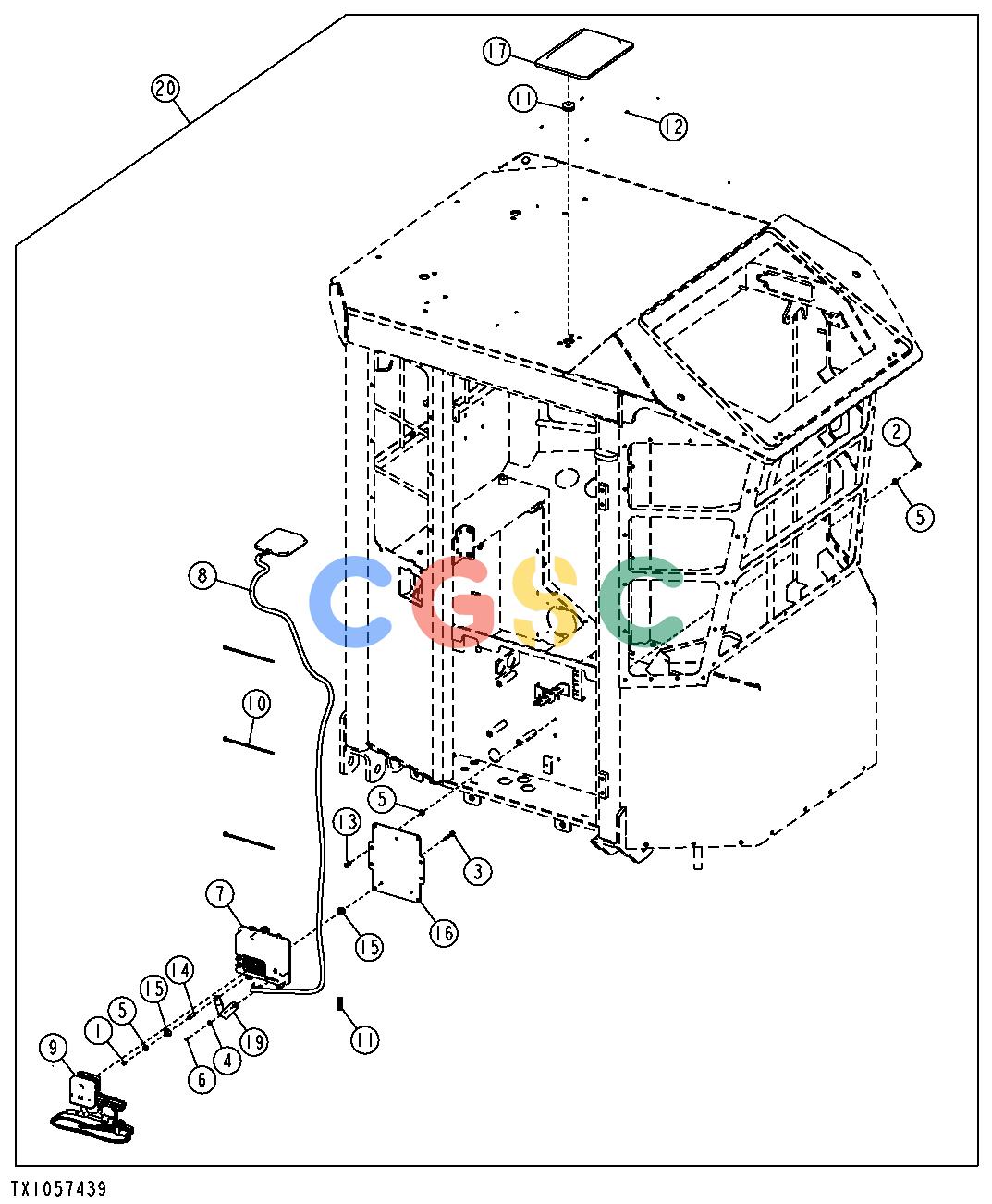

约翰迪尔零件查询643K - FELLER BUNCHER JDLink™ Select (GTT)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
228 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7528
|
[3] |
Lock Nut
|
|
| 2. |
19M7862
|
[4] |
Screw
|
|
| 3. |
19M8321
|
[3] |
Screw
|
|
| 4. |
24H1283
|
[1] |
Washer
|
|
| 5. |
24M7139
|
[11] |
Washer
|
|
| 6. |
37H212
|
[1] |
Screw
|
|
| 7. |
AT336266
|
[1] |
Control Console
|
|
| 7. |
AT347687
|
[1] |
Box
|
|
| 8. |
AT344868
|
[1] |
Antenna
|
|
| 9. |
AT372736
|
[1] |
Wiring Harness
|
|
| 10. |
R44302
|
[3] |
Tie Band
|
|
| 11. |
R65476
|
[2] |
Grommet
|
|
| 12. |
T135675
|
[4] |
Stand-Off
|
|
| 13. |
T196077
|
[4] |
Nut
|
|
| 14. |
T234392
|
[3] |
Spacer
|
|
| 15. |
T234394
|
[6] |
Grommet
|
|
| 16. |
T261467
|
[1] |
Plate
|
|
| 17. |
T248662
|
[1] |
Cover
|
|
| 18. |
PM37463
|
[1] |
Liquid Gasket
|
|
| 19. |
AT209965
|
[1] |
Ground Cable
|
|
| 20. |
........
|
[1] |
Kit
|
|
