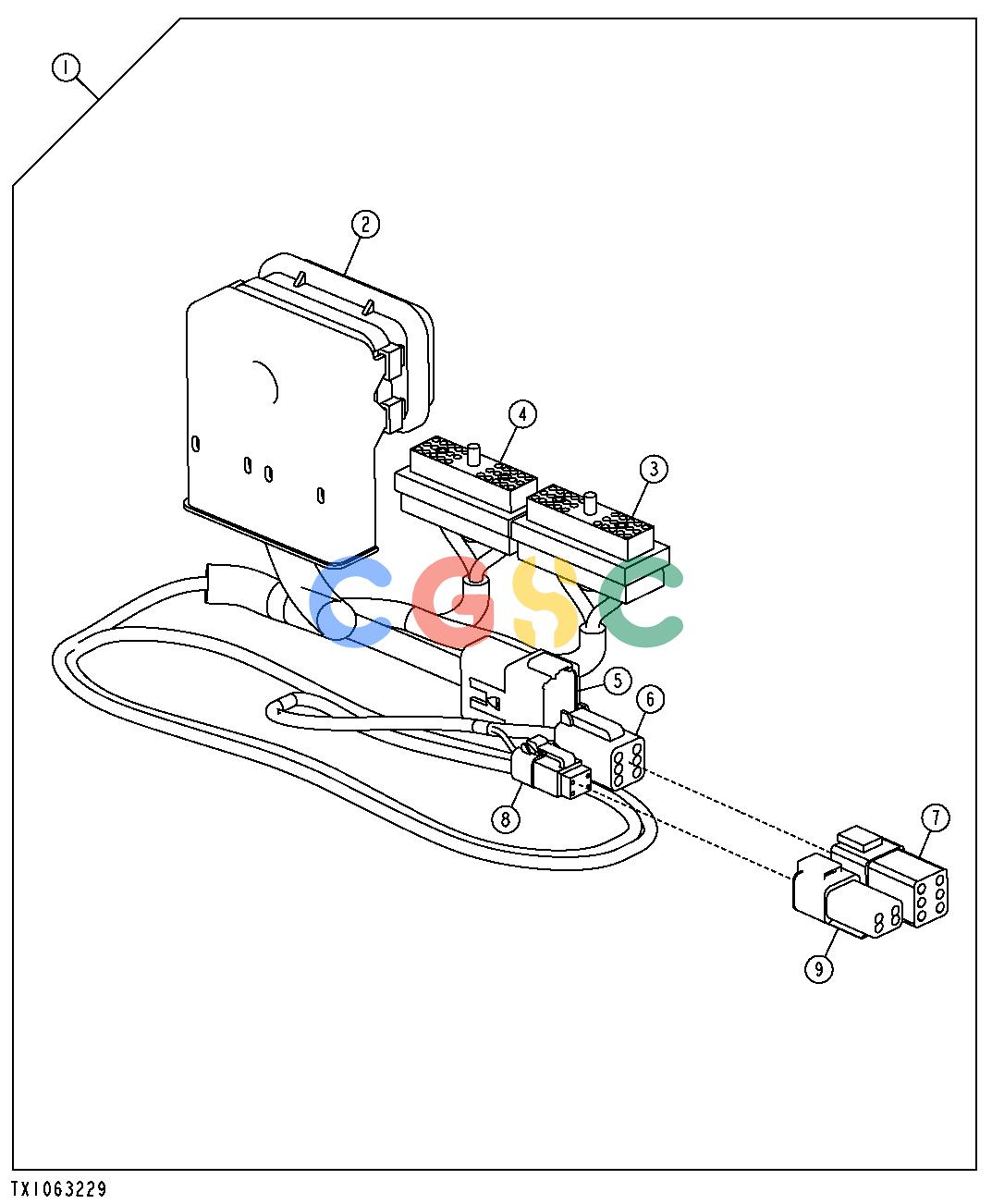

约翰迪尔零件查询643K - FELLER BUNCHER JDLink™ GTT HarnessEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[1] |
Wiring Harness
|
|
| 2. |
57M9932
|
[1] |
Elec. Connector Housing
|
|
| 2. |
R78069
|
[46] |
Elec. Connector Cavity Plug
|
|
| 2. |
57M9806
|
[24] |
Elec. Connector Terminal
|
|
| 3. |
57M9170
|
[1] |
Electrical Connector Assy
|
|
| 3. |
57M7741
|
[18] |
Elec. Connector Terminal
|
|
| 3. |
57M8770
|
[8] |
Elec. Connector Terminal
|
|
| 3. |
57M9806
|
[4] |
Elec. Connector Terminal
|
|
| 4. |
57M9171
|
[1] |
Electrical Connector Assy
|
|
| 4. |
57M7741
|
[22] |
Elec. Connector Terminal
|
|
| 4. |
57M8770
|
[8] |
Elec. Connector Terminal
|
|
| 5. |
57M7633
|
[1] |
Electrical Connector Assy
|
|
| 5. |
R78066
|
[5] |
Elec. Connector Terminal
|
|
| 5. |
57M8264
|
[3] |
Elec. Connector Terminal
|
|
| 5. |
R78069
|
[4] |
Elec. Connector Cavity Plug
|
|
| 5. |
57M7682
|
[1] |
Elec.Connect Locking Device
|
|
| 6. |
57M8012
|
[1] |
Electrical Connector Assy
|
|
| 6. |
R78069
|
[1] |
Elec. Connector Cavity Plug
|
|
| 6. |
R78065
|
[5] |
Elec. Connector Terminal
|
|
| 6. |
57M8013
|
[1] |
Elec.Connect Locking Device
|
|
| 7. |
57M7629
|
[1] |
Elec. Connector Housing
|
|
| 7. |
R78069
|
[1] |
Elec. Connector Cavity Plug
|
|
| 8. |
57M9076
|
[1] |
Elec. Connector Housing
|
|
| 8. |
57M7684
|
[4] |
Elec. Connector Terminal
|
|
| 8. |
57M9077
|
[1] |
Elec. Connector Accessory
|
|
| 9. |
57M9918
|
[1] |
Elec. Connector Housing
|
|
| 9. |
57M7771
|
[1] |
Elec. Connector Terminal
|
|
