约翰迪尔零件查询850 - BACKHOE Boom CylinderEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
950 次

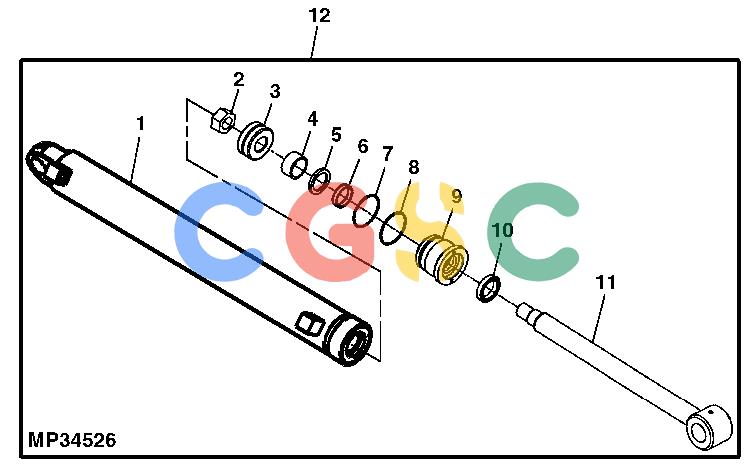

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT326496
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 2. |
PT14365
|
[1] |
Lock Nut
|
|
| 3. |
LVU12341
|
[1] |
Piston
|
|
| 4. |
........
|
[1] |
Wear Ring
|
|
| 5. |
........
|
[1] |
Seal
|
|
| 6. |
........
|
[1] |
Seal
|
|
| 7. |
........
|
[1] |
O-Ring
|
|
| 8. |
........
|
[1] |
Back-Up Ring
|
|
| 9. |
LVA11356
|
[1] |
Guide
|
|
| 10. |
........
|
[1] |
Seal
|
|
| 11. |
AT326497
|
[1] |
Rod
|
|
| 12. |
AT326467
|
[1] |
Hydraulic Cylinder
|
|
| 13. |
JD7842
|
[1] |
Lubrication Fitting
|
|
| 14. |
M138797
|
[1] |
Lubrication Fitting
|
|
| ... |
LVA11358
|
[1] |
Seal Kit
|
|
