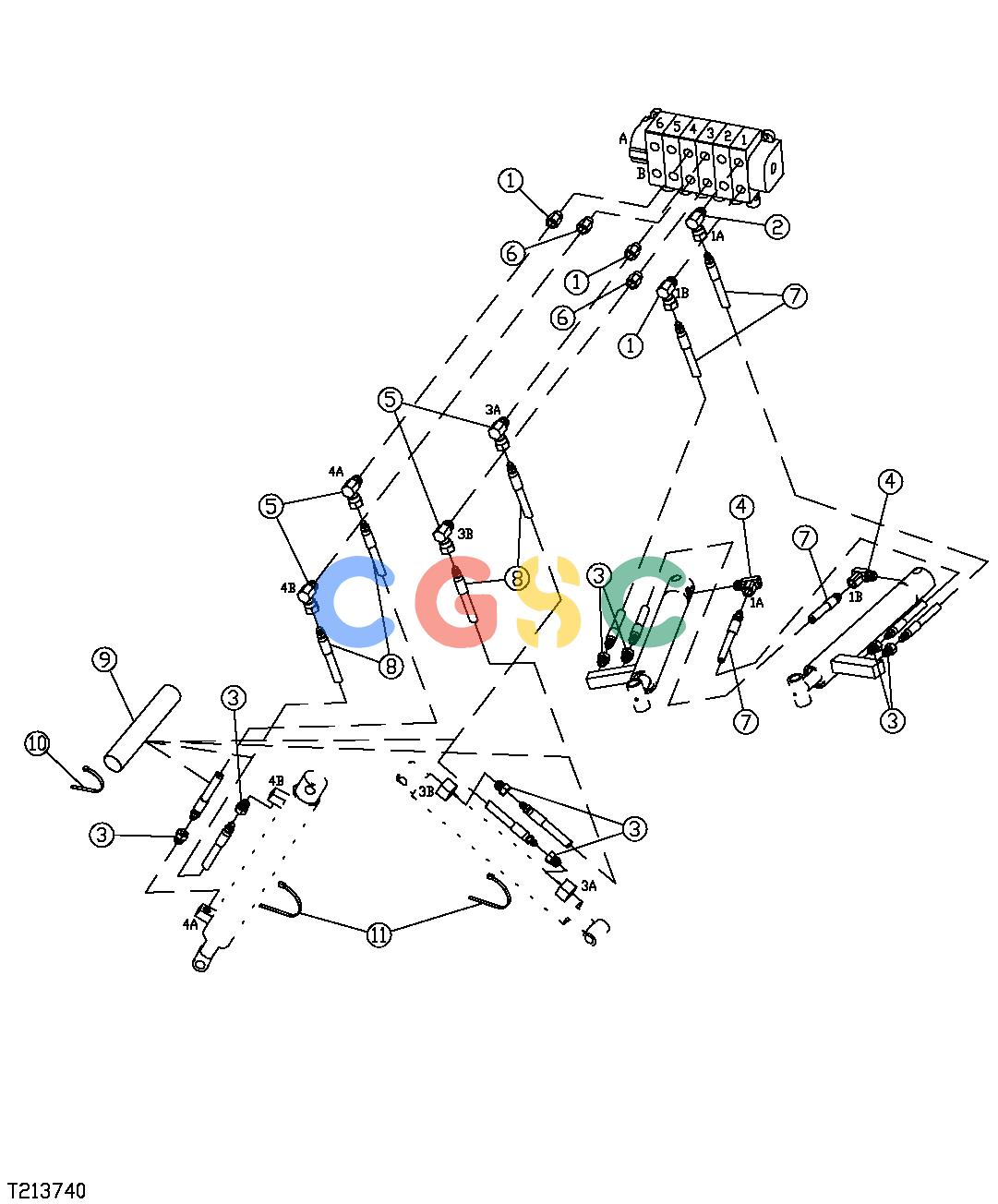

约翰迪尔零件查询850 - BACKHOE Hydraulic Hoses (Swing and Stabilizer Cylinders)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 1016 次

Pos.	Part No	Qty	Parts name	Comments
1.	38H1445	[2]	Adapter Fitting	(SUB FOR AT326357)
1.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
1.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
2.	AT326346	[2]	Union Fitting
3.	38H1168	[8]	Adapter Fitting	(SUB FOR AT326349)
3.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
3.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
4.	38H1009	[2]	Elbow Fitting	(SUB FOR AT326351)
4.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
4.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
5.	38H1093	[4]	Elbow Fitting	(SUB FOR AT326350)
5.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
6.	38H1159	[2]	Adapter Fitting	(SUB FOR AT326358)
6.	R28782	[1]	O-Ring	8.915 X 1.829 MM (0.351" X 0.072")
6.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
7.	AT326469	[4]	Hydraulic Hose - Fabricate
8.	AT326470	[4]	Hydraulic Hose - Fabricate
9.	M96125	[1]	Sleeve
10.	H77698	[1]	Tie Band
11.	M73027	[2]	Tie Band
