约翰迪尔零件查询850 - BACKHOE Hydraulic Hoses (Boom, Bucket and Dipperstick Cylinders)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 758 次

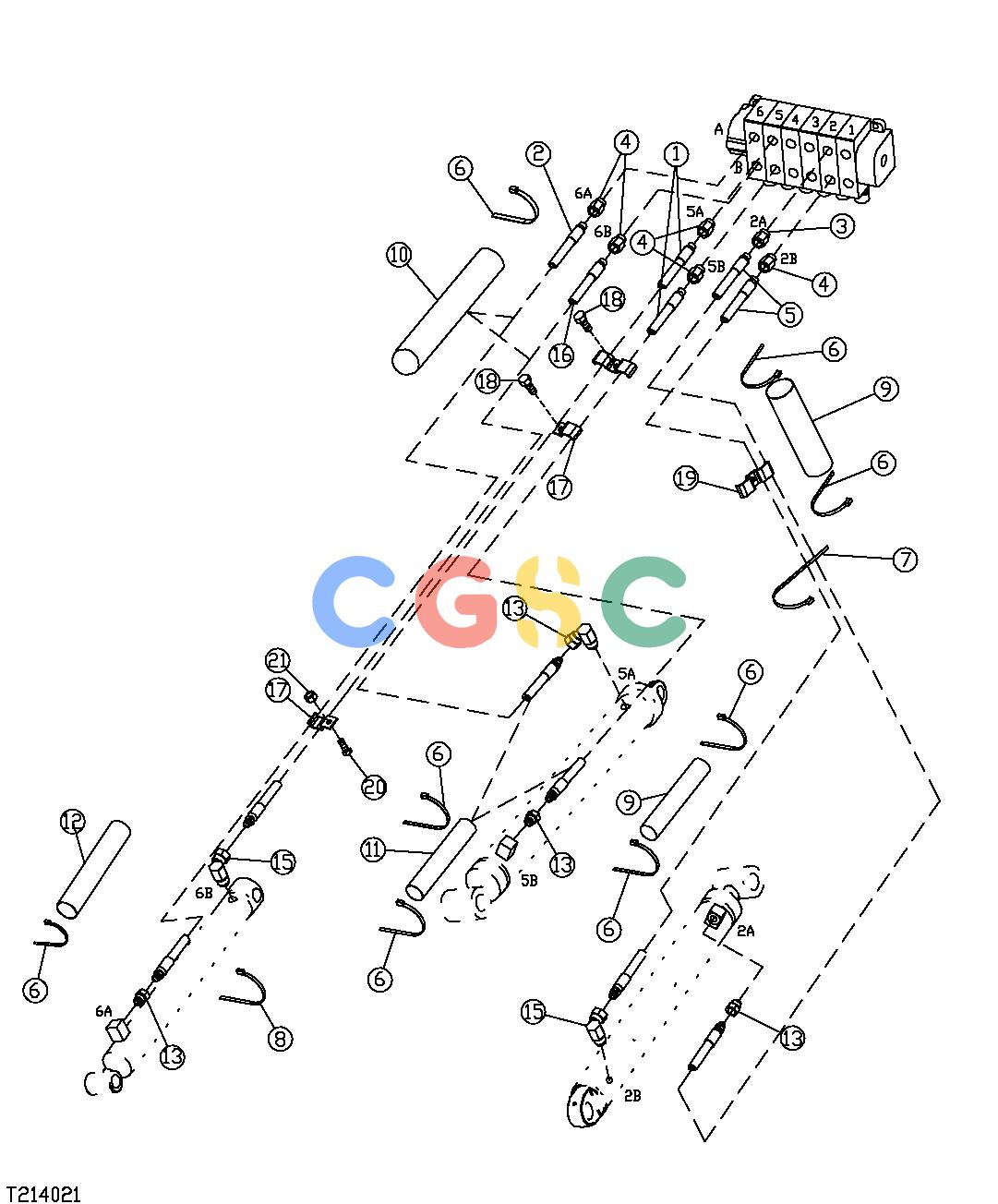

Pos.	Part No	Qty	Parts name	Comments
1.	AT326471	[1]	Hydraulic Hose - Fabricate
2.	AT326473	[1]	Hydraulic Hose - Fabricate
3.	38H1309	[1]	Adapter Fitting	(SUB FOR AT326360)
3.	R28782	[1]	O-Ring	8.915 X 1.829 MM (0.351" X 0.072")
3.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
4.	38H1171	[1]	Adapter Fitting	(SUB FOR AT326359)
4.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
4.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
5.	AT326158	[1]	Hydraulic Hose - Fabricate
6.	H77698	[1]	Tie Band
7.	M118649	[1]	Tie Band
8.	M73027	[1]	Tie Band
9.	T218418	[1]	Sleeve
10.	T218417	[1]	Sleeve
11.	T218414	[1]	Sleeve
12.	XAS-B-22	[1]	Hose Sleeve - Fabricate
13.	38H1160	[1]	Adapter Fitting	(SUB FOR AT326353)
13.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
13.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
15.	38H1004	[1]	Elbow Fitting
15.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
15.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
16.	AT326472	[1]	Hydraulic Hose - Fabricate
17.	T218130	[1]	Hose Clamp
18.	37H57	[1]	Screw	5/16" X 3/4"
19.	LVU16546	[1]	Hose Clamp
20.	19H1900	[1]	Cap Screw	5/16" X 3/4"
21.	H76696	[1]	Lock Nut
