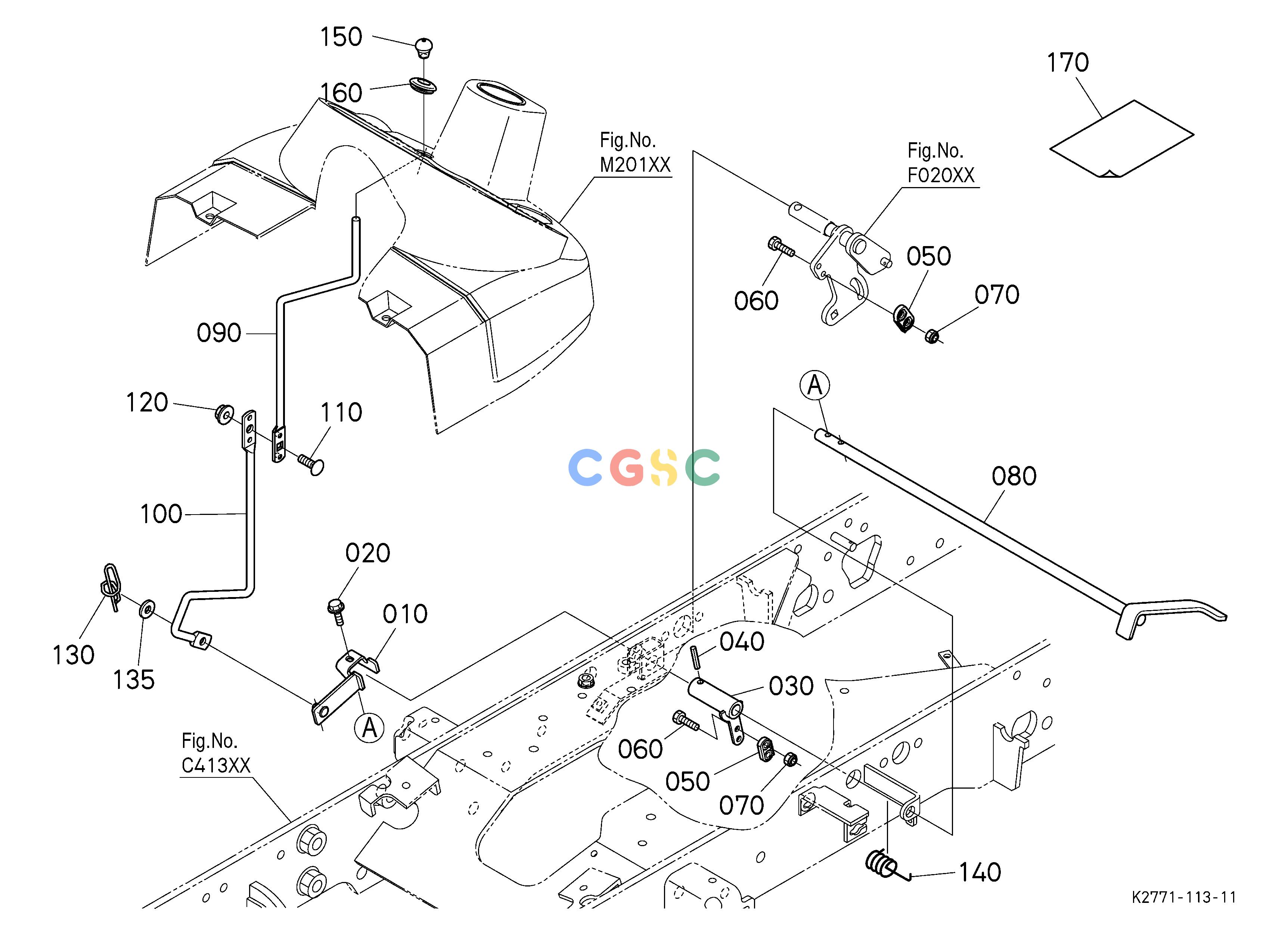

久保田零件查询U83300 CRUISE CONTROL KIT (W/G No. BX7360) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
979 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K277143410
|
[1] |
ARM(CRUISE)
|
0.0000(lbs); 0.000
|
| 020. |
0175450625
|
[1] |
BOLT,FLANGE
|
0.0176(lbs); 0.008
|
| 030. |
K277143450
|
[1] |
PLATE(CRUISE)
|
0.0000(lbs); 0.000
|
| 040. |
0541100625
|
[1] |
PIN,SPRING
|
0.0088(lbs); 0.004
|
| 050. |
K257143424
|
[2] |
LOCK,CRUISE
|
0.0330(lbs); 0.015
|
| 060. |
0105350620
|
[4] |
HEX.BOLT
|
0.0132(lbs); 0.006
|
| 070. |
0255250060
|
[4] |
NUT,LOCKING
|
0.0044(lbs); 0.002
|
| 080. |
K277143432
|
[1] |
ARM(RELEASE)
|
0.0000(lbs); 0.000
|
| 090. |
K258143534
|
[1] |
ROD,CRUISE UPPER
|
0.3300(lbs); 0.150
|
| 100. |
K273143520
|
[1] |
ROD(CRUISE,LOWER)
|
0.0000(lbs); 0.000
|
| 110. |
K112291332
|
[1] |
BOLT(SHORT SQ. NECK,M8 1.25)
|
0.0330(lbs); 0.015
|
| 120. |
0275150080
|
[1] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 130. |
K121191122
|
[1] |
RUE RING COTTER
|
0.0022(lbs); 0.001
|
| 135. |
K318142332
|
[1] |
WASHER(PLAIN)
|
0.0000(lbs); 0.000
|
| 140. |
K277143542
|
[1] |
SPRING(CRUISE)
|
0.0000(lbs); 0.000
|
| 150. |
K258143562
|
[1] |
GRIP
|
0.0066(lbs); 0.003
|
| 160. |
K258143570
|
[1] |
COVER,ROD
|
0.0110(lbs); 0.005
|
| 170. |
99999-99999
|
[1] |
MANUAL,INST.(CRUISE)
|
0.0000(lbs); 0.000
|
