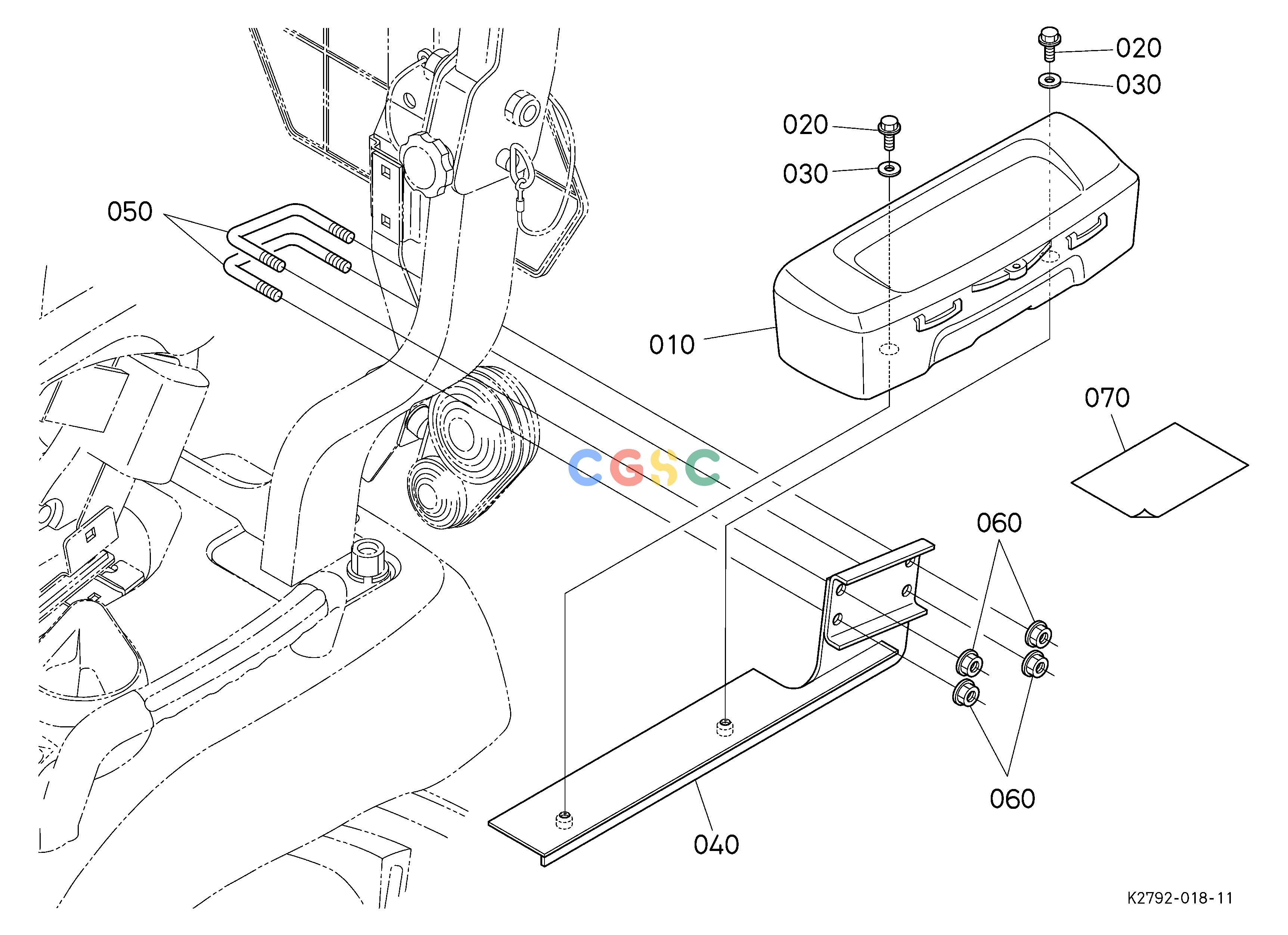

久保田零件查询U91500 TOOL BOX KIT (W/G No. BX3058) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
580 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC42018510
|
[1] |
CASE,TOOLS
|
0.8580(lbs); 0.390
|
| 020. |
0175450820
|
[2] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
| 030. |
0401550080
|
[2] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 040. |
K279296350
|
[1] |
BRACKET(TOOLBOX)
|
0.0000(lbs); 0.000
|
| 050. |
7K50466600
|
[2] |
BOLT,U
|
0.0000(lbs); 0.000
|
| 060. |
0277150100
|
[4] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 070. |
99999-99999
|
[1] |
MANUAL,INST.(TOOLBOX
|
0.0000(lbs); 0.000
|
