约翰迪尔零件查询850 - BACKHOE Backhoe Boom, Dipperstick and BucketEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 358 次

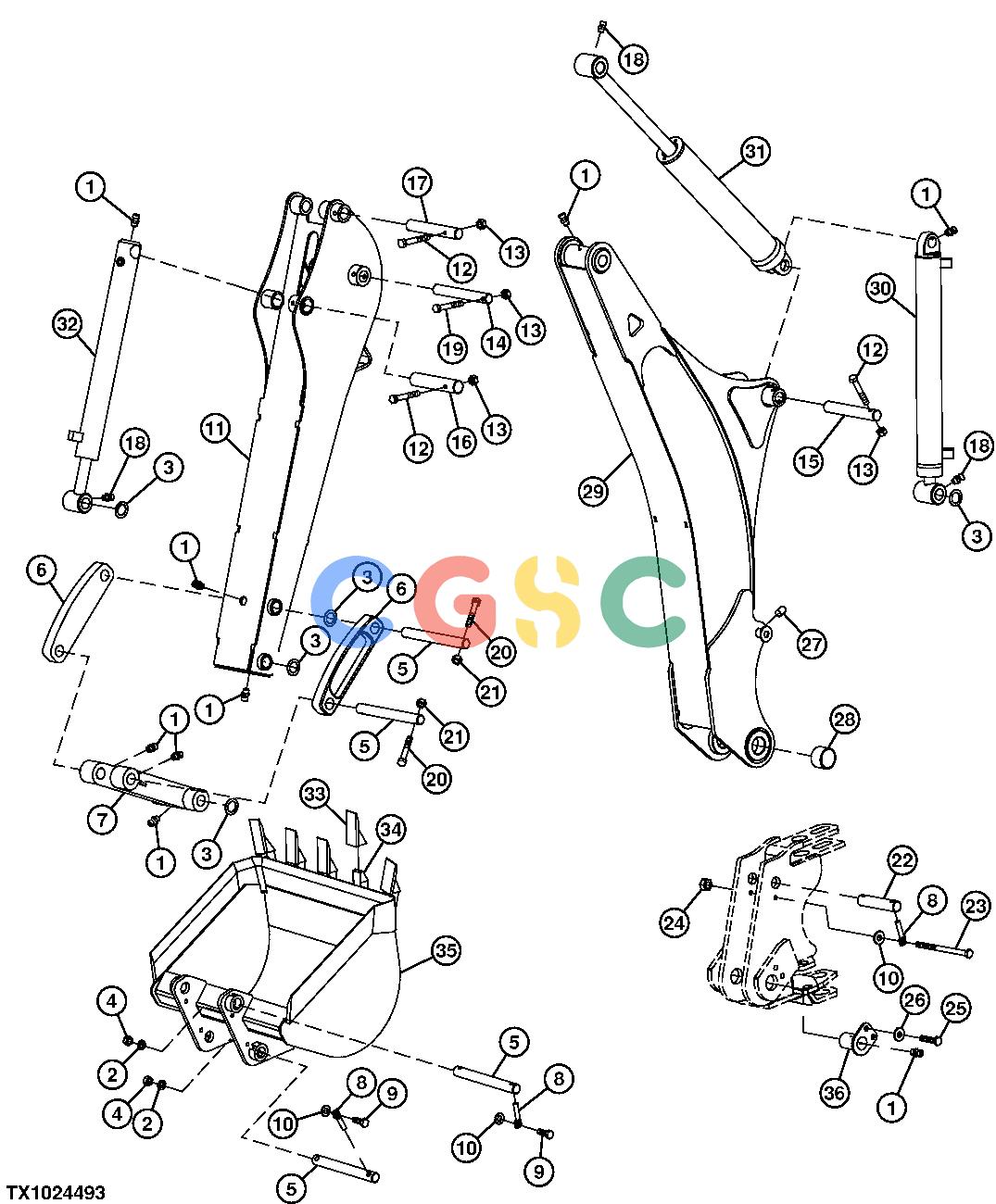

Pos.	Part No	Qty	Parts name	Comments
1.	JD7844	[9]	Lubrication Fitting
2.	12H304	[2]	Lock Washer	3/8"
3.	M138023	[5]	Bushing
4.	14H846	[2]	Nut	3/8"
5.	PT10435	[4]	Pin Fastener
6.	T218119	[2]	Link
7.	LVA11319	[1]	Link
8.	M118631	[3]	Retainer
9.	19H1946	[2]	Cap Screw	3/8" X 1-1/4"
10.	24M7106	[3]	Washer	10 X 18 X 2.500 MM
11.	AT326455	[1]	Dipperstick
12.	M139053	[3]	Bolt
13.	F3220R	[4]	Lock Nut
14.	T218122	[1]	Pin
15.	T218123	[1]	Pin
16.	T218121	[1]	Pin
17.	T218120	[1]	Pin
18.	M138797	[3]	Lubrication Fitting
19.	M138017	[1]	Bolt
20.	19H3520	[2]	Cap Screw	1/2" X 3-1/4"
21.	F2855R	[2]	Lock Nut
22.	T218124	[1]	Pin
23.	19H3894	[1]	Cap Screw	3/8" X 5-1/2"
24.	H99923	[1]	Lock Nut
25.	19H2103	[1]	Cap Screw	1/2" X 1"
26.	M143741	[1]	Washer
27.	AT326455	[1]	Dipperstick
28.	T218116	[1]	Bearing
29.	AT326456	[1]	Backhoe Boom
30.	AT326467	[1]	Hydraulic Cylinder	BLACK PAINT
31.	AT326468	[1]	Hydraulic Cylinder	BLACK PAINT
32.	KV26386	[1]	Hydraulic Cylinder	YELLOW PAINT
33.	T3C	[AR]	Tooth
34.	T716X3C	[AR]	Bucket Tooth Adapter
35.	KV18239	[1]	Backhoe Bucket	(14 IN.) (WHOLEGOODS) PIN ON
35.	KV18240	[1]	Backhoe Bucket	(18 IN.) (WHOLEGOODS) PIN ON
35.	KV18241	[1]	Backhoe Bucket	(24 IN.) (WHOLEGOODS) PIN ON
35.	KV18242	[1]	Backhoe Bucket	(36 IN.) (WHOLEGOODS) PIN ON
35.	AT316552	[1]	Backhoe Bucket	(12 IN.) (WHOLEGOODS) QUICK COUPLER
35.	AT316553	[1]	Backhoe Bucket	(18 IN.) (WHOLEGOODS) QUICK COUPLER
35.	AT316554	[1]	Backhoe Bucket	(24 IN.) (WHOLEGOODS) QUICK COUPLER
35.	AT316555	[1]	Backhoe Bucket	(30 IN.) (WHOLEGOODS) QUICK COUPLER
36.	AT326199	[1]	Frame
