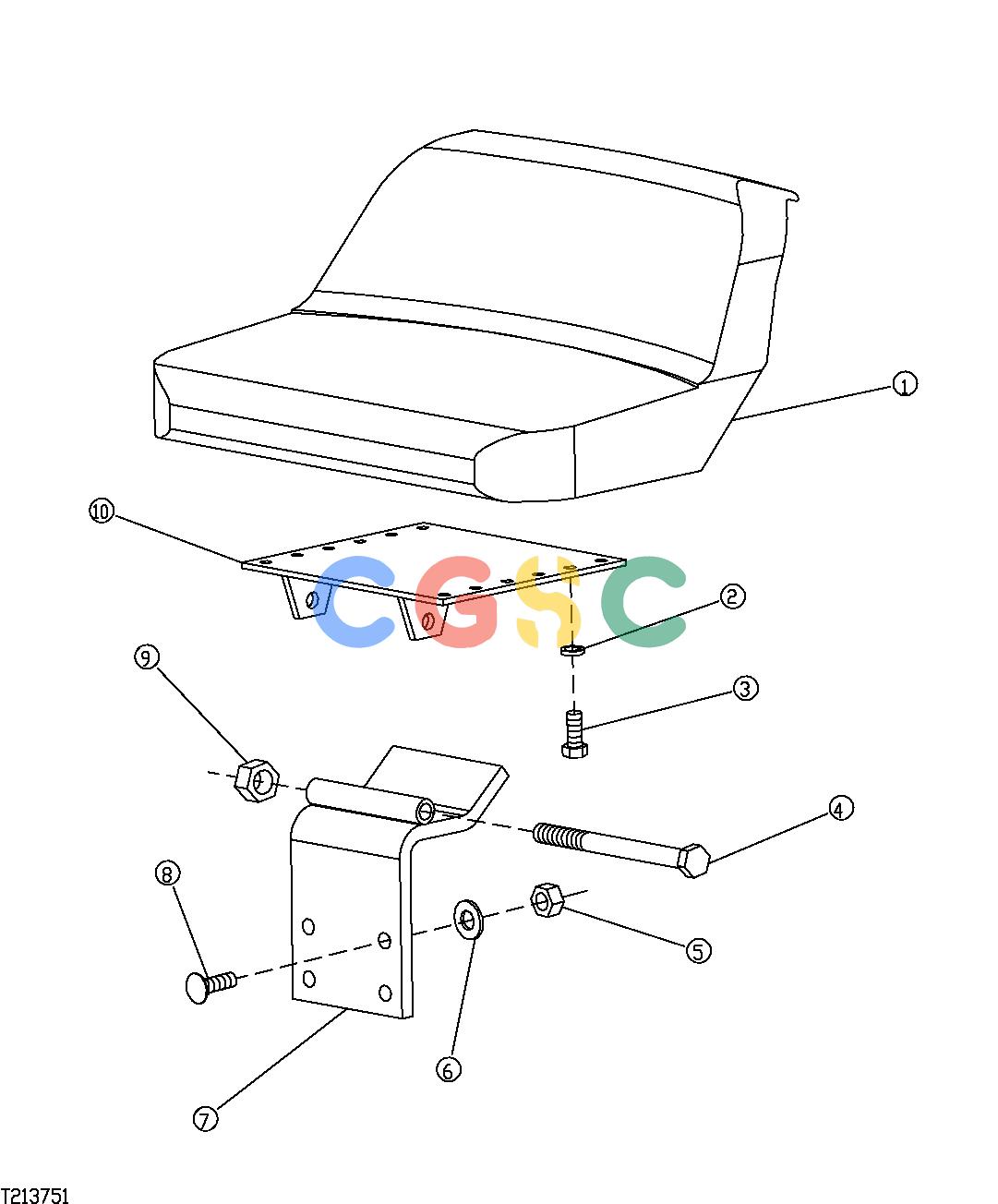

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | LVU16696 | [1] | Seat | |
| 2. | 12H303 | [8] | Lock Washer | 5/16" |
| 3. | 19H1900 | [5] | Cap Screw | 5/16" X 3/4" |
| 4. | M138018 | [1] | Bolt | |
| 5. | 14H1040 | [4] | Nut | 1/2" |
| 6. | 12H301 | [4] | Lock Washer | 1/2" |
| 7. | KV17062 | [1] | Bracket | |
| 8. | 03H1764 | [4] | Bolt | 1/2" X 1-3/4" |
| 9. | F2855R | [1] | Lock Nut | |
| 10. | AT315411 | [1] | Bracket |
