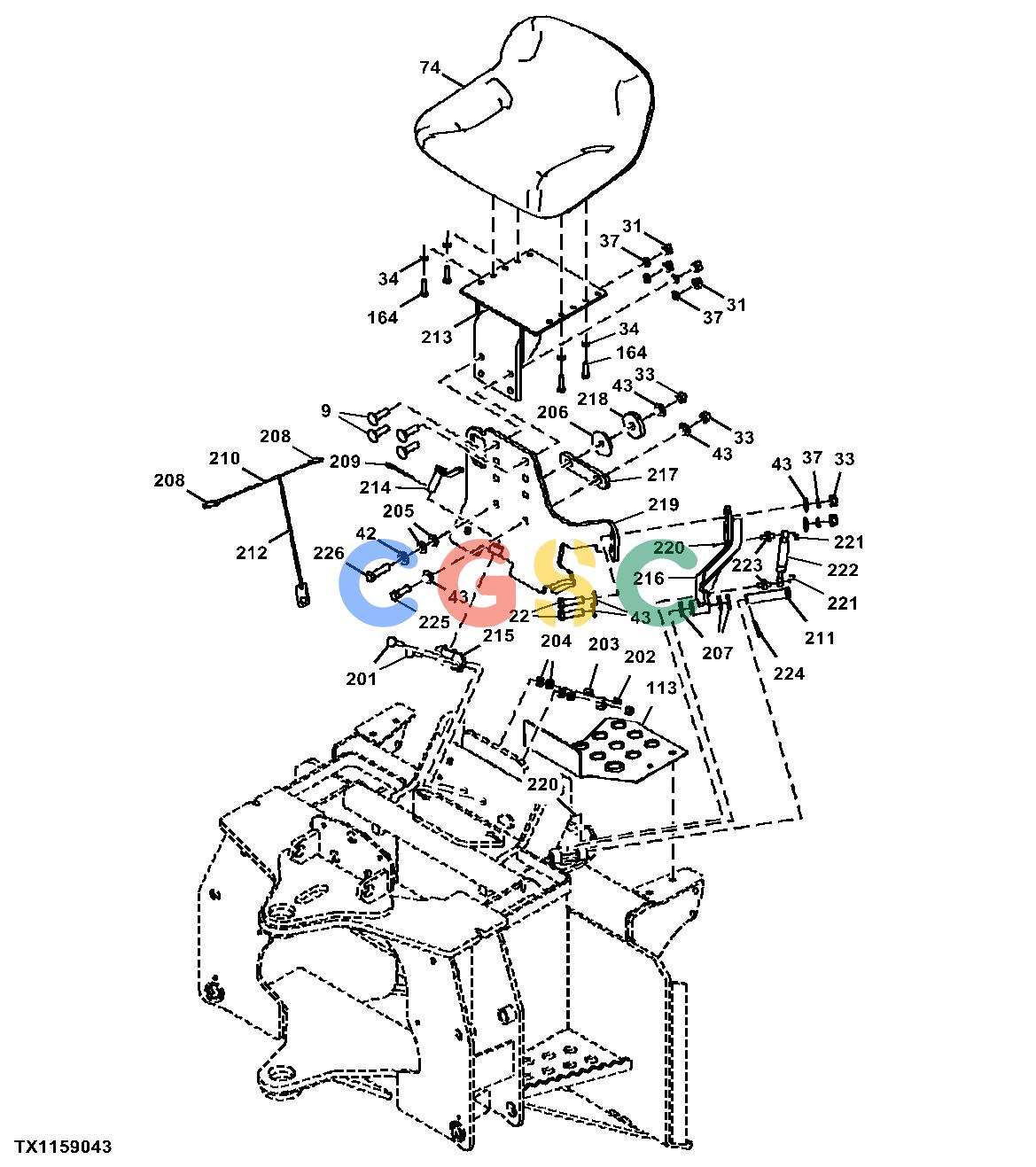

约翰迪尔零件查询850 - BACKHOE Tilt Seat and Seat Bracket (000088 - )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
301 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 9. |
03H1764
|
[4] |
Bolt
|
|
| 22. |
19H2441
|
[4] |
Cap Screw
|
|
| 31. |
14H1040
|
[4] |
Nut
|
|
| 33. |
F2855R
|
[4] |
Lock Nut
|
|
| 34. |
12H303
|
[8] |
Lock Washer
|
|
| 37. |
12H301
|
[6] |
Lock Washer
|
|
| 42. |
M143741
|
[8] |
Washer
|
|
| 43. |
24H1111
|
[10] |
Washer
|
|
| 74. |
LVU25727
|
[1] |
Seat
|
|
| 113. |
T352960
|
[1] |
Plate
|
|
| 164. |
19H1849
|
[4] |
Cap Screw
|
|
| 201. |
03H1558
|
[2] |
Bolt
|
|
| 202. |
H99923
|
[2] |
Lock Nut
|
|
| 203. |
24H1122
|
[2] |
Washer
|
|
| 204. |
T352956
|
[4] |
Washer
|
|
| 205. |
T352957
|
[2] |
Washer
|
|
| 206. |
T352958
|
[1] |
Washer
|
|
| 207. |
24H1930
|
[3] |
Washer
|
|
| 208. |
T30535
|
[2] |
Back-Up Ring
|
|
| 209. |
A3581R
|
[1] |
Spring Locking Pin
|
|
| 210. |
AT444812
|
[1] |
Cable
|
|
| 211. |
T352959
|
[1] |
Pin
|
|
| 212. |
AM127747
|
[1] |
Spindle
|
|
| 213. |
AT444814
|
[1] |
Bracket
|
|
| 214. |
AT444816
|
[1] |
Pin
|
|
| 215. |
AT444817
|
[1] |
Bracket
|
|
| 216. |
AT444818
|
[1] |
Bracket
|
|
| 217. |
T352961
|
[1] |
Plate
|
|
| 218. |
T352962
|
[1] |
Washer
|
|
| 219. |
AT444819
|
[1] |
Bracket
|
|
| 220. |
14M7151
|
[2] |
Nut
|
|
| 221. |
56M7007
|
[2] |
Ball Joint Retainer
|
|
| 222. |
MIA10190
|
[1] |
Gas Operated Cylinder
|
|
| 223. |
R237474
|
[2] |
Ball Stud
|
|
| 224. |
34H60
|
[1] |
Spring Pin
|
|
| 225. |
19H2509
|
[1] |
Cap Screw
|
|
| 226. |
19H2528
|
[1] |
Cap Screw
|
|
