约翰迪尔零件查询92 - BACKHOE CONTROL VALVE FOR CLOSED-CENTER HYDRAULIC SYSTEM (SERIAL NO. 003301- ) [A19]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 871 次

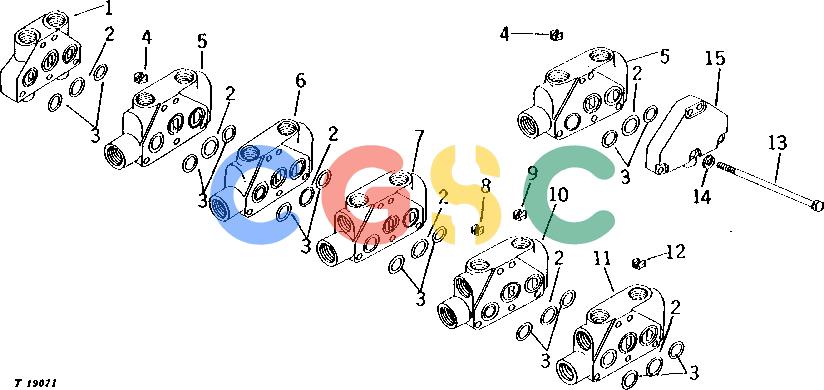

Pos.	Part No	Qty	Parts name	Comments
1.	U41161	[1]	Port Plate
2.	........	[7]	O-Ring	1/16" X 1-3/4" O.D. (SUB FOR U15415, THIS APPLICATION) ( T68667 NO LONGER AVAILABLE)
3.	........	[14]	O-Ring	1/16" X 1-1/8" O.D. (SUB FOR U11326, THIS APPLICATION) ( T68666 NO LONGER AVAILABLE)
4.	U41164	[2]	Orifice	.098"
5.	AU41882	[2]	Housing	STABILIZER VALVE
6.	AU41885	[1]	Housing	CROWD VALVE
7.	AU41883	[1]	Housing	BUCKET VALVE
8.	W11402	[1]	Orifice	.0785", (SUB FOR U41476)
9.	U41477	[1]	Orifice	.1130"
10.	AT34643	[1]	Housing	SWING VALVE, (SUB FOR AU41886)
11.	AT35260	[1]	Housing	BOOM VALVE, (SUB FOR AU41884, THIS APPLICATION)
12.	U41166	[1]	Orifice	.1800" (USE WITH AU41884 BOOM VALVE)
12.	T36283	[1]	Orifice	.2340" (USE WITH AT35260, BOOM VALVE)
13.	U41173	[5]	Cap Screw	5/16" X 12-3/4"
14.	12H303	[5]	Lock Washer	5/16"
15.	U41160	[1]	End Plate
...	AU40972	[1]	O-Ring Kit	REPAIR SECTION ASSEMBLY
...	AU42191	[1]	Kit	REPAIR INDIVIDUAL VALVE
...	AT59144	[1]	Control Valve	REMANUFACTURED, (SUB FOR AU41880)
