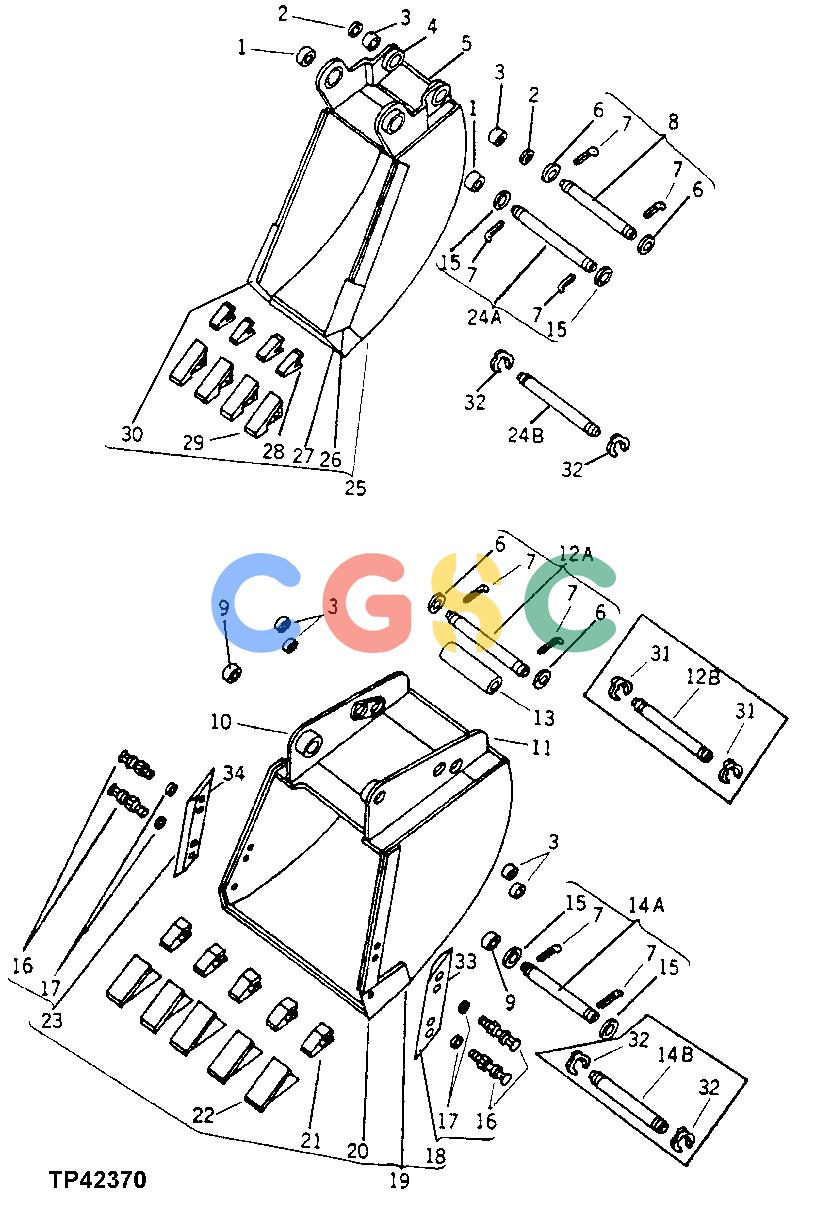

约翰迪尔零件查询92 - BACKHOE STANDARD BUCKETS (WITH STRAIGHT PIVOT PLATES) [B19]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 288 次

Pos.	Part No	Qty	Parts name	Comments
1.	U11121	[2]	Bushing
2.	24H1492	[1]	Washer	1-17/64" X 2-3/8" X 0.194"
3.	U10699	[2]	Bushing	(2 USED ON 12"-14") (4 USED ON 16"-38")
4.	........	[1]	Plate	L.H. WITH BUSHINGS ( AU10689 USE IF AVAILABLE)
5.	........	[1]	Plate	R.H. WITH BUSHINGS ( AU10688 USE IF AVAILABLE)
6.	U11651	[4]	Washer
7.	11H221	[8]	Cotter Pin	3/8" X 2-1/2"
8.	AU11362	[1]	Pin Fastener	CONTROL LINK TO BUCKET
9.	Y1951CU	[2]	Bushing	DIPPER PIVOT
10.	........	[1]	Plate	L.H. WITH BUSHINGS ( AU10389 USE IF AVAILABLE)
11.	........	[1]	Plate	R.H. WITH BUSHINGS ( AU10388 USE IF AVAILABLE)
12A.	AU11365	[1]	Pin Fastener	CONTROL LINK TO BUCKET
12B.	T59462	[1]	Pin Fastener	CONTROL, LINK TO BUCKET, (SUB AU11365)
13.	28H2239	[1]	Spacer	1-1/5 X 7"
14A.	AU11366	[1]	Pin Fastener
14B.	T59458	[1]	Pin Fastener	(SUB AU11366)
15.	U11649	[4]	Washer
16.	03H1439	[6]	Bolt	1/2" X 1-3/4"
16.	12H301	[6]	Lock Washer	1/2"
16.	14H826	[6]	Nut	1/2"
17.	24H1162	[6]	Washer	17/32" X 1-1/4" X 0.060"
18.	........	[1]	Cutting Edge	R.H. ( AU12224 NO LONGER AVAILABLE)
19.	BU10396	[1]	Backhoe Bucket	16" COMPLETE WITH BUSHINGS
19.	........	[1]	Backhoe Bucket	(A) ( BU10397 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
19.	........	[1]	Backhoe Bucket	(A) ( BU10399 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
19.	BU10400	[1]	Backhoe Bucket	(A) 30" COMPLETE WITH BUSHINGS, (SUB AT37731)
19.	BU10401	[1]	Backhoe Bucket	36" COMPLETE WITH BUSHINGS (CEMETERY SPECIAL)
20.	U13954	[1]	Cutting Edge	FRONT, FOR 16" BUCKET
20.	U13926	[1]	Cutting Edge	FRONT, FOR 18" BUCKET
20.	U16426	[1]	Cutting Edge	FRONT, FOR 20" BUCKET, (SUB FOR U13955)
20.	U13917	[1]	Cutting Edge	FRONT, FOR 24" BUCKET
20.	U13956	[1]	Cutting Edge	FRONT, FOR 30" BUCKET
20.	U13957	[1]	"DURA-MAX" CUTTING EDGE	FRONT, FOR 36" BUCKET
20.	U13958	[1]	Cutting Edge	FRONT FOR 38" BUCKET
21.	U14436	[1]	Shank
22.	U14437	[1]	Point	TIP
23.	........	[1]	Cutting Edge	L.H. ( AU12225 NO LONGER AVAILABLE)
24A.	AU13556	[1]	Pin Fastener	(SUB FOR AU11364)
24B.	T61038	[1]	Pin Fastener	(SUB AU13556)
25.	BU10103	[1]	Backhoe Bucket	12" COMPLETE (INCLUDES PINS AND BUSHINGS)
26.	U11116	[1]	Cutting Edge	SIDE-CUTTING, R.H.
27.	U11127	[1]	Cutting Edge	FRONT-CUTTING, FOR 12" BUCKET
27.	U11133	[1]	Cutting Edge	FRONT-CUTTING, FOR 14" BUCKET
28.	T716X2A	[1]	Bucket Tooth Adapter	(SUB FOR U10580)
29.	U10577	[1]	Point	TIP
30.	U11117	[1]	Cutting Edge	SIDE-CUTTING, L.H.
31.	T59447	[2]	Snap Ring
32.	T59452	[4]	Snap Ring
33.	U13952	[1]	Cutting Edge	R.H.
34.	U13953	[1]	Cutting Edge	L.H.
