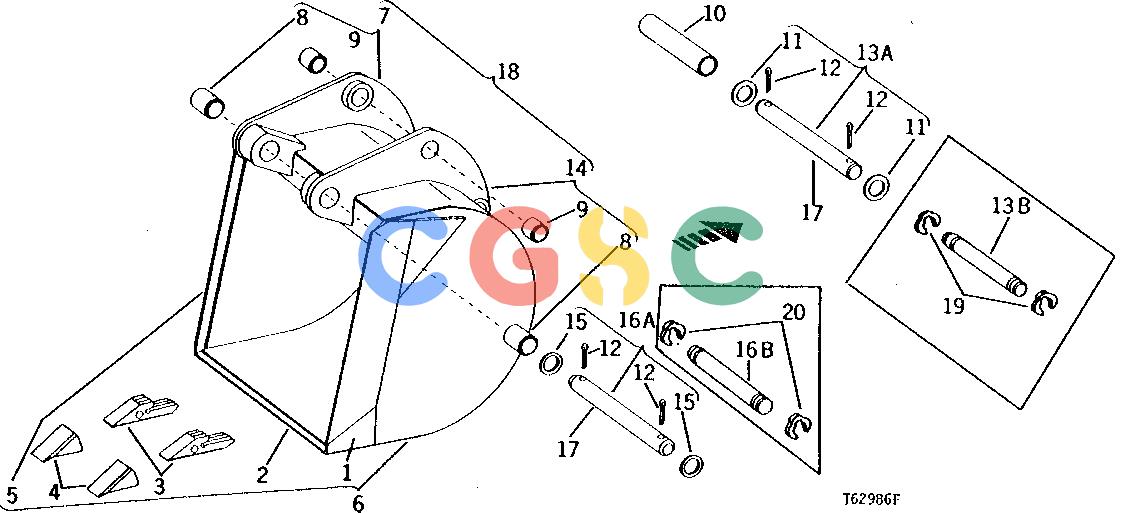

Pos.	Part No	Qty	Parts name	Comments
1.	U42744	[1]	Cutting Edge	SIDE, R.H.
2.	U42753	[1]	Cutting Edge	FRONT, FOR 18" BUCKET
2.	U42752	[1]	Cutting Edge	FRONT, FOR 24" BUCKET
2.	U42754	[1]	Cutting Edge	FRONT, FOR 30" BUCKET
2.	U42755	[1]	Cutting Edge	FRONT, FOR 36" BUCKET
3.	U14436	[4]	Shank	(4 USED WITH 18" AND 24" BUCKETS, 5 USED WITH 30" BUCKET, 6 USED WITH 36" BUCKET)
4.	U14437	[4]	Point	TIP (4 USED WITH 18" AND 24" BUCKETS, 5 USED WITH 30" BUCKET, 6 USED WITH 36" BUCKET)
5.	U42745	[1]	Cutting Edge	SIDE, L.H.
6.	........	[1]	Backhoe Bucket	18" ( AT37729 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) (SUB FOR BU40376)
6.	........	[1]	Backhoe Bucket	24" ( AT37730 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) (SUB FOR BU40377)
6.	........	[1]	Backhoe Bucket	30" ( AT37731 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) (SUB FOR BU40378)
6.	........	[1]	Backhoe Bucket	36" ( AT37732 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) (SUB FOR BU40379)
7.	AU41837	[1]	Plate	L.H. (INCLUDES BUSHINGS) (SUB AT36087)
8.	U42738	[2]	Bushing
9.	U42737	[4]	Bushing
10.	28H2239	[1]	Spacer	1-1/4" X 7"
11.	U11651	[2]	Washer
12.	11H221	[4]	Cotter Pin	3/8" X 2-1/2"
13A.	AU42426	[1]	Pin Fastener	ASSEMBLY, COUPLER LINKS TO BUCKET
13B.	T59459	[1]	Pin Fastener	(SUB AU42426)
14.	........	[1]	Plate	L.H. (INCLUDES BUSHINGS) ( AU41836 NO LONGER AVAILABLE) (SUB AT36087)
15.	U11649	[2]	Washer
16A.	AU42334	[1]	Pin Fastener	ASSEMBLY
16B.	T59451	[1]	Pin Fastener	(SUB AU42334)
17.	........	[1]	Pin	(SUB FOR BU40403) (PKG. OF 2 PINS) (NO LONGER FURNISHED)
18.	AT36087	[1]	Plate
19.	T59447	[2]	Snap Ring
20.	T59452	[2]	Snap Ring
