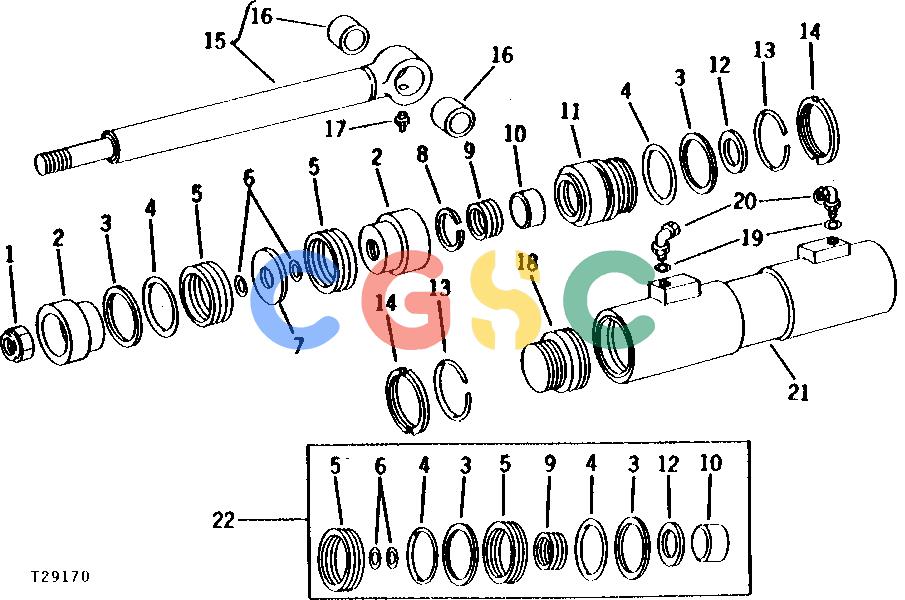

约翰迪尔零件查询92 - BACKHOE SWING CYLINDER [C03]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
U13572
|
[1] |
Lock Nut
|
|
| 2. |
U40041
|
[2] |
Piston
|
|
| 3. |
R78993
|
[2] |
Back-Up Ring
|
|
| 4. |
U10776
|
[2] |
O-Ring
|
|
| 5. |
T38193
|
[2] |
Packing
|
|
| 6. |
A3606R
|
[2] |
O-Ring
|
|
| 7. |
U40411
|
[1] |
Washer
|
|
| 8. |
U14128
|
[1] |
Snap Ring
|
|
| 9. |
T36998
|
[1] |
Packing
|
|
| 10. |
U41823
|
[1] |
Wear Ring
|
|
| 11. |
U41897
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 12. |
U11019
|
[1] |
Seal
|
|
| 13. |
U40417
|
[1] |
Snap Ring
|
|
| 14. |
U10769
|
[2] |
Nut
|
|
| 15. |
AU40267
|
[1] |
Rod
|
|
| 16. |
U40308
|
[2] |
Bushing
|
|
| 17. |
JD7797
|
[1] |
Lubrication Fitting
|
|
| 18. |
U40415
|
[1] |
Cylinder Head
|
|
| 19. |
R26448
|
[2] |
O-Ring
|
|
| 20. |
AU11669
|
[2] |
Elbow Fitting
|
|
| 21. |
AU40268
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 22. |
AR99790
|
[1] |
Kit
|
|
| ... |
AU40237
|
[1] |
Hydraulic Cylinder
|
|
