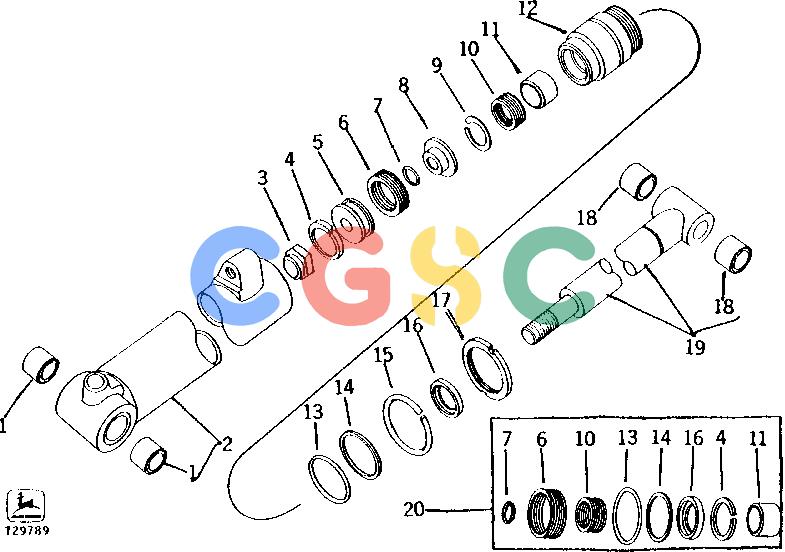

约翰迪尔零件查询92 - BACKHOE STABILIZER CYLINDER [C04]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
512 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
U11013
|
[2] |
Bushing
|
|
| 2. |
AU40410
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 3. |
U13572
|
[1] |
Lock Nut
|
|
| 4. |
U17217
|
[1] |
Wear Ring
|
|
| 5. |
U17349
|
[1] |
Piston
|
|
| 6. |
T38193
|
[1] |
Packing
|
|
| 7. |
A3606R
|
[1] |
O-Ring
|
|
| 8. |
U17345
|
[1] |
Piston
|
|
| 9. |
U14128
|
[1] |
Snap Ring
|
|
| 10. |
T36998
|
[1] |
Packing
|
|
| 11. |
U41823
|
[1] |
Wear Ring
|
|
| 12. |
U41897
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 13. |
U10776
|
[1] |
O-Ring
|
|
| 14. |
R78993
|
[1] |
Back-Up Ring
|
|
| 15. |
U10775
|
[1] |
Snap Ring
|
|
| 16. |
U11019
|
[1] |
Seal
|
|
| 17. |
U10769
|
[1] |
Nut
|
|
| 18. |
U15925
|
[2] |
Bushing
|
|
| 19. |
AU40413
|
[1] |
Rod
|
|
| 20. |
AR96518
|
[1] |
Kit
|
|
| ... |
AU40414
|
[2] |
Hydraulic Cylinder
|
|
