约翰迪尔零件查询92 - BACKHOE CROWD CYLINDER FOR 12-FOOT BACKHOE [C08]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 728 次

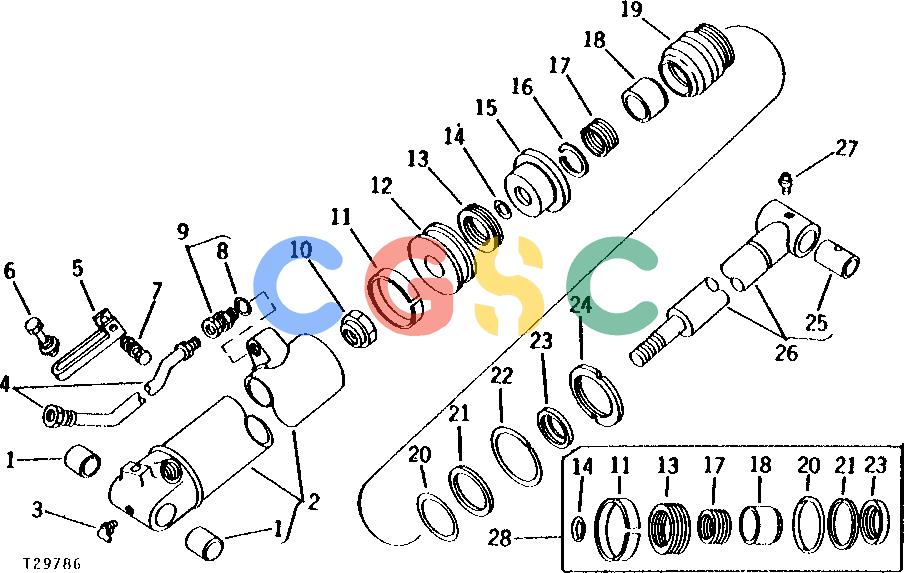

Pos.	Part No	Qty	Parts name	Comments
1.	U10666	[2]	Bushing	(SUB FOR U40431)
2.	AU40498	[1]	Hydraulic Cylinder Barrel	AND HEAD
3.	JD7788	[1]	Lubrication Fitting	GREASE, 45°, 1/4"
4.	AU40492	[1]	Tube
5.	U40179	[1]	Bracket
6.	19H3239	[1]	Cap Screw	3/8" X 1-1/4"
6.	12H304	[1]	Lock Washer	3/8"
6.	24H1305	[1]	Washer	13/32" X 13/16" X 0.065"
7.	19H3552	[1]	Cap Screw	5/16" X 1-1/2"
7.	12H303	[1]	Lock Washer	5/16"
7.	14H785	[1]	Nut	5/16"
8.	R26906	[1]	O-Ring
9.	AU11753	[1]	Union Fitting	STRAIGHT
10.	L2235CU	[1]	Lock Nut
11.	U17217	[1]	Wear Ring
12.	U17216	[1]	Piston
13.	T38193	[1]	Packing	(SUB FOR U12967, THIS APPLICATION) (SUB FOR R72827)
14.	R29463	[1]	O-Ring
15.	U17219	[1]	Piston
16.	U14128	[1]	Snap Ring
17.	T36998	[1]	Packing
18.	U41823	[1]	Wear Ring
19.	U41897	[1]	Hydr. Cylinder Rod Guide	(ALSO ORDER U41823) (SUB FOR AU41439, U12971 AND U41124)
20.	U10776	[1]	O-Ring
21.	R78993	[1]	Back-Up Ring	(SUB FOR U10777, THIS APPLICATION)
22.	U40417	[1]	Snap Ring
23.	U11019	[1]	Seal
24.	U10769	[1]	Nut
25.	U40150	[2]	Bushing	(SUB FOR U40741)
26.	AU40496	[1]	Rod
27.	JD7759	[1]	Lubrication Fitting	GREASE, STRAIGHT, 1/8"
28.	AR96518	[1]	Kit	REPAIR CYLINDER, (SUB FOR AU14260, AU41405, AT36836 AND AT52703)
...	AU40493	[1]	Hydraulic Cylinder	CROWD, COMPLETE (LESS RETURN TUBE, BRACKET, AND HARDWARE)
