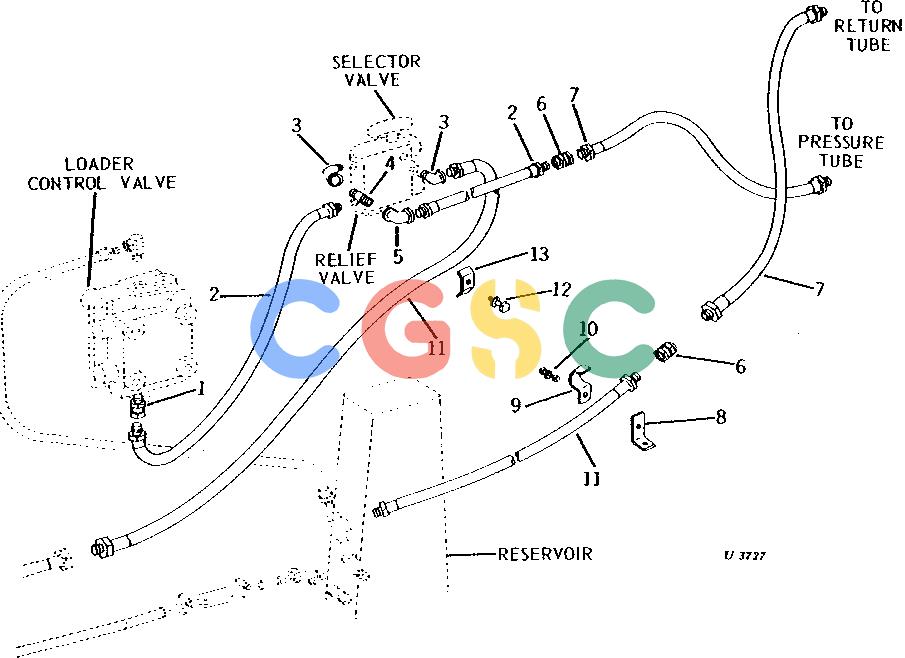

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | JD140 | [1] | Adapter | STRAIGHT |
| 2. | AU11775 | [2] | Hydraulic Hose - Fabricate | 3/4" X 50" |
| 3. | U30411 | [2] | Elbow Fitting | 90° |
| 4. | 29H574 | [1] | Threaded Nipple | 3/4" X 2-3/4" |
| 5. | U11277 | [1] | Elbow Fitting | 3/4" X 90° |
| 6. | JD149 | [2] | Adapter | STRAIGHT, 3/4" |
| 7. | AU11787 | [2] | Hydraulic Hose | 3/4" X 24" |
| 8. | U11480 | [1] | Bracket | |
| 9. | U13667 | [1] | Clamp | |
| 10. | 19H3239 | [1] | Cap Screw | 3/8" X 1-1/4" |
| 10. | 12H304 | [1] | Lock Washer | 3/8" |
| 10. | 14H812 | [1] | Nut | 3/8" |
| 11. | L2297CU | [2] | Hydraulic Hose | |
| 12. | 19H1732 | [1] | Cap Screw | 3/8" X 1-1/4" |
| 12. | 12H304 | [1] | Lock Washer | 3/8" |
| 13. | ........ | [1] | Clamp | (U13061 USE IF AVAILABLE) |
