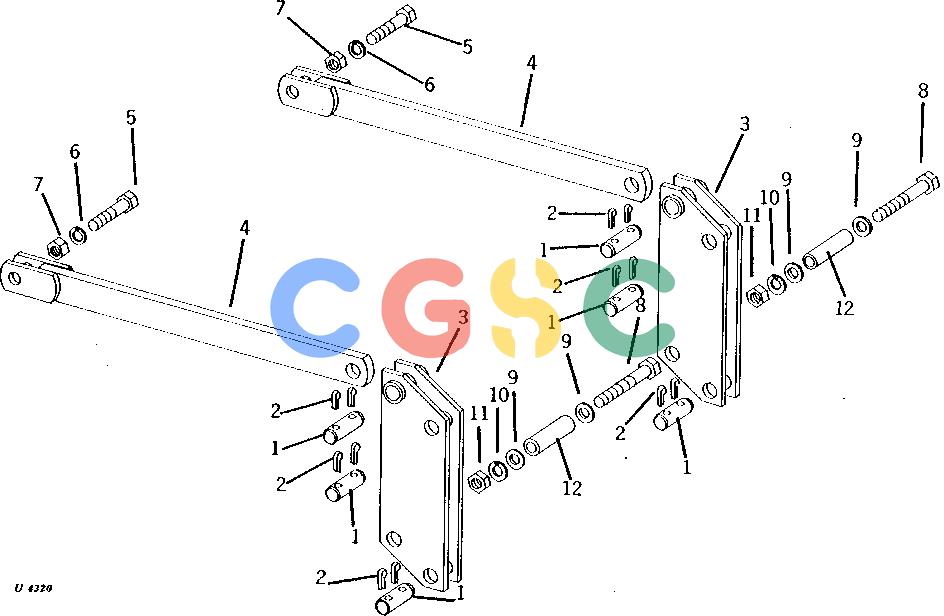

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | U13380 | [6] | Pin Fastener | |
| 2. | 11H221 | [12] | Cotter Pin | 3/8" X 2-1/2" |
| 3. | AU40214 | [2] | Frame | |
| 4. | AU40213 | [2] | Tie Bar | |
| 5. | 08H4042 | [2] | Cap Screw | 1-1/4" X 4" |
| 6. | 12H235 | [1] | Lock Washer | 1-1/4" |
| 7. | 14H824 | [1] | Nut | 1-1/4" |
| 8. | 19H2101 | [2] | Cap Screw | 1" X 6" |
| 9. | 24H1138 | [4] | Washer | 1-1/16" X 2" X 0.134" |
| 10. | 12H234 | [2] | Lock Washer | 1" |
| 11. | 14H1048 | [2] | Nut | 1" |
| 12. | U10871 | [2] | Bushing |
