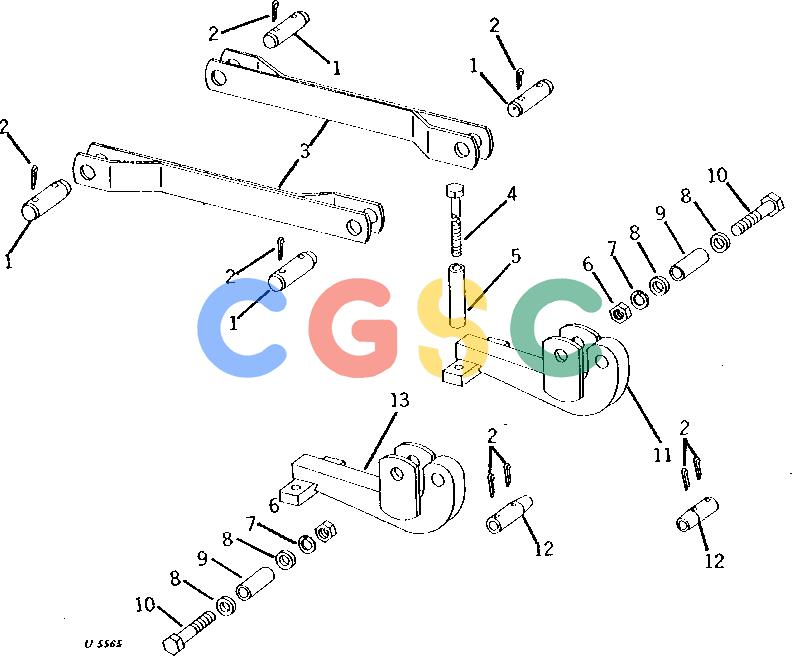

约翰迪尔零件查询9250 - BACKHOE TIE BARS AND MOUNTING PARTS (JD300, JD400, JD401-A) [C16]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
978 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
U13380
|
[4] |
Pin Fastener
|
|
| 1. |
U41337
|
[4] |
Pin
|
|
| 2. |
11H221
|
[8] |
Cotter Pin
|
|
| 3. |
AU40716
|
[2] |
Tie Bar
|
|
| 3. |
AU40869
|
[2] |
Tie Bar
|
|
| 4. |
08H4322
|
[4] |
Cap Screw
|
|
| 5. |
U41338
|
[4] |
Bushing
|
|
| 6. |
14H794
|
[2] |
Nut
|
|
| 7. |
12H236
|
[2] |
Lock Washer
|
|
| 8. |
U10104
|
[4] |
Bushing
|
|
| 9. |
U16401
|
[2] |
Bushing
|
|
| 10. |
19H2826
|
[2] |
Cap Screw
|
|
| 11. |
AU40871
|
[1] |
Frame
|
|
| 12. |
U41526
|
[2] |
Pin
|
|
| 13. |
AU40870
|
[1] |
Frame
|
|
