约翰迪尔零件查询93 - BACKHOE VALVE MOUNTING BRACKET AND COVERS 93 BACKHOE (SERIAL NO. -005700) 95 BACKHOE (SERIAL NO. -EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 866 次

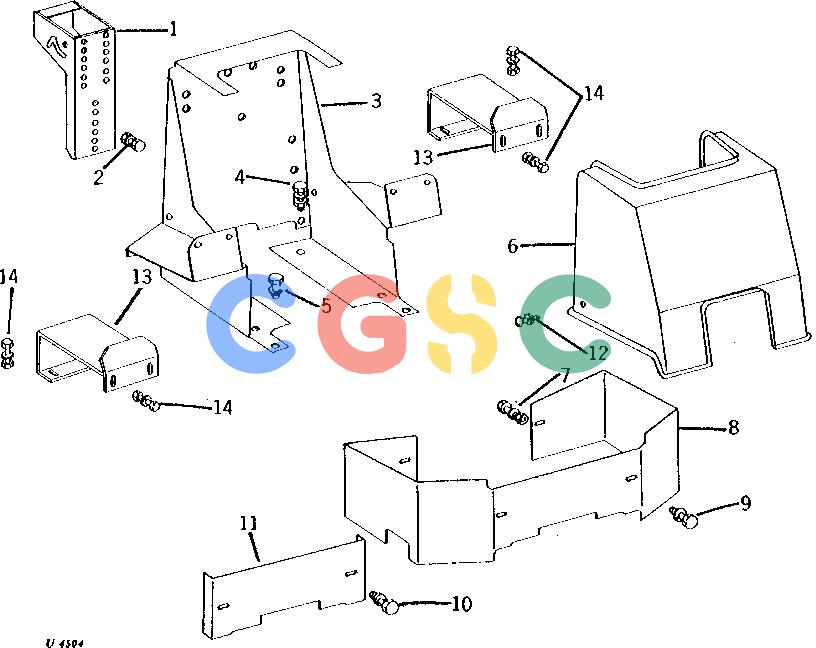

Pos.	Part No	Qty	Parts name	Comments
1.	AT78526	[1]	Support	SEAT, (SUB FOR AU13395, AU40294 AND AU41220)
2.	19H2676	[3]	Cap Screw	HS, SAE 8, 3/8" X 1"
2.	12H304	[3]	Lock Washer	3/8"
2.	14H812	[3]	Nut	3/8"
3.	........	[1]	Base	( AU13407 NO LONGER AVAILABLE)
4.	19H2993	[2]	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
4.	12H301	[2]	Lock Washer	1/2"
4.	14H1040	[2]	Nut	1/2", (SUB FOR 14H809)
5.	19H1833	[4]	Cap Screw	HS, SAE 8, 5/8" X 1-1/4"
5.	12H294	[4]	Lock Washer	5/8"
6.	U16054	[1]	Valve Cover	UPPER
7.	19H2705	[2]	Cap Screw	HS, SAE 8, 5/16" X 1"
7.	12H303	[2]	Lock Washer	5/16"
7.	14H785	[2]	Nut	5/16"
8.	........	[1]	Cover	LOWER (93 ONLY) ( U16053 NO LONGER AVAILABLE)
9.	19H2664	[2]	Cap Screw	HS, SAE 8, 5/16" X 3/4" (93 ONLY)
9.	12H303	[2]	Lock Washer	5/16"
10.	19H1813	[2]	Cap Screw
10.	12H303	[2]	Lock Washer	5/16"
11.	........	[1]	Valve Cover	LOWER (95 ONLY) ( U16153 NO LONGER AVAILABLE)
12.	21H1301	[2]	Screw	0.190" X 1/2"
12.	24H1287	[2]	Washer	9/32" X 5/8" X 0.065"
13.	........	[2]	Extension	FOOT REST (FOR USE WITH 1010 OR JD450 CRAWLER TRACTOR ONLY) ( AU13664 NO LONGER AVAILABLE)
14.	19H2676	[8]	Cap Screw	HS, SAE 8, 3/8" X 1"
14.	12H304	[8]	Lock Washer	3/8"
14.	24H1305	[8]	Washer	13/32" X 13/16" X 0.065"
14.	14H812	[8]	Nut	3/8"
