久保田零件查询K13000 MOWER REAR LINK RH TOP LINK/LOWER LINK/HITCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
532 次

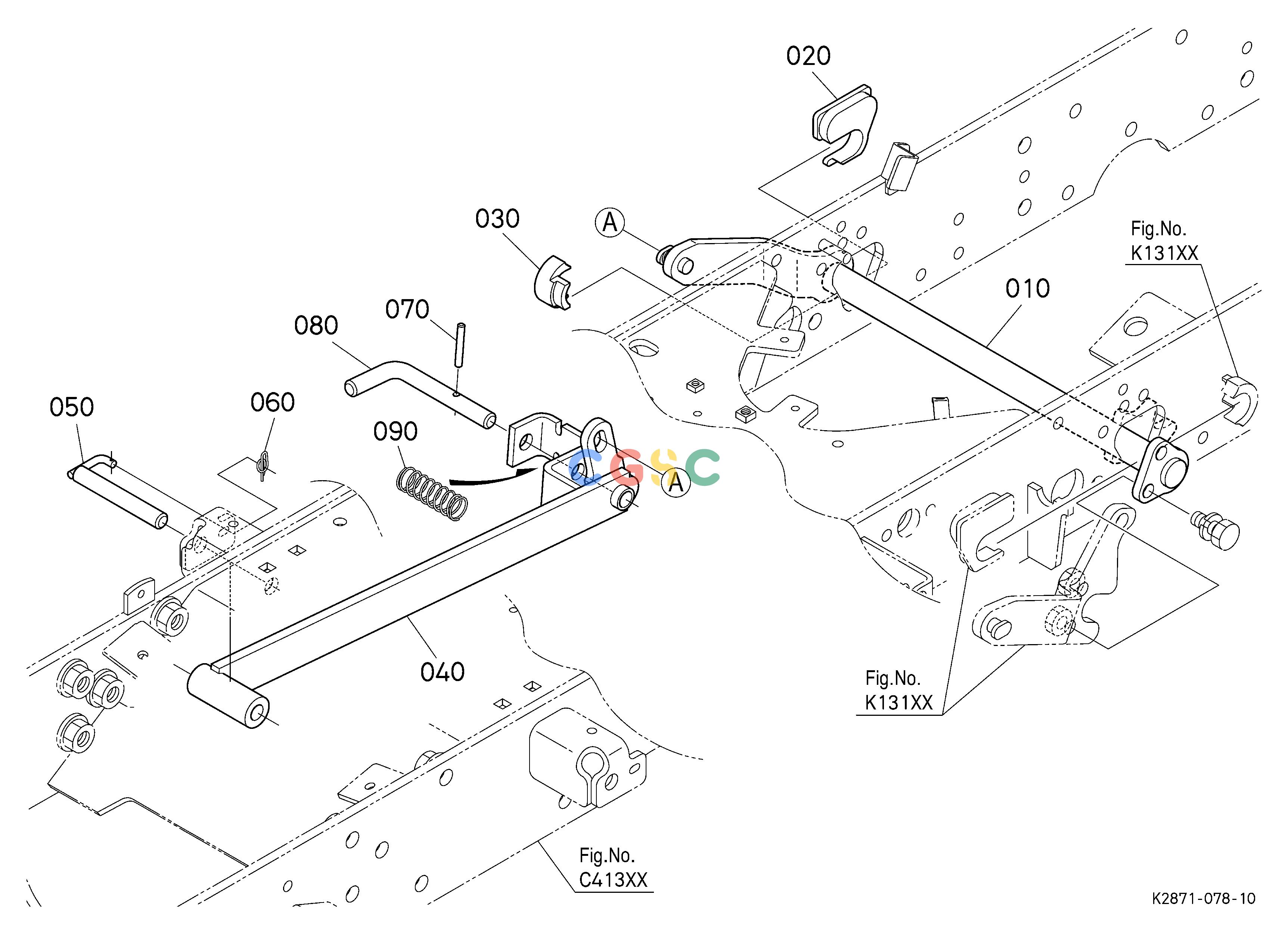

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K250144202
|
[1] |
LINK,REAR LIFT RH
|
0.0000(lbs); 0.000
|
| 020. |
K258144270
|
[1] |
BOSS,LIFT UPPER
|
0.0000(lbs); 0.000
|
| 030. |
K258144282
|
[1] |
BOSS,LIFT LOWER
|
0.1496(lbs); 0.068
|
| 040. |
K258144310
|
[1] |
LINK,REAR
|
5.1480(lbs); 2.340
|
| 050. |
K258144332
|
[1] |
ROD(MOWER LINK)
|
0.0000(lbs); 0.000
|
| 060. |
K121191112
|
[1] |
RUE RING COTTER
|
0.0022(lbs); 0.001
|
| 070. |
7559952532
|
[1] |
PIN,SPRING(7/32 1-5/8)
|
0.0110(lbs); 0.005
|
| 080. |
K277144650
|
[1] |
PIN(LIFT)
|
0.0000(lbs); 0.000
|
| 090. |
K565144672
|
[1] |
SPRING(PIN)
|
0.4620(lbs); 0.210
|
