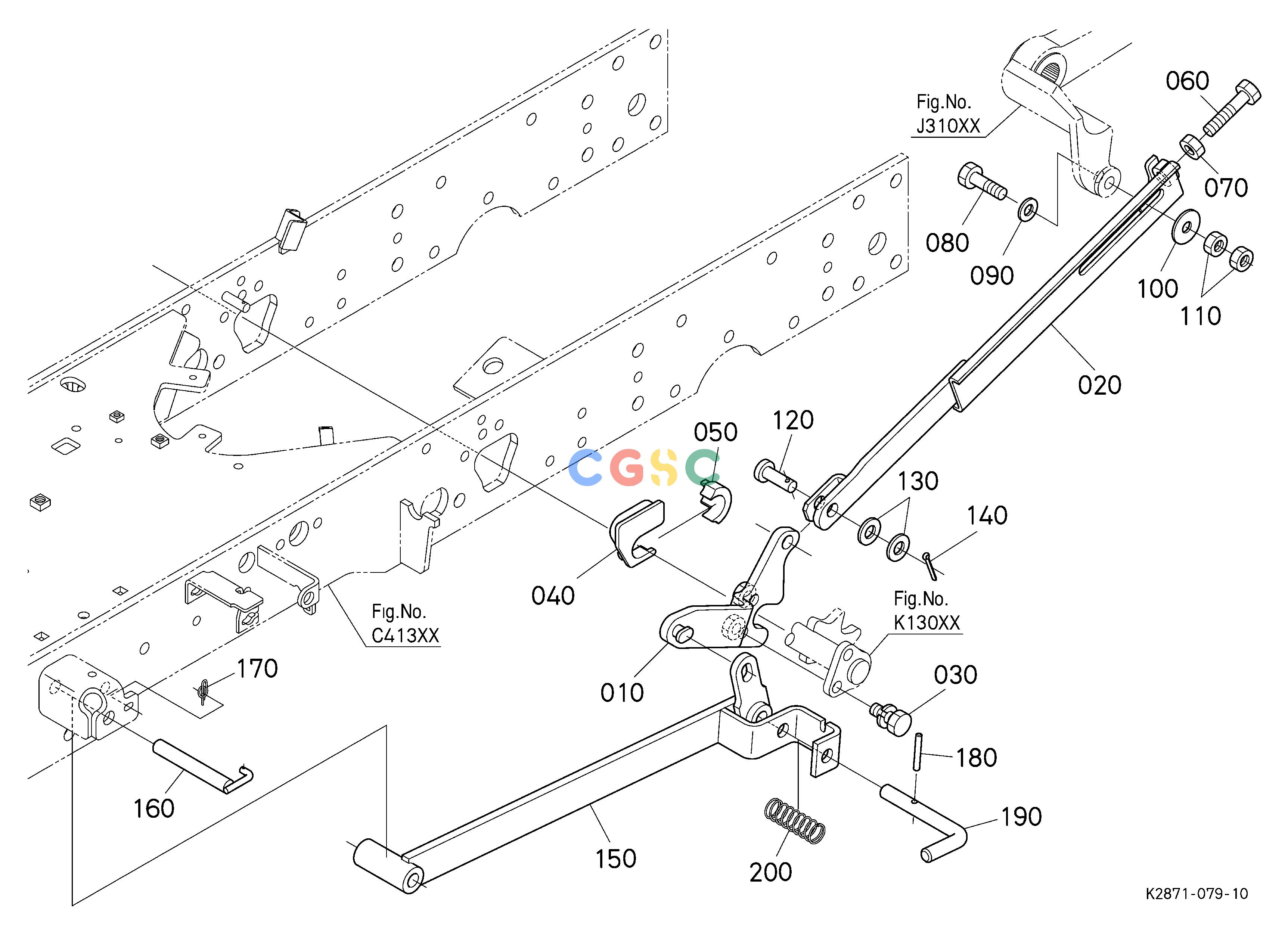

久保田零件查询K13100 MOWER REAR LINK LH TOP LINK/LOWER LINK/HITCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
645 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K277144212
|
[1] |
LINK(REAR LIFT LH)
|
0.0000(lbs); 0.000
|
| 020. |
K277144223
|
[1] |
ROD(LIFT)
|
0.0000(lbs); 0.000
|
| 030. |
0113351230
|
[2] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 040. |
K258144270
|
[1] |
BOSS,LIFT UPPER
|
0.0000(lbs); 0.000
|
| 050. |
K258144282
|
[1] |
BOSS,LIFT LOWER
|
0.1496(lbs); 0.068
|
| 060. |
0117551255
|
[1] |
HEX.BOLT
|
0.1232(lbs); 0.056
|
| 070. |
0217450120
|
[1] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 080. |
0117351240
|
[1] |
HEX.BOLT
|
0.0990(lbs); 0.045
|
| 090. |
0401350120
|
[1] |
WASHER,PLAIN
|
0.0154(lbs); 0.007
|
| 100. |
0401550120
|
[1] |
WASHER,PLAIN
|
0.0440(lbs); 0.020
|
| 110. |
0217250120
|
[2] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 120. |
0512251435
|
[1] |
PIN,JOINT
|
0.1100(lbs); 0.050
|
| 130. |
0401150140
|
[2] |
WASHER,PLAIN
|
0.0154(lbs); 0.007
|
| 140. |
0551150430
|
[1] |
PIN,SPLIT
|
0.0088(lbs); 0.004
|
| 150. |
K258144310
|
[1] |
LINK,REAR
|
5.1480(lbs); 2.340
|
| 160. |
K258144332
|
[1] |
ROD(MOWER LINK)
|
0.0000(lbs); 0.000
|
| 170. |
K121191112
|
[1] |
RUE RING COTTER
|
0.0022(lbs); 0.001
|
| 180. |
7559952532
|
[1] |
PIN,SPRING(7/32 1-5/8)
|
0.0110(lbs); 0.005
|
| 190. |
K277144650
|
[1] |
PIN(LIFT)
|
0.0000(lbs); 0.000
|
| 200. |
K565144672
|
[1] |
SPRING(PIN)
|
0.4620(lbs); 0.210
|
