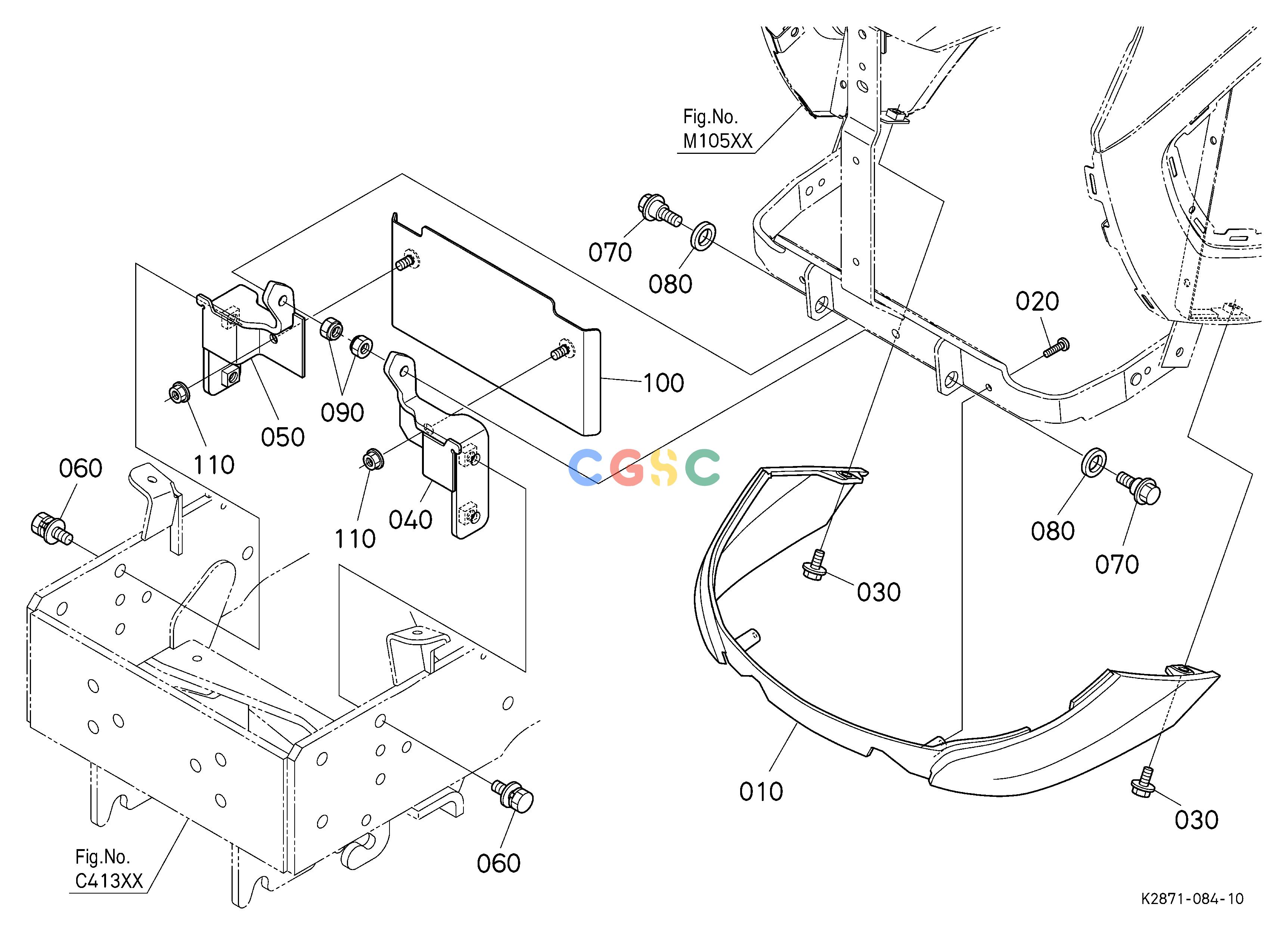

久保田零件查询M10600 BONNET UNDER HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
907 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K287154142
|
[1] |
BONNET(UNDER)
|
0.0000(lbs); 0.000
|
| 020. |
K125354513
|
[2] |
SCREW(TAPPING)
|
0.0110(lbs); 0.005
|
| 030. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 040. |
K287154210
|
[1] |
BRACKET(BONNET LH)
|
0.0000(lbs); 0.000
|
| 050. |
K287154220
|
[1] |
BRACKET(BONNET,RH)
|
0.0000(lbs); 0.000
|
| 060. |
0113551030
|
[4] |
BOLT,W SEMS
|
0.0440(lbs); 0.020
|
| 070. |
K287143280
|
[2] |
BOLT(SHOULDER)
|
0.0000(lbs); 0.000
|
| 080. |
K361554250
|
[2] |
CUSHION(BONNET)
|
0.0044(lbs); 0.002
|
| 080. |
K318154552
|
[2] |
CUSHION
|
0.0000(lbs); 0.000
|
| 090. |
0257250100
|
[2] |
NUT,LOCKING
|
0.0176(lbs); 0.008
|
| 100. |
K287154450
|
[1] |
COVER(FLYWHEEL)
|
0.0000(lbs); 0.000
|
| 110. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
