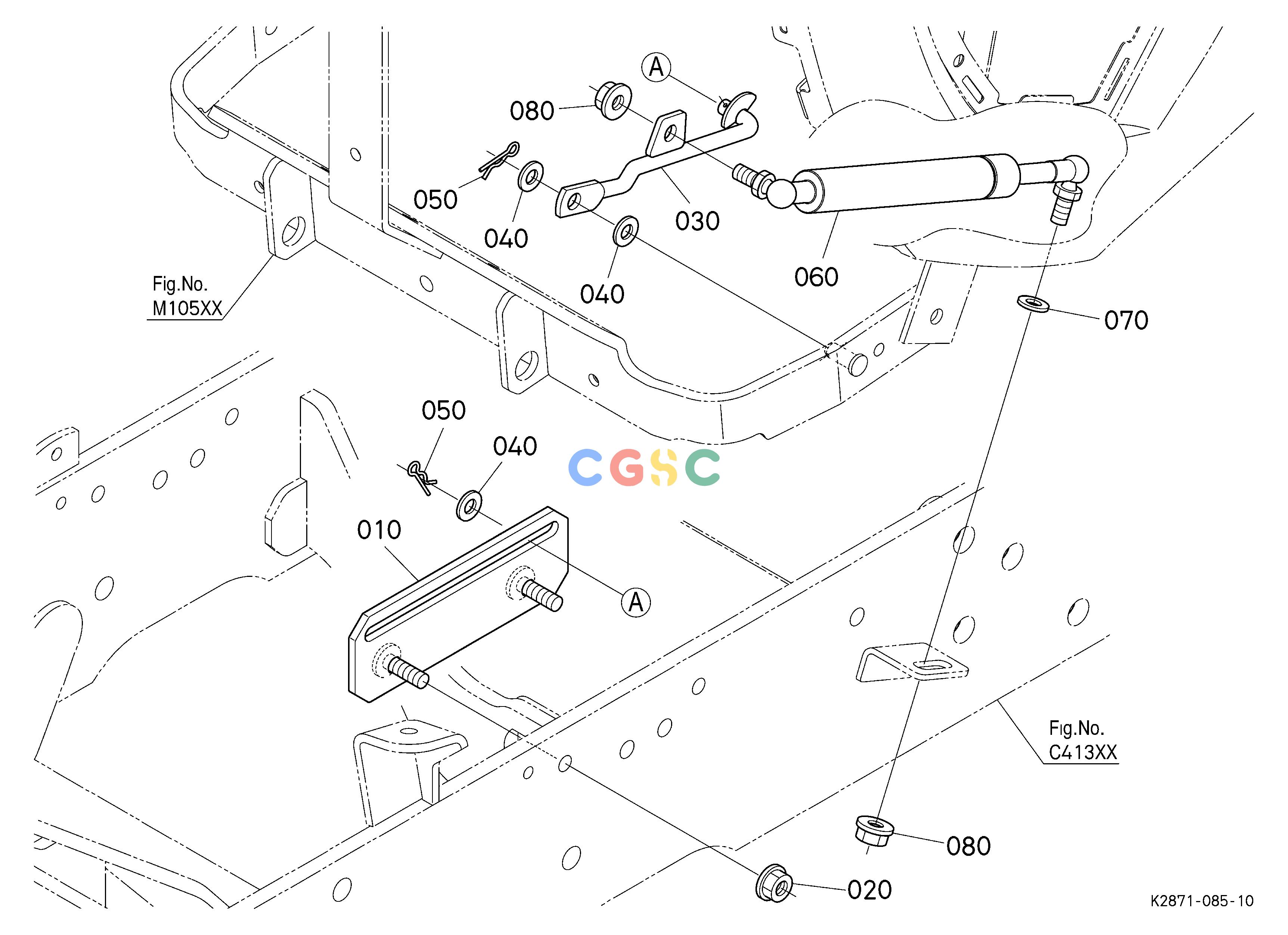

久保田零件查询M10700 BONNET OPEN HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K287154570
|
[1] |
PLATE(OPEN,GUIDE)
|
0.0000(lbs); 0.000
|
| 020. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 030. |
K287154580
|
[1] |
ROD(OPEN,GUIDE)
|
0.0000(lbs); 0.000
|
| 040. |
0401550080
|
[3] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 050. |
0552550800
|
[2] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 060. |
K287154270
|
[1] |
DAMPER(BONNET,OPEN)
|
0.0000(lbs); 0.000
|
| 070. |
0401350080
|
[1] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
