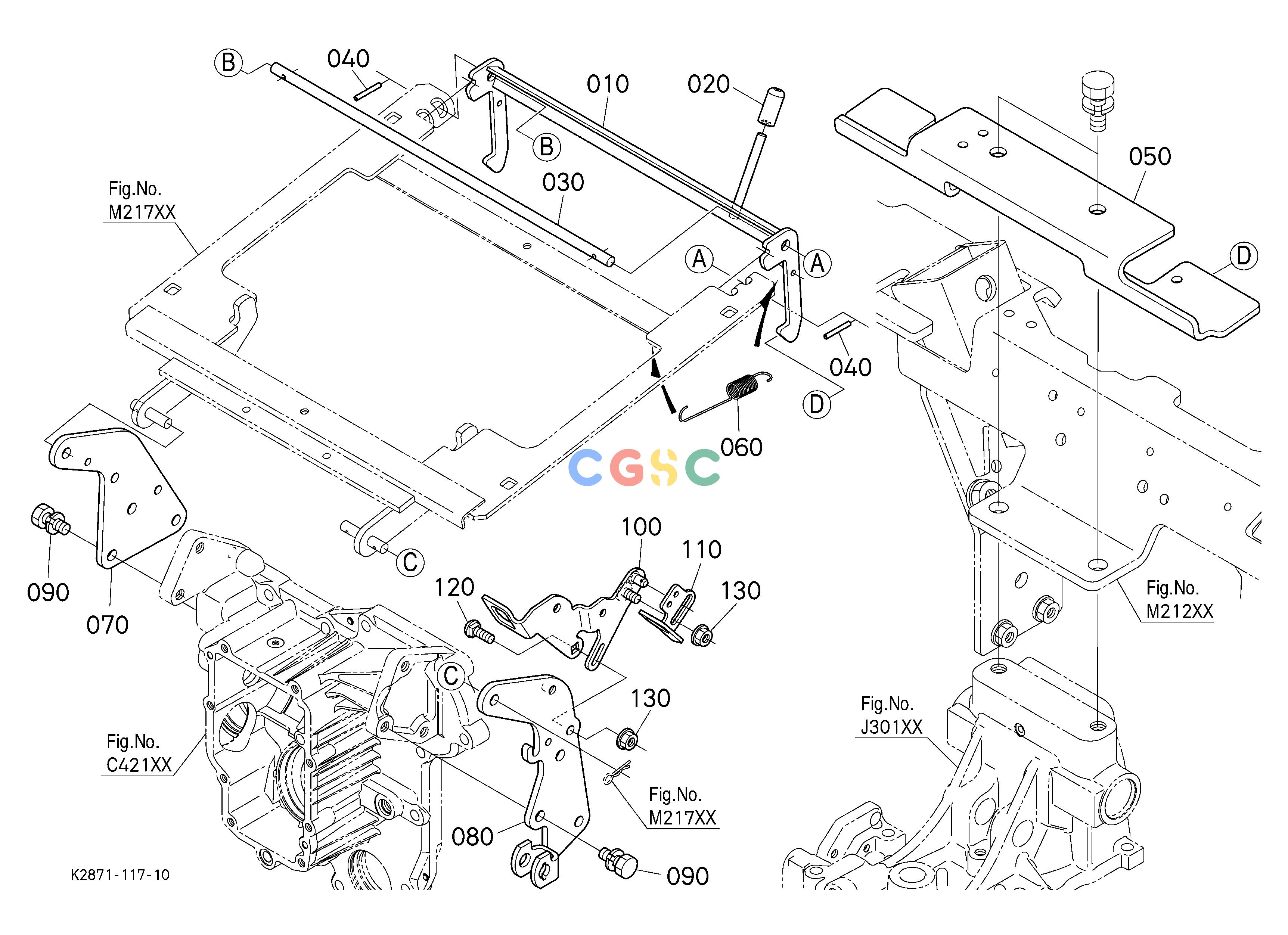

久保田零件查询M21600 SEAT LOCK HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K275156370
|
[1] |
HOOK(SEAT)
|
0.0000(lbs); 0.000
|
| 020. |
K121156140
|
[1] |
COVER,LEVER
|
0.0176(lbs); 0.008
|
| 030. |
K277156340
|
[1] |
PIN(SEAT)
|
0.5104(lbs); 0.232
|
| 040. |
0541100430
|
[2] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 050. |
K287156390
|
[1] |
STOPPER(SEAT)
|
0.0000(lbs); 0.000
|
| 060. |
K255156952
|
[1] |
SPRING(SEAT HOOK)
|
0.0176(lbs); 0.008
|
| 070. |
K287156720
|
[1] |
STAY(SEAT RAIL,FRONT,RH)
|
0.0000(lbs); 0.000
|
| 080. |
K258156732
|
[1] |
STAY,SEAT RAIL FRONT LH
|
0.0000(lbs); 0.000
|
| 090. |
0112351025
|
[6] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 100. |
K287142680
|
[1] |
STAY(SWITCH,PTO)
|
0.0000(lbs); 0.000
|
| 110. |
K287142690
|
[1] |
PLATE(STOPPER,SWITCH)
|
0.0000(lbs); 0.000
|
| 120. |
K112291320
|
[1] |
BOLT,SHORT SQU. NECK(M8 1.25)
|
0.0220(lbs); 0.010
|
| 130. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
