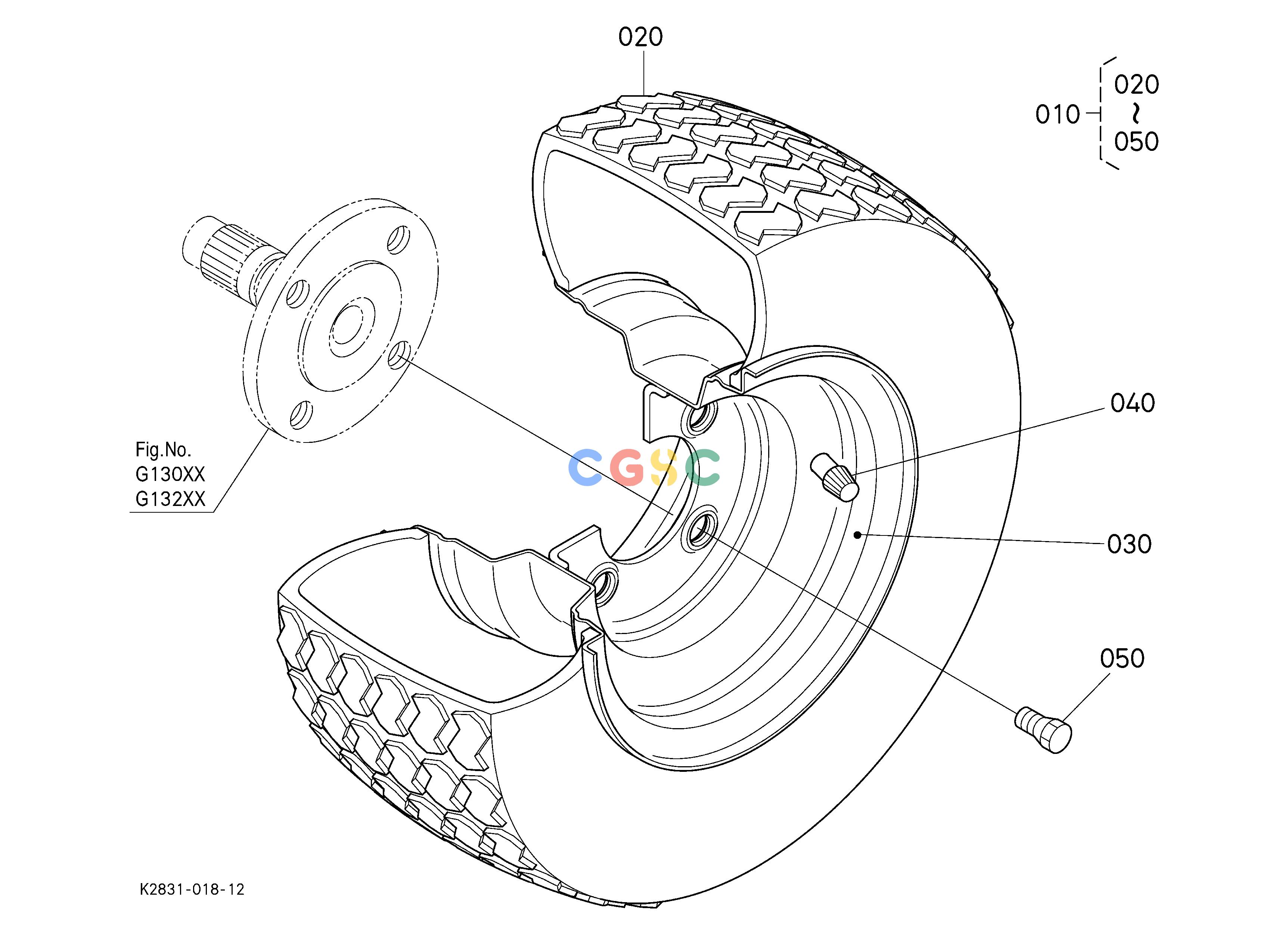

久保田零件查询R10101 FRONT WHEEL (16 7.5-8) FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K283118100
|
[2] |
TIRE,ASSY(T 16X7.5-8)
|
0.0000(lbs); 0.000
|
| 010. |
K283118200
|
[2] |
TIRE,ASSY(T16X7.5-8)
|
0.0000(lbs); 0.000
|
| 020. |
K283118140
|
[2] |
TIRE(T 16X7.50-8)
|
0.0000(lbs); 0.000
|
| 030. |
K283118180
|
[2] |
WHEEL(8X5.375)
|
0.0000(lbs); 0.000
|
| 030. |
K283118280
|
[2] |
WHEEL(8X5.22)
|
0.0000(lbs); 0.000
|
| 040. |
6612017190
|
[2] |
VALVE,TIRE
|
0.0264(lbs); 0.012
|
| 040. |
K321118170
|
[2] |
VALVE,AIR
|
0.0176(lbs); 0.008
|
| 050. |
K256118212
|
[8] |
BOLT(WHEEL,9/16)
|
0.1320(lbs); 0.060
|
